Product Description

1.1 Introduction

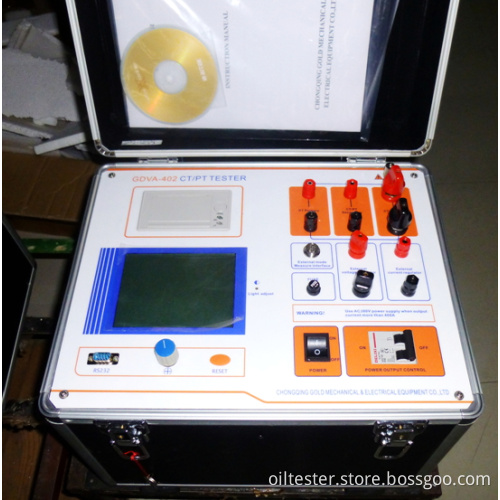

GDVA-402 CT/PT Tester is a special instrument for testing characteristic of CT and PT .The tester can finish CT/PT transformation ratio test, CT/PT polarity test, volt-ampere feature curve drawing and CT error drawing. It has large output, high precision,stable performance and automatic testing.

1.2 Funtion

1 CT/PT transformation ratio test

2 CT /PT polarity test

3 CT /PT volt-ampere feature curve measurement

4 CT ratio error measurement

5 Error curve measurement

6 Result print

7 Unload data to PC

8 PC online test

Related Products
GDVA-402V CT/PT Tester
GDVA-403 CT Tester
GDVA-404 CT/PT Tester

	Input voltage	Output scope		Measuring scope		Measuring degree
Device main engine	220V	0~600V,0~20A		0~600V,0~20A		0.5%
	380V	0~1000V,0~20A		0~1000V,0~20A		0.5%
	220V	0~600A		0~600A		Transformation ratio measuring precision 1%
External voltage raising machine	220V	0~1650V,0~3A		0~1650V,0~3A		0.5%
	380V	0~2000V,0~3A		0~2000V,0~3A		0.5%
External current raising machine	220V	0~1000A		0~1000A		Transformation ratio measuring precision 1%
External voltage adjustment machine				0~1000V,0~30A		0.5%
Device working power	AC 220V/380V 50HZ		External dimensions		420×330×320mm 3		Weight	24kg
