0~80kv Transformer Oil Breakdown Voltage Tester

0~80kv Transformer Oil Breakdown Voltage Tester

Get Latest Price

Payment Type:: L/C, T/T, Western Union

Incoterm:: FOB

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 10 Days

Transportation:: Ocean, Land, Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C,T/T,Western Union
Incoterm:	FOB
Transportation:	Ocean,Land,Air

Product Description

1.1General introduction

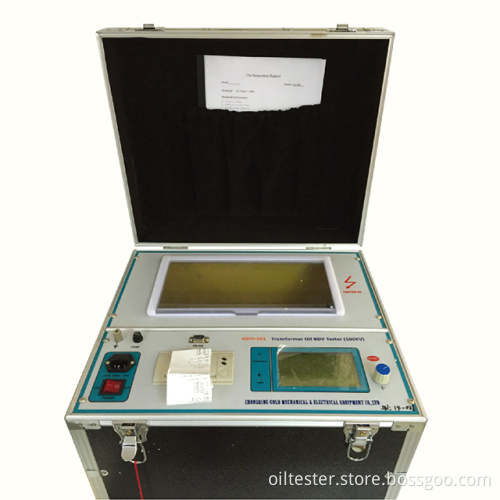

GDYJ-501 Transformer Oil breakdown voltageTester is developed according to the national standard GB-86 Insulating Oil Dielectric Strength Testing Method .LCD screen can display test procedure and test result. All the human interaction operations complete by the rotating mouse .It is very easy for customers to measure the breakdown voltage of all kinds of oil by GDYJ-501.
You can print the test result by the micro printer internal the tester. Of course, you can upload the test data to PC from RS232 for data analyzing. The special circuit design makes the tester has a good performance at stability and anti-noise.

1.2 Functions

1 Breakdown test of user-defined

2 Proof test

3 Calibration interface for customers

4 Unloading data to PC and making word report automatically.

5 Result print

1.3Technique index

1 Rated power supply: AC 220V±10% 50/60Hz

2 Output voltage:AC 0~80KV

3 Rate of voltage rise: 2KV/s±10%

4 Measuring precision: 3 class

5 Times: 1-9
