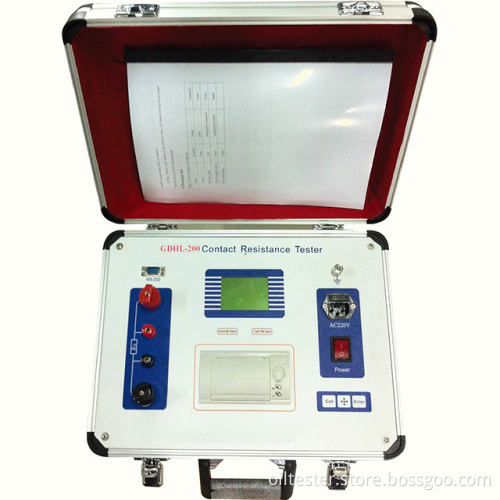

200A Circuit Breaker Contact Resistance Tester
- Payment Type:
- L/C, T/T, Western Union
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 10 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | L/C,T/T,Western Union |
|---|---|
| Incoterm: | FOB |
| Transportation: | Ocean,Land,Air |
Application
- High,middle and low voltage circuit breakers
- High,middle and low voltage disconnecting switches
- High-current bus bar joints
- Cable&Welding joints
It is suitable for high current, micro ohm measurement.
- Output high-current continuously.
- Four fixed current output, 25A,50A,100A,200A.The value can be customized before placing order.
- Two test modes: Routine test and Switch Resistance Test.
- Test time can be user-defined.
- High speed thermal printer.
- User-friendly. Resistance, current, voltage, time, status and notes can be displayed. Safety and high intelligence.
- Data storage and history data browsing functions, 256 sets of data can be saved.
- The number of test sample and operator can be set, easy to classify the test results.
- History data and switch resistance value can be inquired.
- Large measuring range, up to 80m ohm.
- Ambient and internal temperature can be displayed to protect the instrument.
- Standard resistance value is set, to calculate the error and compare the test resistance value with standard value.
- RS232 interface.(Optional)
- Portable design, easy to carry.
- Input voltage: AC220V±10%,50HZ ± 2%
- Working temperature: -10~+50℃
- Storage temperature: -20℃~70℃
- Relative Humidity: ≤85%RH
- Cooling by air
- Ingress Protection Rating: IP67
- Insulation performance:>20M ohm to ground
- Overall dimension: 365*165*310mm, weight: 8kg(exclude cables bag)
|
GDHL-200 |
||||
|
Current (A) |
Measuring range |
Accuracy |
Max.resolution |
|
|
25 |
0.01u ohm-80m ohm |
0.01u ohm-49.99u ohm |
1.0%RD+0.2%FS |
0.01u ohm |
|
50.00u ohm-7.999m ohm |
0.5%RD+0.1%FS |
0.01u ohm |
||
|
8.000m ohm-80m ohm |
1.0%RD+0.2%FS |
10u ohm |
||
|
50 |
0.01u ohm-40m ohm |
0.01u ohm-4.99u ohm |
1.0%RD+0.2%FS |
0.01u ohm |
|
5.00u ohm-3.999m ohm |
0.5%RD+0.1%FS |
0.01u ohm |
||
|
4.000m ohm-40m ohm |
1.0%RD+0.2%FS |
1u ohm |
||
|
100 |
0.01u ohm-20m ohm |
0.01u ohm-1.999m ohm |
0.5%RD+0.1%FS |
0.01u ohm |
|
2.000m ohm-20m ohm |
1.0%RD+0.2%FS |
1u ohm |
||
|
200 |
0.01u ohm-10m ohm |
0.01u ohm-999.99u ohm |
0.5%RD+0.1%FS |
0.01u ohm |
|
1.000m ohm-10m ohm |
1.0%RD+0.2%FS |
1u ohm |
||
