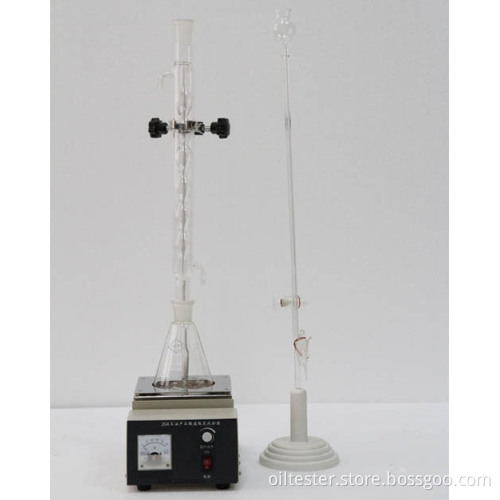

Manual Type Low Price Oil Acid Value Tester Device

Summary
GD-264 Photometric TAN Tester is designed and made as per the National Standard of People`s Republic of China GB/T264 Test Method for Acid Number of Petroleum Products and GB/T258 Test Method for Acidity of Gasoline, Kerosene and Diesel Oil.

GD-264 Photometric TAN Tester is suitable to determine acidity of gasoline, kerosene and diesel oil without any ethyl liquids, and the acid number of petroleum products. The test method uses ethanol to extract acid component in the sample and then titrates it using alkali solution.
GD-264 Photometric TAN Tester is also suitable to determine acid number of transformer oil and turbine oil as per the National Standard of People`s Republic of China GB/T7599 Test Method for Acid Number of Transformer Oil, Turbine Oil in Service.

I. Main technical features
The instrument is fully designed as the requirements of GB/T264,GB/T258
It adopts electric furnace to heat.Heating power is stepless adjustable from 100W~1000W.
Small design and stainless steel electric furnace table.Easy to install and operate.
II. Main technical specifications and parameters
1. Power supply: AC 220 V±10%, 50 Hz;
2. Power range of heater: 100 W~1000 W, stepless adjustment.
3. Precision of titration tube: scale division is 0.02 ml
4. Ambient temperature: ≤35 °C
5. Relative humidity: ≤85%
6. Total Power consumption: ≤1200 W
