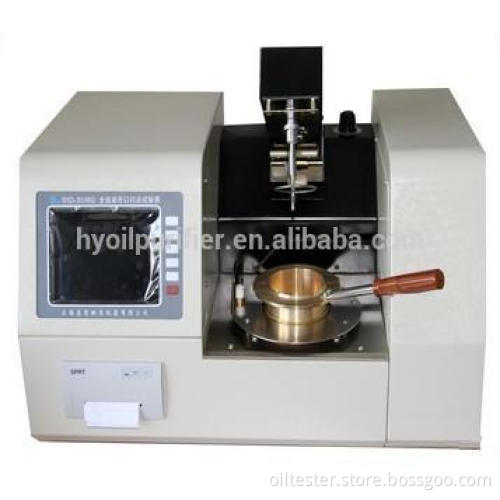

Cleveland Open Cup Flash Point and Fire Point Test Equipment

Cleveland Open Cup Flash Point and Fire Point Test Equipment

Get Latest Price

Payment Type:: L/C, T/T, Western Union

Incoterm:: FOB

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 10 Days

Transportation:: Ocean, Land, Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C,T/T,Western Union
Incoterm:	FOB
Transportation:	Ocean,Land,Air

Product Description

Characteistics:

The falsh point instrument is automatic with programmble temprature controlling function.
Its test arm can be raised up and lowered down automatically.
It can be used to mak determinatin for flsh point and fire point.
The instrument can automaticall control the measuement procedures,and make anlysis to the test data,save &print out the test data.
Show data on the colored LCD screen.
It can meet the requirmns of the new stanard issued in 2008.
It is the bst choice of similar instruments.

Main technical features:

1.This instrument is a kind of fully-automatic instrument wich can do determination for both flash point and fire point.

2.This instrument adopts technology of single chip machine and LCD screen.Full English man-machine dialog interface. It can preset the parameters of expected flash point,sample mark number, atmospheric pressure, test date,etc.It has menu to prompt and input function of guide type.

3.This instrument adopts desktop structure and advanced design.The man-machine interface make it easy to use.And the test result is accurate.It can be widely used in railway,aviation,electric power, petroleum industry and colleges,scientific research institutes,measurement departments to do determination of flash point and fire point for petroleum products.

Main technical specifications and parameters:

1.Power supply: AC(220±10%)V, 50Hz

2.Temperature measurement: Range(room temperature~400°C)

Repeatability: ≤8°C

Reproducibility:≤17°C

Accuracy:0.1°C

3.Heating rate:accord with GB/T3536 and ASTM D92

4.Igniting mode:electric ignition, gas flame:3.2mm~4.8mm

5.Ambient temperature:(10~40)°C

6.Relative humidity:≤80%

7.Total power consumption:≤ 500W

8.Overall dimension:520mm×380mm×310mm

Same series products for testing flash point (pls choose according to your test requirement)

Item	GD-267	GD-3536	GD-3536B	GD-3536A	GD-3536D
Testing Range	ambient~360°C	ambient~400°C	ambient~350°C	ambient~300°C	ambient~400°C
Repeatability	≤4 °C	≤8 °C	≤4 °C	≤8 °C	≤8 °C
Fire point	Can Test	Can	No	No	Can
Automatic up/down	No	No	No	Yes	Yes
Automtic detect	No	No	Yes	Yes	Yes
With micropriter	No	No	Yes	Yes	Yes
Communication port	No	No	No	No	Yes
Reproductility	≤6 °C	≤16 °C	≤6 °C	≤16 °C	≤16 °C
Screen Display	No	No	No	Yes	Yes
