Muffle furnace Carbon Residue Tester Carbon Residue analysis/Carbon Residue determination

Get Latest Price

Payment Type:: L/C, T/T, Western Union

Incoterm:: FOB

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 10 Days

Transportation:: Ocean, Land, Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Chongqing,China
Payment Type:	L/C,T/T,Western Union
Incoterm:	FOB
Transportation:	Ocean,Land,Air

Product Description

I. Instruction

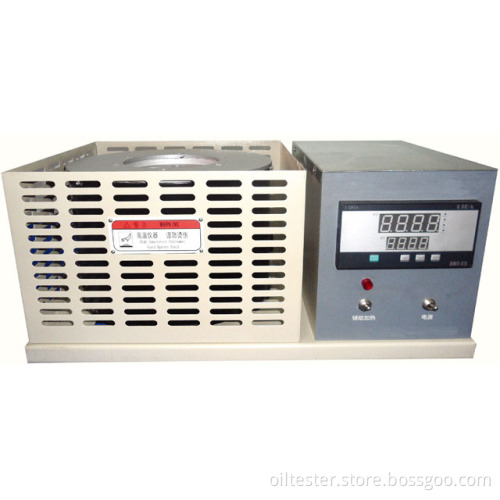

» GD-30011 Electric Furnace Method Carbon Residue Tester is designed and made as per the Industry Standard of Petrochemical SH/T0170 [Test Methods for Carbon Residue of Petroleum Products (Electric Furnace Methods)".

» GD-30011 Carbon Residue Analyzer(Electric Furnace Method) is suitable to determine carbon residue in the lubricating oil, heavy liquid fuels, and other petroleum products.

II. Main Technical Features

» The instrument adopts desktop configuration. The heating furnace and controller are assembled to all-in-one machine. Small dimension and easy to use.

» The max temperature of heating furnace can reach 520℃. It adopts digital temperature controller. The temperature control accuracy can reach ±5°C.

» It can do four sample determinations concurrently. The test efficiency is high.

III. Technical Parameters

1	Power supply	AC(220±10%)V, 50Hz
2	Heating mode	Electric furnace
3	Heating power	1150W(230W×5)in total
4	Temp. Control range	(0~520)℃
5	Temp. Control accuracy	±5℃
6	Test furnace	One furnace with four holes
7	Ambient temperature	Room temperature~ 35℃
8	Relative humidity	≤85%
9	Maximum power consumption	1300W
10	Dimension	350mm×360mm×365mm
