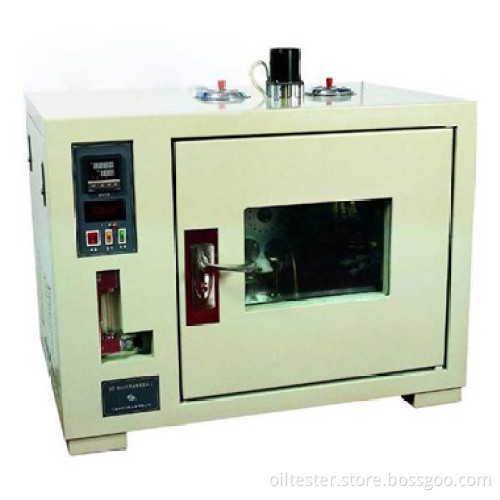

Pavelab Rtfot Rolling Thin Film Oven Tester ASTM D2872
- Payment Type:
- L/C, Western Union
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 10 Days
- Transportation:
- Ocean, Land, Air
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Payment Type: | L/C,Western Union |
|---|---|
| Incoterm: | FOB |
| Transportation: | Ocean,Land,Air |
Product Description
Product Description
I. Introduction
» GD-0610 High Efficiency Asphalt Rolling Thin Film Oven is designed and made as per industrial standard T 0610-2011 Standard Test Method for Effect of Heat and Air on a Moving Film of Asphalt in JTG E20-2011 Standard Test Methods of Bitumen and Bituminous Mixtures for Highway Engineering.
» GD-0610 High Efficiency Asphalt Rolling Thin Film Oven is suitable to determine mass loss of highway asphalt rolling thin film after heating, and the change of penetration, viscosity, ductility and breaking point of asphalt residue after the thin film has been heated, so as to estimate the aging performance of bitumen.
II. Main Technical Features
» GD-0610 High Efficiency Asphalt Rolling Thin Film Oven is composed of electric control component, working oven and mechanical drive. An illuminating light is equipped in the oven for convenient observation.
» There is an air compressor in the oven to supply the air needed for the test. The air can be controlled by a flowmeter on the panel.
»GD-0610 Asphalt Rolling Thin Film Oven adopts high precise temperature controller which can meet test requirements.
III. Main Technical Specs
| 1 |
Power supply
|
AC(220±10%)V, 50Hz
|
| 2 |
Heating power
|
2.4kW
|
| 3 |
Working temperature
|
163ºC
|
| 4 |
Temperature control precision
|
±0.5ºC
|
| 5 |
Rotating speed of turn plate
|
(15±0.2) r /min
|
| 6 |
Air flow rate
|
(4000±200)mL /min
|
| 7 |
Timing unit
|
Alert at 85 min
|
| 8 |
Ambient temperature
|
(5~50)ºC
|
| 9 |
Relative humidity
|
≤85%
|
| 10 |
Maximum power consumption
|
2.6kW
|
IV. Full Set
| No. | Name | Unit | Quantity | Remark |
| 1 | RTFOT Asphalt/Bitumen Rolling Thin-Film Oven | Set | 1 |
|
| 2 | sample bottle | Piece | 8 |
|
| 3 | mercurial thermometer 150ºC~170ºC,scale mark 0.5ºC | Piece | 1 |
|
| 4 | fuse wire 20A(Φ6×30) | Piece | 2 | reserve |
| 5 | socket(250V 16A three-core) | Piece | 1 |
|
