Automatic BDV Oil Tester
-
USD1900≥1 Set/Sets
- Payment Type:
- L/C, T/T, Western Union
- Incoterm:
- FOB, CFR, CIF
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | chongqing, china |
|---|---|
| Productivity: | 10000 |
| Supply Ability: | 10000 |
| Payment Type: | L/C,T/T,Western Union |
| Incoterm: | FOB,CFR,CIF |
| Certificate: | ICE156 |
| Transportation: | Ocean,Land,Air |
Introduction:

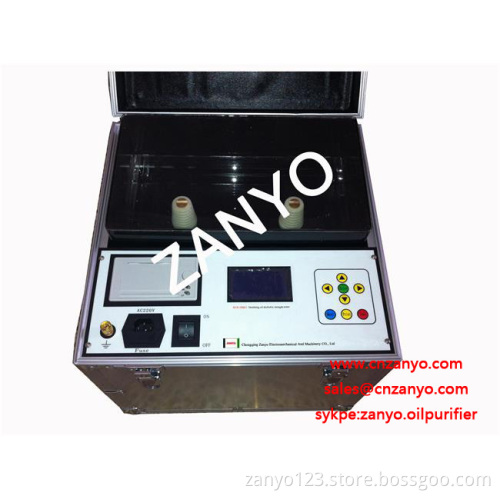

ZYIIJ-II Automatic oil tester is designed by IEC165 dielectric strength of insulating oil. Adopt industrial single chip to control. Applied large integrate circuit, new type I/O interface, the special tester and anti-jamming technology which greatly improved the capability of device.
Features:
1.Operate simply
2.Adopt menu management, impute parameter is ok
3.Can be stored ninety-nine kinds of oil test data which is convenient to print and adjust the data .The test data can be stored 10 years when the electrical is power off
4.The system clock can be run when be power off
5.Be provided with software upgrade through RS232 and test with PC
6.High capability of anti-jamming
7.High precision
8.Small size, light and run in the open air isn convience
Technical Parameters:
|
Power supply |
AC220V±10%,50Hz |
|
Output voltage |
0~100KV(60KV / 80KV / 100KV) |
|
Capacity |
1.2KVA(1.6KVA / 2.0KVA) |
|
Speed of pressure rise |
about 2KV/S |
|
Voltage test precision |
±3% |
|
Breakdown sensitivity |
<2KV |
|
Wave difference |
≤3% |
|
Time of breakdown |
≤10ms |
|
Working condition |
|
|
temperature |
0C~40Chumidity : The biggest comparatively humidity85% |
|
Reserve circumstance |
|
|
temperature |
-20C~60Chumidity : The biggest comparatively humidity75% |
|
Working altitude |
<1500m(if over1500mcan be designed specially) |
|
Dimension |
500mm*500mm*500mm |
Long-term quality warranty of 2 years.
Our products list as following:
ZYS-high effective vacuum transformer oil purification machine
ZYD-I,ZYD-II Double stages insulating oil purifier
ZYM-Mobile/trailer type transformer oil treatment equipment
ZYAD-Air dryer for drying electric equipments
ZYT-Turbine oil filtration machine
ZYJ-Coalescence and separating oil filter
ZYL-Lubricating oil purifier/hydraulic oil treatment device
ZYK- Phosphate ester fire-resistant oil purification machine
ZYR-Transformer oil regeneration device
ZYP-Plate pressure oil filter
ZYJL-Portable oil purifier
ZY-IIJ-II-BDV oil tester, insulating oil dielectric strength tester
ZYMMT-Oil moisture sensor, water content sensor
ZYRS-Engine oil regeneration system
ZYL-D- oil decoloring machine/oil recycling machine
