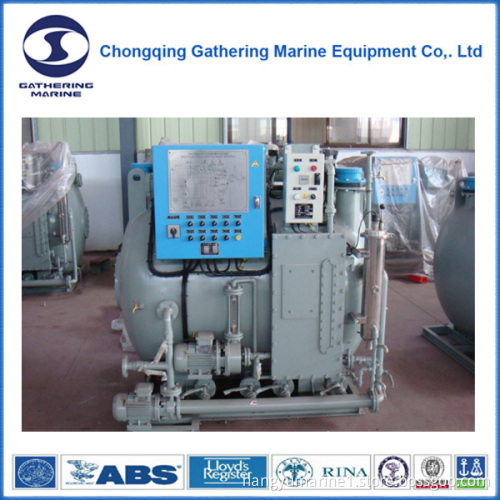

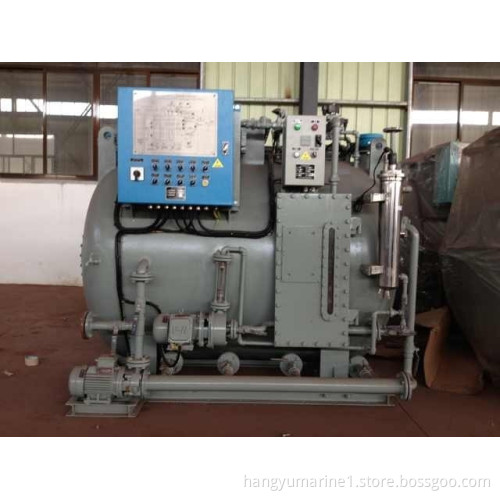

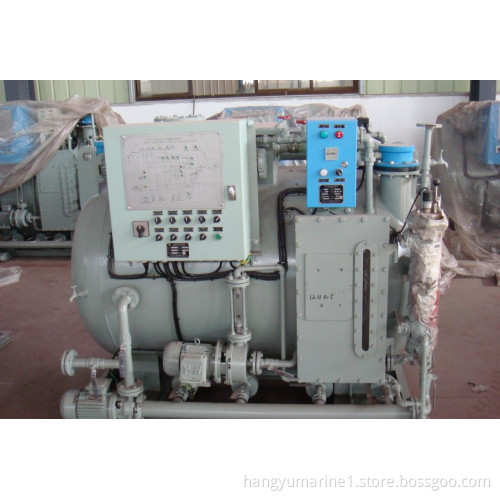

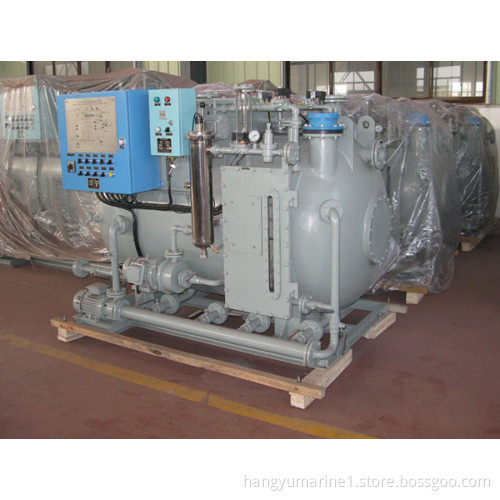

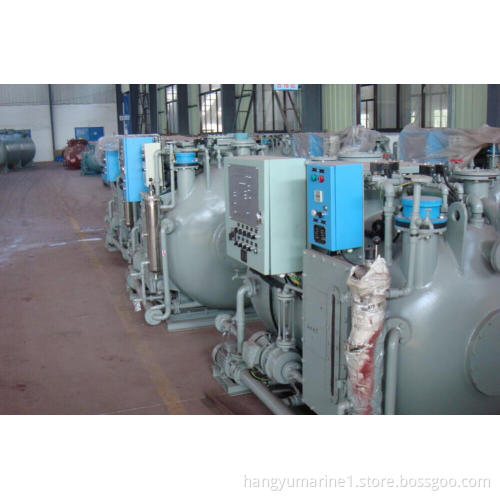

Marine Sewage Treatment Plant

Marine Sewage Treatment Plant Manufacturer
Specification:
1. Adopting horizontal circular design, ellipse closures on both ends, pressure resistance and compact structure.
2. The device is adopted auto-control, and compliance with the requirement of 24-hours unattended cabin.
3. Adopting the "MBR" technology, devices allow to the narrow size, and solve the conflict of small space of cabin, but big volume of device.
4. The intermittent aeration in bio-membrane tank and hollow fiber membrane tank, form the process of "aerobic anoxic", and resolve the problem of "nitrogen and phosphorus removal".
5. The device is adopting the principle of "air-lifting" to transfer the sludge from sediment tank and membrane tank to aeration tank, meantimes the "pump stops and air never stopped", so as the scale on the membrane surface comes down. Due to back flushing and clean the membrane "online" usd technology patent.
6. "On-line" cleaning technology, making the dirt on membrane off automatically, recover membrane flux. It can be solved the problem of opening the cleaning or replacement of membrane difficultly caused by the small space in cabin.
7. The effluent after further treatment can be reached at the requirement of "water recovery".
Meet the lastest standard MEPC.227(64)
Model list (15 persons _400 persons )

SWCM
10 persons	15 persons	20 persons	25 persons	30 persons	40 persons	50 persons	60 persons	80 persons	100 persons	120 persons	150 persons	200	250	300	400
Treated Load	Average Load (L/d)	840	1190	1540	1890	2310	3080	3780	4480	6020	7700	9100	11200	14700	18200	23100	30800
	Peak Load  (L/h)	105	149	193	237	289	385	473	560	753	963	1138	1400	1838	2275	2888	3850
	Organic Load  (kgBOD5/d)	0.42	0.595	0.77	0.945	1.155	1.54	1.89	2.24	3.01	3.85	4.55	5.6	7.35	9.1	11.55	15.4
Rated Capacity(P)		10	15	20	25	30	40	50	60	80	100	120	150	200	250	300	400
Max Capacity(P)		12	17	22	27	33	44	54	64	86	110	130	160	210	260	330	440
Electricity		AC380V-50Hz / AC440V-60Hz
Power(kw)		2.25	2.25	2.5	2.5	2.5	3	3	3.5	4	4	4	6	6	7	9	11
External Dimensions                        Lengthwidthheight		1350      1200      1370	1850      1200      1400	1660      1400      1550	1890      1400      1560	1980      1500      1650	2270      1600      1700	2300      1700      1820	2650      1700      1830	2790      1900      2050	2706      2000      2200	3000      2000      2200	3080     2200      2300	3630     2200      2350	3880     2400      2570	4780    2400      2600	5980    2400      2600
Weight	Dry weight  (kg)	900	1000	1000	1100	1200	1300	1450	1600	1850	2200	2300	2800	3000	3300	3700	4200
	Wet weight  (kg)	1775	2283	2640	2740	3500	4400	5073	5270	6517	8268	9166	11340	13267	16538	20357	25417
Discharge Standard		TSS<35mg/L;BOD5<25mg/L;COD<125mg/L;Colichin<100/100ml;PH:6-8.5
