CCS Certificate 0.5m3/H Marine 15ppm Oil Water Separator

CCS Certificate 0.5m3/H Marine 15ppm Oil Water Separator

USD1000

≥1 Piece/Pieces

Payment Type:: L/C, T/T, Western Union

Incoterm:: FOB, CFR, CIF, FCA, CPT

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 15 Days

Transportation:: Ocean, Land, Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Chongqing,China
Productivity:	1000set/month
Supply Ability:	1000 sets/month
Payment Type:	L/C,T/T,Western Union
Incoterm:	FOB,CFR,CIF,FCA,CPT
Certificate:	CCS,EC
Transportation:	Ocean,Land,Air

Product Description

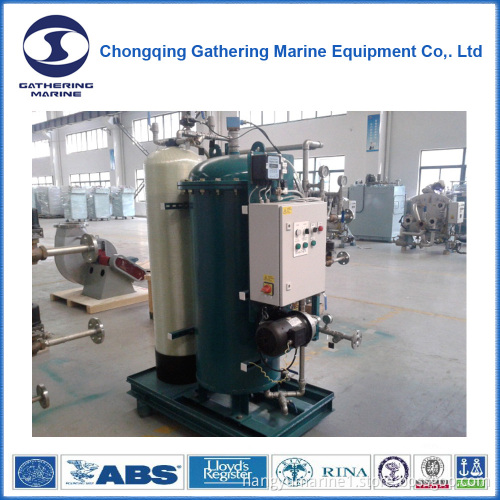

CCS Certificate 0.5m3/H Marine 15ppm Oil Water Separator

Product Description

Principle

The device adopts the combination of 1st stage,cone plate gravity and coalesce separation;2nd stage,fiber filter and 3rd stage,membrane permeation in order to make the treated bilge water to reach the requirements of discharge standard of the resolution of IMOMEPC.107(49).

Spare Parts

1 Grease seal of feeding pump 2 sets

2 The 2nd filter core 2 sets

3 O-Ring of the separator 1 piece

4 O-Ring of the filter 1 piece

5 O-Ring of the flange 8pieces

6 Bilge level Probe 1 pcs

7 Seawater initial Filter 1 pcs

Warning

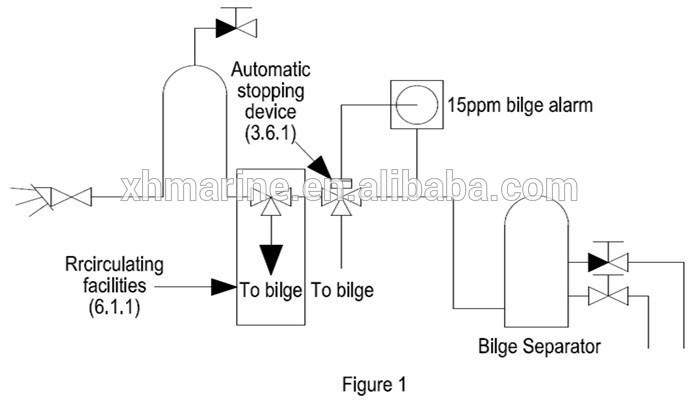

To comply with resolution IMO MEPC.107(49),on board,especially

ocean-going ships,they must be installed on board:15ppm bilge separator,15ppm

bilge alarm and automatic stopping device.The elementary diagram as follow:

Specifications

The Main Technical Table of the YWC Series Bilge Separator
Type	YWC-0.25	YWC-0.50	YWC-1.00	YWC-1.50	YWC-2.00	YWC-2.50	YWC-3.00	YWC-4.00	YWC-5.00
Rating/max Capacity (m 3 /h)	0.25/0.31	0.5/0.62	1.0/1.25	1.5/1.87	2/2.25	2.5/3.12	3/3.75	4.0/5.0	5/6.25
Power of pump (kw)	0.75	1.1	1.1	1.1	2.2	2.2	3	3	3.75
Electric Heater Power (kw)	1	3	option	option	option	---	---	---	10
Steam Heater (m 2 /kw)	---	---	1.0/30	1/45	2/60	2/75	3/90	4/120	5/150
15ppm Bilge Alarm	included	included	included	included	included	included	included	included	included
Base (channel steel) (mm)	#5 1000*600	#6 1100*690	#6 1050*1084	#8 1100*1130	#8 1900*1120	#8 1900*1120	#10 1700*1500	#10 2400*1700	#10 2500*2000
Height( mm)	1320	1460	1500	1660	1700	1900	2020	1820	1900
Dry/wet weight (kg)	300/450	600/800	800/860	1060/1810	1260/2260/	1500/2800	1800/3200	2100/3900	2500/4600
Applicable ship vessel	< 1000 DMT	1000-5000 DMT	5-10 KDWT	10-30 KDWT	30~50 KDWT	50~100 KDWT	100~200 KDWT	100~300 KDWT	300 KDWT above

Thanks for your time, more details, just feel free to contact us!
