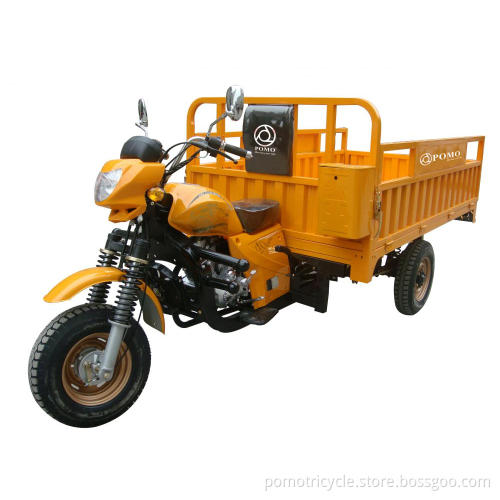

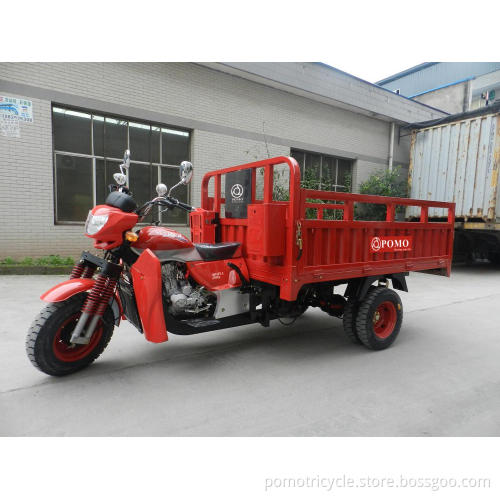

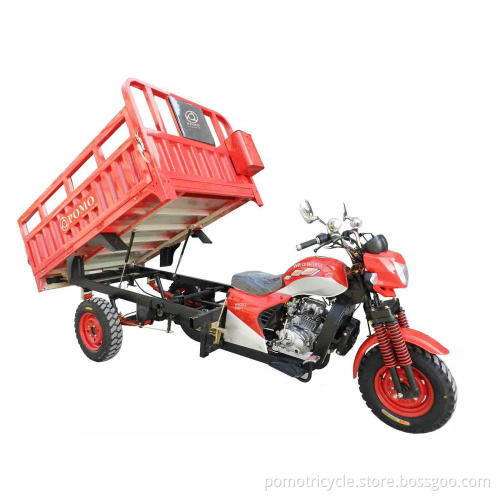

250cc Heavy load power Cargo motorcycle tricycle/three wheel motorcycle tricycle
- Payment Type:
- L/C, T/T, D/P, Paypal, Money Gram, Western Union
- Incoterm:
- FOB
- Min. Order:
- 35 Set/Sets
- Min. Order:
- 35 Set/Sets
- Delivery Time:
- 25 Days
- Transportation:
- Ocean
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | L/C,T/T,D/P,Paypal,Money Gram,Western Union |
|---|---|
| Incoterm: | FOB |
| Transportation: | Ocean |
1.Various colors for your options, and we can also customize as your special requirements
2.Various cargo box, 1.2M/1.25M/1.3M/1.35M
3.various engine types
4.Various car rear axle, usual one and stronger model
5.We can supply air cooling engine, water cooling ,double cooling engine, oil cooling engine
6.Displacement includes 150cc 175cc 180cc 200cc 250cc 260cc 300cc
Engine specification
item number:
PM250ZH-3
engine
single cylinder,4-stroke, water cooled
Nominal displace
150CC/200CC/250CC/300CC
starter system
electric/kick
Ignition Model
C.D.I
advance angle of ignition
BTDC11±2°(≤1500)33.5±2°(≥4000)
Transmission System:
Shaft drive
lubricating system
pressure splash
maximum power(kw/r/min)
10.5kW /7500 r/min
maximum torque (NM/r/min)
15.0N·m /6500 r/min
Economic fuel consumption:
≤354g/kwh
Low idling speed
1500
exhaust pollution
CO≤3.8%,HC≤800ppm
Brake system:
front, disc; rear, drum
clutch type
Wet Multi-Plate
Gear shift
5 Forward+1 Reverse
transmission ratio,junior
3.333
Output sprocket teeth
15
Fuel tank (L):
11.5
Battery:
12V,9Ah
Magnetor type
Permanent magnet AC
Tricycle specification
Dimension
3300*1300*2200mm
Cargo box size(L*W*H):
1700*1250*330mm
Rear axle:
220mm semi-floating car rear axle
Front shocker:
one-armed single shock absorber
Rear shocker:
3+2 underneath type steel plate with spring
Wheels:
4.50-12 or 5.00-12 wheels (three wheels can be exchanged)
40*80mm keel frame
Bigger fuel tank
Bigger footplate
Max.Loading(kg)
800
Max.Speed:
≤60km/h
transmission Type
Shaft
container:
38 or 40 units /(1* 40'HQ in ckd)
Remarks:we can produce it as per client's request.
