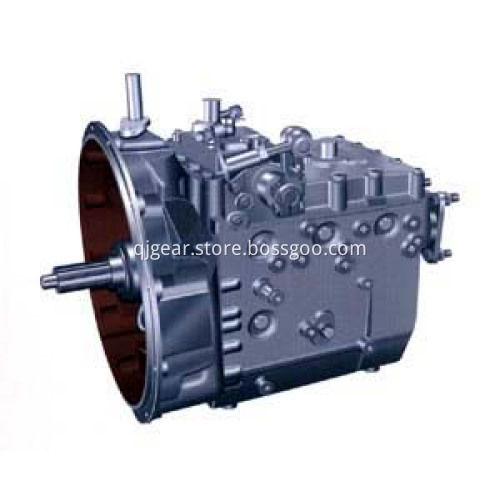

Product Name : Synchromesh Transmission S5-70 (QJ705)
Product Profile: Mechanical transmission for 8-10m medium buses, 5 forward gears, 1 reverse, to be equipped with euro II engines with max. power of 120-160kW(160-219PS), and max. torque of 600-750NM.
Characteristic
l Easy gearshift --- Shift pattern of rotary shaft - drag link --- fork, single lever mechanism, lock-synchronization.
l Short installation length --- Horizontal installation makes configuration compact, benefit to vehicle`s layout.
l Long service life --- Driving gear machined by grinding and shot blasting process give low noise, high intensity, and long service life.
l High reliability --- Constant-mesh driving by helical gear and supported by roll bearing give large loading capacity and high reliability
S5-70(QJ705)
To be equipped with followings as optional:
l SAE# clutch housing
l Double soft shaft control
l Electric retarder
Technical Data:
|
Type |
QJ705 |
|||||||
|
Rating Input Power |
120KW-150KW |
|||||||
|
Rating Input Torque |
650N.m-750N.m |
|||||||
|
Rating Rev. |
2600r/min |
|||||||
|
Total Weight |
195kg |
|||||||
|
Ratio |
Gear |
1st |
2nd |
3rd |
4th |
5th |
Reverse |
|
|
Direct Speed |
7.84 |
4.19 |
2.42 |
1.50 |
1.00 |
6.99 |
||
|
Direct Speed |
7.03 |
3.75 |
2.17 |
1.35 |
1.00 |
6.26 |
||
|
Overdrive Speed |
6.44 |
3.28 |
1.74 |
1.00 |
0.79 |
5.74 |
||
|
Overdrive Speed |
6.19 |
3.15 |
1.67 |
1.00 |
0.76 |
5.22 |
||
|
Speedometer Ratio |
1.545 |
|||||||
|
Gearshift |
Lock Synchronized Gear II-V, Dog-Clutch operated Gear I and Reverse |
|||||||
|
Operation |
Remote Operation by Rotary shaft, or Direct Operation |
|||||||
|
Installation |
Flange-mounted to engine, or installed separately, Horizontal to Right or Left, Vertical |
|||||||
|
Installation Length |
475mm |
|||||||
|
Power Output |
The Front-end of Transmission or the Back-end of Counter Shaft |
|||||||
|
Oil Capacity |
Horizontal 8L, Vertical 8L |
|||||||
|
|
|
|
|
|
|
|
|
|
