High quality Synchromesh Transmission gearbox
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB, CFR, CIF
- Min. Order:
- 2 Bag/Bags
- Min. Order:
- 2 Bag/Bags
- Delivery Time:
- 30 Days
- Transportation:
- Ocean
- Port:
- Shanghai, Beijing, Chongqing
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China,Chongqing |
|---|---|
| Productivity: | 5000 |
| Supply Ability: | 10000 |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF |
| Certificate: | TS16949 |
| Transportation: | Ocean |
| Port: | Shanghai,Beijing,Chongqing |
Product

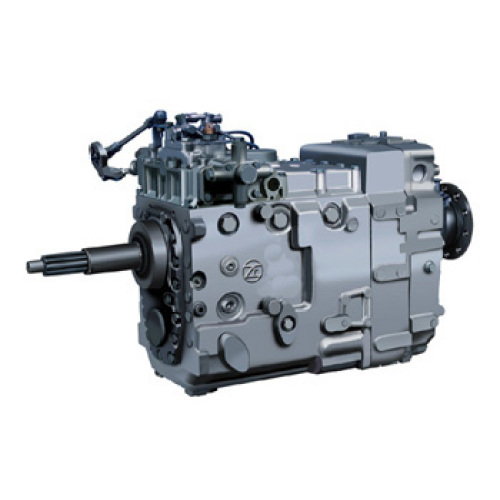

Name :Synchromesh Transmission S8-180
Product Profile:Super great torque, large loading capacity,
easy shift, energy conservation & environmental protection
Characteristic
1-Super Large Torque - to be supplied with engines with power of 360 hp at least and max. torque of 1500 –1800 NM. Be applicable of bus with length of 11-13m.
2-Large Loading Capacity ---- Absorbing advanced ZF technology, large loading capacity, high reliability and low noise, long service life
3-Easy Control - Adopt world advanced synchronizer shift pattern, [one-foot" clutch
4-Energy Conservation & Environmental Protection -The first 8-speed transmission in China, less gear step, low fuel consumption
Company information
Qijiang Yongyue Gear Co.,Ltd. was established in Oct.2002, and we have more than 15 years experience of gear-manufacturing. Our company covers an area of 80000 M2 with current (first phase) usable area 15000 M2.
There are 212 sets of equipments spaced in our Forging plant, Heattreatment plant, and machining plant.
Leading products: Gearbox Assy:(1)Rear angular transmission;(2)Hybrid transmission of city bus;(3)AMT transmission;(4)Autobalance inter transmission of heavy type.
Other products:A. various gear, shaft, synchronizer and its component of bus and truck (especially be good at component of ZF gearbox), B. various truck`s axle gear, hub gear, ring gear and axle`s component. C. various engine gear, and so on. Totally can produce more than 500 kinds of products.
Main customers and sales status: Qijiang Gear Transmission Co.,Ltd., HanDe Axle, Anhui Ankai, Qingte Group, Guangxi Fangsheng, etc., and gradually enter into overseas retail market, such as Iran, Vietnam, U.S.A., South Africa, and so on.
Technical Data:
|
Type |
S8-180 |
||||||||
|
Center Distance |
154mm |
||||||||
|
Rating Input Torque |
1800N.m |
||||||||
|
Rating Rev. |
2600r/min |
||||||||
|
Total Weight |
300kg |
||||||||
|
Gear |
1st |
2nd |
3rd |
4th |
5th |
6th |
7th |
8th |
Reverse |
|
Ratio |
8.48 |
6.04 |
4.39 |
3.43 |
2.47 |
1.76 |
1.28 |
1.00 |
8.06 |
|
6.37 |
4.65 |
3.43 |
2.50 |
1.86 |
1.36 |
1.00 |
0.73 |
7.90 |
|
|
Speedometer Ratio |
1.545/2.0 |
||||||||
|
Gearshift |
All Forward Gears Lock Synchronized, Dog-clutch Reverse Gear |
||||||||
|
Operation |
Remote Operation by Rotary shaft or Direct Operation |
||||||||
|
Installation |
Flange-mounted to engine, or installed separately, Horizontal to Right or Left, Vertical |
||||||||
|
Installation Length |
735mm |
||||||||
|
Clutch housing |
SAE1# |
||||||||
|
Oil Grade |
|
||||||||
|
Oil Capacity |
13L |
||||||||
