Product Description

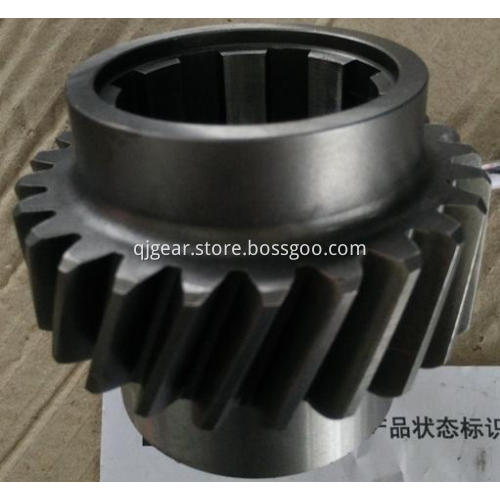

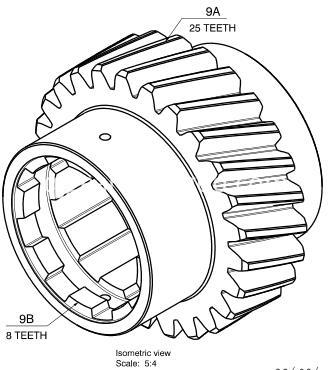

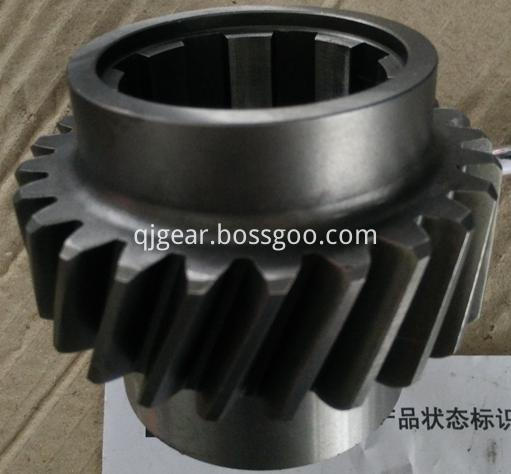

Forging GEAR 8/25 TEETH TRACTOR PARTS

No. of teeth: 25. Normal Module(N.M): 3.25. Normal pressure angle: 20°. Helix angle/Direction: 22°-R.H.. Pitch circle dia: 87.631mm. Base circle dia.: 81.571mm. Circular pitch: 11.012mm. Apply for Argricultural tractor with process of forging, hobbing, shaving and heattreatment with Material 20CrMnTi. Internal spline formed by broaching and outer gear formed by Hubbing.

Out gear(25 teeth) precision:

Individual pitch deviation=0.02mm.

Total pitch deviation=0.071mm.

Concentricity deviation=0.056mm.

Radial composite error=0.063mm
