Kit Gear tractor gear shaving
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB, CIF
- Min. Order:
- 500 Piece/Pieces
- Min. Order:
- 500 Piece/Pieces
- Delivery Time:
- 45 Days
- Transportation:
- Ocean
- Port:
- Shanghai, Beijing, Chongqing
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Chongqing China |
|---|---|
| Productivity: | 30000 pcs per month |
| Supply Ability: | 30000 pcs per month |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CIF |
| Transportation: | Ocean |
| Port: | Shanghai,Beijing,Chongqing |

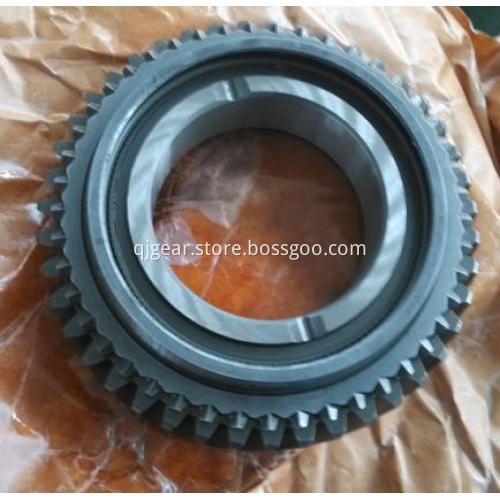

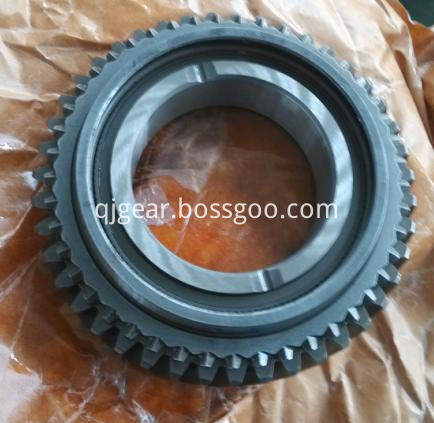

Kit Gear tractor gear shaving is with No. of teeth: 43. Normal Module(N.M): 3. Normal pressure angle: 20°. Helix angle/Direction: 22°-R.H.. Pitch circle dia: 139.131mm. Base circle dia.: 129.51mm. Circular pitch: 10.165mm. Apply for Argricultural tractor with process of forging, hobbing, shaving and heattreatment with Material 20CrMnTi. Internal spline formed by broaching and outer gear formed by Hobbing.
Out gear(25 teeth) precision:
Profile Angle deviation=0.012mm.
Total Pitch deviation=0.020mm.
Concentricity deviation=0.063mm.
Radial composite error=0.071mm
|
Part name |
Kit Gear |
|
Part number |
110950 T91 |
|
Product number |
036 0321 F |
|
Weight(kg) |
2.3 |
|
Project |
MF |
Shaving MF660 Gear for Tractor:
Shaving, Grinding, Shapping or Broaching, etc. Technological Processes are optional in order to meet your technological requirements.
Company information
Qijiang Yongyue Gear Co.,Ltd. was established in Oct.2002, and we have more than 15 years experience of gear-manufacturing. Our company covers an area of 80000 M2 with current (first phase) usable area 15000 M2.
There are 212 sets of equipments spaced in our Forging plant, Heattreatment plant, and machining plant.
Leading products: Gearbox Assy:(1)Rear angular transmission;(2)Hybrid transmission of city bus;(3)AMT transmission;(4)Autobalance inter transmission of heavy type.
Other products:A. various gear, shaft, synchronizer and its component of bus and truck (especially be good at component of ZF gearbox), B. various truck`s axle gear, hub gear, ring gear and axle`s component. C. various engine gear, and so on. Totally can produce more than 500 kinds of products.
Main customers and sales status: Qijiang Gear Transmission Co.,Ltd., HanDe Axle, Anhui Ankai, Qingte Group, Guangxi Fangsheng, etc., and gradually enter into overseas retail market, such as Iran, Vietnam, U.S.A., South Africa, and so on.
