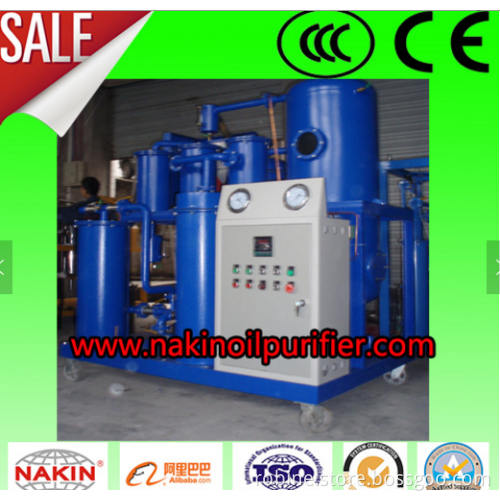

NAKIN TYA lubricanting oil purifier/ oil refinery machine/transformer oil purifier

Get Latest Price

Payment Type:: L/C, T/T

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 15 Days

Transportation:: Ocean

Port:: Chongqing

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	chongqing
Productivity:	100 pieces per month
Payment Type:	L/C,T/T
Certificate:	CE
Transportation:	Ocean
Port:	Chongqing

Product Description

Application

Series TYA vacuum lube oil purifier is mainly for purifying unqualified lubricating oil, hydraulic oil, furnace oil, compressor oil, refrigeration oil and other industrial oils, this machine can rapidly separate water, gas, particles and volatile matter (such as alcohol, gasoline, ammonia, etc.) from oil, restoring oil viscosity, flash point and performance. The treated oil can reuse again in various industrial equipments. It is widely applied in petroleum, chemical, mining, metallurgy, electric power, transportation, machinery manufacturing, railway etc.

Features

1.Double primary-filter structure, large capacity for holding particles, Multi-stage filtration system to ensure high filtration precision.

2. Special polymer materials as filter medium with the functions of broken emulsion, dewatering, removing particles

3.Duplex-Stereo film evaporation technology, equips with unique and advanced dewatering, degassing components, can rapidly and effectively remove water, gas, particles and volatile matter (such as alcohol, gasoline, ammonia, etc.)

4. Automatic backwashing system, improving working efficiency

5. Advanced medium cooling system

6. High quality filtering components, large capacity for holding particles, anti-corrosion, good mechanical performance, long lifetime.

7. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.

8. Adopts interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically

Technical Parameters

Index name		unit	TYA-20
Flow rate		L/H	1200
Working vaccum		MPa	-0.06~-0.095
Working pressure		MPa	≤ 0.4
Temperature range		℃	20 ~80
Demulsifying value		min	≤ 15/min(GB/F7035)
Water content		ppm	≤ 80
Gas content		%	≤ 0.1
Cleanness			≤ NAS 6 grade
Particles size		μ	≤ 1
Power supply			380V 50HZ 3Ph (As per user`s option)
Working noise		dB(A)	≤65~85
Heating power		Kw	40
Total power		Kw	42
Inlet(Outlet)		mm	Φ25
Weight		kg	380
Dimension	L	mm	1500
	W	mm	1050
	H	mm	1600
