Mobile type insulating oil purifier oil purification

Mobile type insulating oil purifier oil purification

USD2000

≥1 Set/Sets

Payment Type:: L/C, T/T, Western Union

Incoterm:: FOB, CFR, CIF

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 10 Days

Transportation:: Ocean, Air

Port:: Shanghai, Chongqing, Guangzhou

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000sets/year
Supply Ability:	500sets
Payment Type:	L/C,T/T,Western Union
Incoterm:	FOB,CFR,CIF
Certificate:	ISO,CE,CCC,SGS
HS Code:	8421230000
Transportation:	Ocean,Air
Port:	Shanghai,Chongqing,Guangzhou

Product Description

Application:

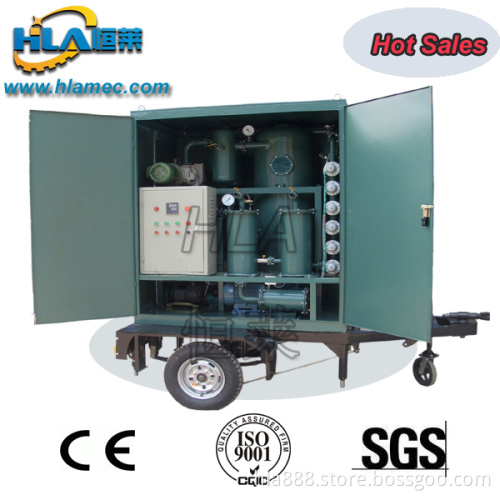

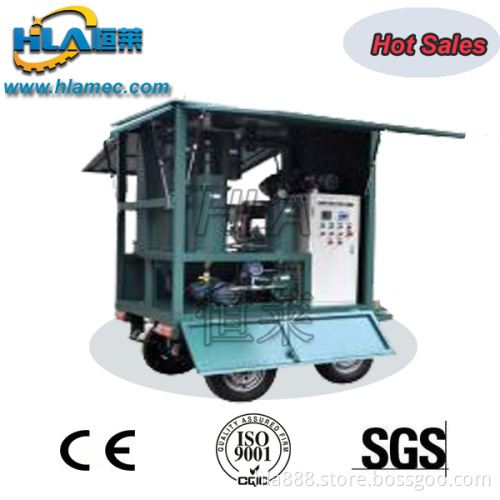

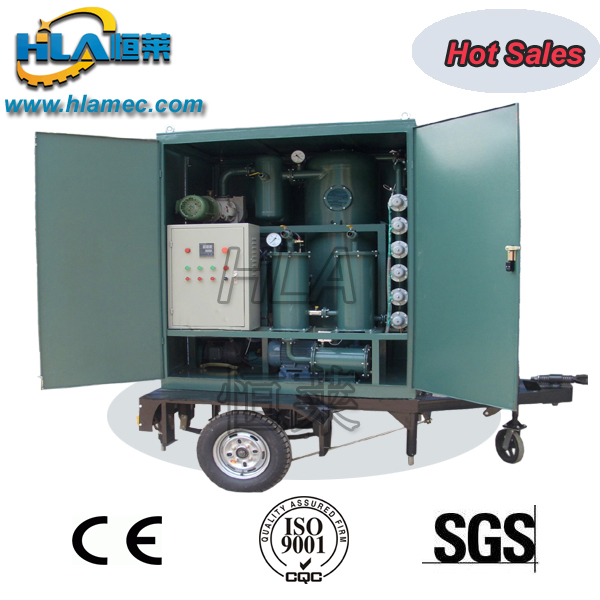

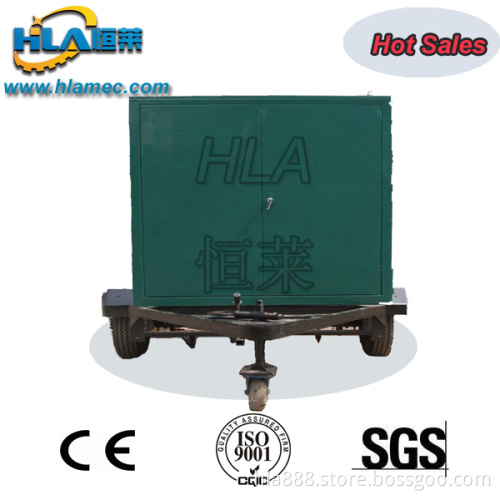

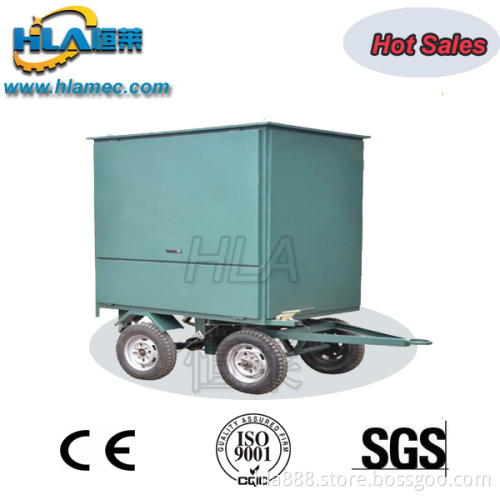

According to fieldwork application, the SVP and DVP transformer oil purifier can be

mounted on the mobile trailer with weather-proof, it is renames as model VPM (Vacuum

oil Purifier mounted on Mobile trailer). The machine is special suitable for moving to any

work point by traction and doing online purification of the transformers insulation oil.

Meanwhile, it is weather-proof type with completely closed structure, waterproof,

dustproof and moves a long distance for working in field

Features:
1.Advanced dehydrating and degassing system that uses large area three-dimensional

flash distillation technique to remove harmful composition in the oil such as water, air

and gas.
2. It can be widely used for oil filling for transformers and circuit breakers under vacuum

condition.
3. Precise filtration system, high-quality filter elements, multi-stage filtration with gradual

precision can help to remove mechanical impurities in the oil.
4. An advanced fully automatic temperature controlling system, liquid-level controlling

system, pressure protecting system etc.
5. Online work, allowing separated operation of manual operators from machine with

lamps indicating the condition for operation.
.6. Top-quality components and workmanship ensure years of maintenance-free

operation and performance.

Technical Parameters:

Model		VPM30	VPM50	VPM80	VPM100	VPM125	VPM150	VPM200	VPM250	VPM300
Capacity(L/min)		30	50	80	100	125	150	200	250	300
Vacuum level		-0.06~-0.095 Mpa
Working pressure		≤ 0.4 Mpa
Ultimate vacuum		≤ 5 Pa
Temperature range		20-80℃
Filtering precision		≤1 micron
Continuous work		≥200 hr
No failure running		≥5000 hr
Power supply		380V, 50HZ, 3PH ( or Customized )
Working noise		65 dB
Heating power (kw)		24	30	48	60	72	90	125	136	150
Total power (kw)		27	34	54	68	80	100	135	148	165
Inlet/outlet(mm)		32	32	44	44	48	50	55	60	65
Weight (kg)		300	400	500	600	700	800	1000	1150	1300
Dimension (mm)	L	1300	1350	1500	1800	1900	2000	2100	2150	2300
	W	1000	1000	1100	1150	1200	1250	1300	1350	1400
	H	1500	1500	1600	2000	2100	2150	2200	2250	2300
