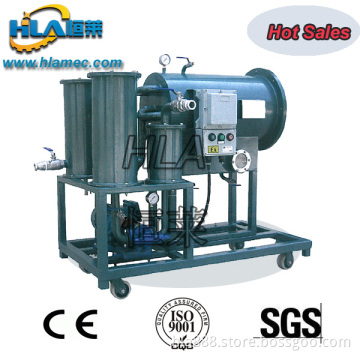

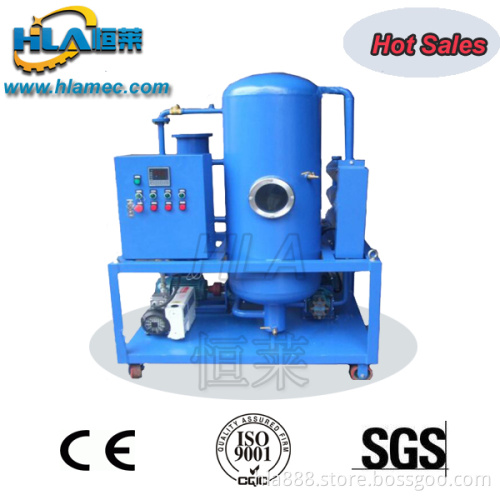

lubricating oil purifier oil filtration oil purification

lubricating oil purifier oil filtration oil purification

USD2000

≥1 Set/Sets

Payment Type:: L/C, T/T, Western Union

Incoterm:: FOB, CFR, CIF

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 10 Days

Transportation:: Ocean, Air

Port:: Shanghai, Chongqing, Guangzhou

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000sets/year
Supply Ability:	500sets
Payment Type:	L/C,T/T,Western Union
Incoterm:	FOB,CFR,CIF
Certificate:	ISO,CE,CCC,SGS
HS Code:	8421230000
Transportation:	Ocean,Air
Port:	Shanghai,Chongqing,Guangzhou

Product Description

Application:

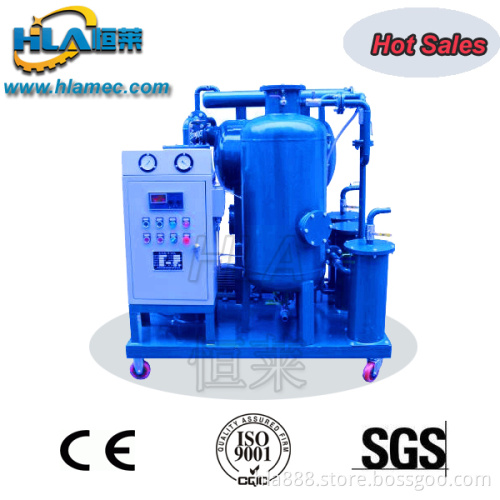

The LVP lubricant oil purifier is designed for controlling the contamination of particles and moisture in oil and maintain the critical cleanliness. It adopts high vacuum dehydration,

pressure filtration and prevents wear and tear of machine components by removing solid impurities, water and gas, thus increasing the overall efficiency and life of equipments.

The LVP lubricant oil purifier is mainly used for determining oil cleanliness levels for oil

and gas, petrochemical, power generation and Marine Industries.
Features:
1. High grades filtering structure with primary filter, second filter and fine filter.
2. The functions of broken emulsion, dewatering, removing particles
3. Duplex-Stereo film evaporation technology, equips with unique and advanced

dewatering, degassing components.
4. Adopts interlocked protective system connects pumps, heater and liquid level sensor,

whic avoiding blank heating, blank pumping, oil leak and electricity leak.
5. Efficient electric heating system, heating uniformity, less power consumption, safe,

and reliable.

Technical specification

Model		LVP010	LVP020	LVP030	LVP050	LVP100	LVP150	LVP200	LVP300
Capacity(L/min)		10	20	30	50	100	150	200	300
Working vacuum		-0.06~-0.095 Mpa
Working pressure		≤ 0.4 Mpa
Temperature range		20-80℃
Water content		≤20 ppm
Gas content		≤ 0.1%
Demulsifying value		≤8 min(GB/F7035)
Cleanness		NAS 6 grade
Filtering precision		≤1 micron
Continuous work		100 hr
No failure running		≥5000 hr
Power supply		380V, 50HZ, 3PH ( or Customized )
Working noise		65 dB
Heating power (kw)		24	24	30	40	60	90	145	160
Total power (kw)		27	27	33.5	44	65	97	157	178
Inlet/outlet(mm)		25	25	32	32	48	50	58	65
Weight (kg)		300	350	400	500	800	1000	1200	1350
Dimension (mm)	L	1100	1230	1250	1500	1650	1750	1900	2000
	W	800	810	850	950	1000	1200	1250	1350
	H	1250	1260	1300	1400	1600	1750	1950	2100
