Turbine oil purifier oil filtration oil purification
-
USD2000≥1 Set/Sets
- Payment Type:
- L/C, T/T, Western Union
- Incoterm:
- FOB, CFR, CIF
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 10 Days
- Transportation:
- Ocean, Air
- Port:
- Shanghai, Chongqing, Guangzhou
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 1000sets/year |
| Supply Ability: | 500sets |
| Payment Type: | L/C,T/T,Western Union |
| Incoterm: | FOB,CFR,CIF |
| Certificate: | ISO,CE,CCC,SGS |
| HS Code: | 8421230000 |
| Transportation: | Ocean,Air |
| Port: | Shanghai,Chongqing,Guangzhou |
Application:

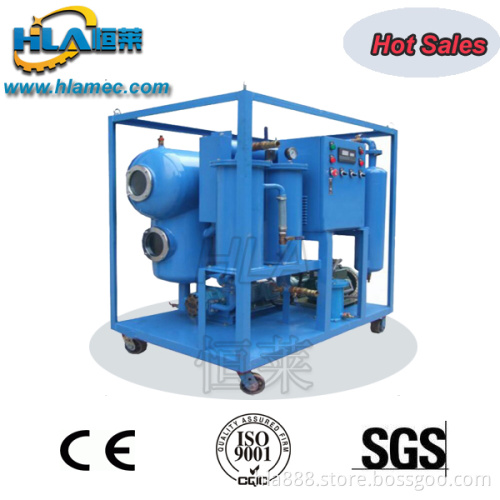

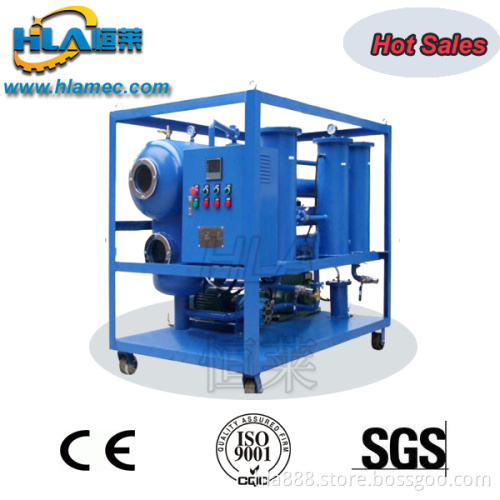

TVP turbine oil purifier is built for purification of lubricating oil in turbines, during running
of turbines, the lube oil is contaminated easily, the bad characteristics of oil make the
performance of equipments breakdown often, maintenance cost of equipment is much
more higher. Our turbine oil purifier mainly remove water, gas and contaminants
dissolved in oil, increase the efficiency of equipment and reduce cost, it also can work
online with stream turbine, hydraulic turbine etc.
Features:
1. Multi-stage precision filtration system with molecular adsorption technology.
2. Duplex-Stereo film evaporation technology with advanced dewatering, degassing
components
3. Special polymer materials as filter medium with the functions of broken emulsion
4. Latest liquid level controlling technology, pressure protective system
5. Adopt interlocked protective system connects oil pump, heater and liquid level sensor,
which can avoid blank heating, blank pumping, oil leak and electricity leak.
Technical specification:
|
Model |
TVP-10 |
TVP-20 |
TVP-30 |
TVP-50 |
TVP-100 |
TVP-150 |
TVP-200 |
TVP-300 |
|
|
Capacity(L/min) |
10 |
20 |
30 |
50 |
100 |
150 |
200 |
300 |
|
|
Working vacuum |
-0.06~-0.095 Mpa |
||||||||
|
Working pressure |
≤ 0.4 Mpa |
||||||||
|
Temperature range |
0-100℃ |
||||||||
|
Water content |
≤10 ppm |
||||||||
|
Gas content |
≤ 0.1% |
||||||||
|
Demulsifying value |
≤15min(GB/F7035) |
||||||||
|
Cleanness |
NAS 6 grade |
||||||||
|
Filtering precision |
≤3 micron |
||||||||
|
Continuous work |
100 hr |
||||||||
|
No failure running |
≥5000 hr |
||||||||
|
Power supply |
380V, 50HZ, 3PH ( or Customized ) |
||||||||
|
Working noise |
65 dB |
||||||||
|
Heating power (kw) |
24 |
24 |
30 |
40 |
60 |
90 |
145 |
160 |
|
|
Total power (kw) |
27 |
27 |
33.5 |
44 |
65 |
97 |
157 |
178 |
|
|
Inlet/outlet(mm) |
25 |
25 |
32 |
32 |
48 |
50 |
58 |
65 |
|
|
Weight (kg) |
300 |
350 |
400 |
500 |
800 |
1000 |
1200 |
1350 |
|
|
Dimension (mm) |
L |
1200 |
1250 |
1400 |
1500 |
1650 |
1750 |
1900 |
2000 |
|
W |
600 |
710 |
850 |
950 |
1100 |
1200 |
1250 |
1350 |
|
|
H |
1280 |
1300 |
1300 |
1400 |
1800 |
1850 |
1950 |
2100 |
|
Our Main Series Products as following:

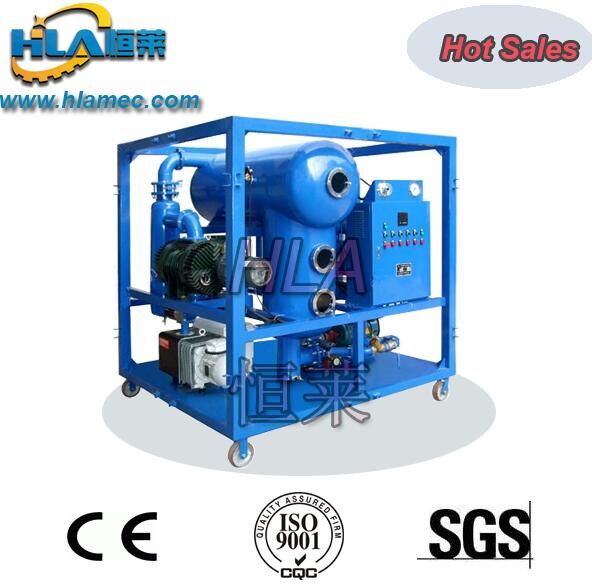

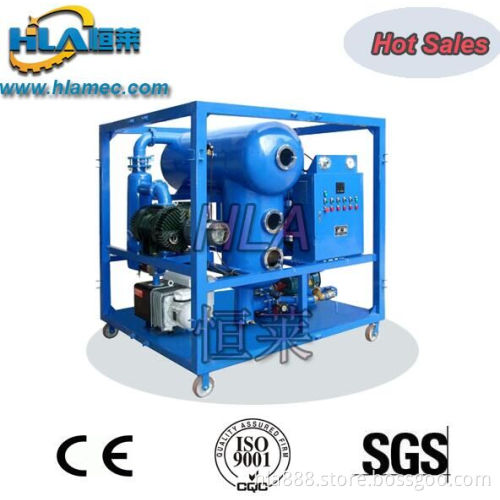

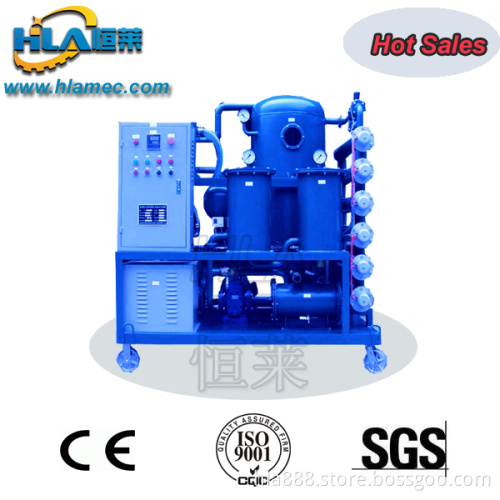

DVP-Double vacuum Transformer oil purifier
VPM-Movable insulating oil purification cart
DYK-Electric transformer air drying equipments
TVP-Online Turbine oil treatment
DSP-Fuel oil filtration unit

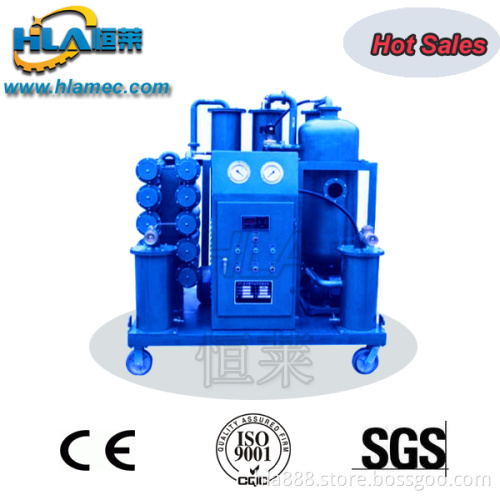

LVP-Lubricating oil purifier/hydraulic oil purification
AP-oil regeneration system, waste oil recycling
PR-Press paper filter machine
DK-Portable oil piurifier,oil filtering,oil filter
ZJY dielectric strength tester for transformer oil
EE36-Oil moisture sensor
Oil purifier parts and various oil testing equipments
Our Honor and Quality Certificate:
China Famous brand Oil Purifier Company
Golden-supplier for China National Electric power Group
Golden-Supplier for ALSTOM, SIEMENS, SCHNEIDER Company
ISO9001 products quality certificate
CE Products safety certificate
SGS Products local testing report
More than 15 years and 50 countries and districts exporting experience
Our After-sales:
Engineer is available for local installation.
24 months warranty from the delivery time.
24 hours online service question and answer.
More than 10 years experience
Packing and delivery way:
Wooden case Suitable for sea transportation and air transportation
