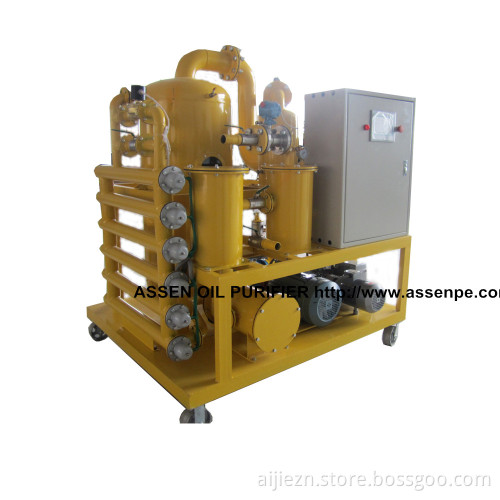

PLC fully automatically Transformer Oil Filtration machine
- Payment Type:
- L/C, T/T, D/P
- Incoterm:
- FOB, CFR, CIF
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 12 Days
- Transportation:
- Ocean, Land, Air
- Port:
- CHONGQING, SHANGHAI
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | china |
|---|---|
| Productivity: | 100 sets per month |
| Supply Ability: | 1000 |
| Payment Type: | L/C,T/T,D/P |
| Incoterm: | FOB,CFR,CIF |
| Certificate: | CE ISO9001:2000 |
| HS Code: | 84212990 |
| Transportation: | Ocean,Land,Air |
| Port: | CHONGQING,SHANGHAI |
To remove moisture, gas and particles in transformer oil, mutual inductor oil, cable oil, and circuit breaker oil, and restore property of insulating oil.
Application:
ZYD series vacuum insulation oil purifier is mainly used to extend the lifetime of oils used in transformers, circuit breakers, mutual inductor, voltage regulators and switch gear, or to inject the insulating oil into the transformers. Equipped with regenerators, ASSEN transformer oil purification equipments can improve the effect of de-acid, de-color and remove dielectric and acid more effectively. The value of breakdown voltage will increase from 15KV to 75KV. The performance and lifetime of insulating oil will improve and extend awfully after purification and regeneration.
Performance of ZYD PLC Transformer Oil Filtration Machine
Water Removal: Overall Water
Content ≤3 PPM by removing free, emulsified, and dissolved water.
Particulate Removal: Particle counts as low as 1 micron.
Entrained Air and Gas Removal ≤ 0.3%
Acid Removal: can be equipped with fullers earth towers to neutralize acid and
Lower TAN to < 0.03 KOH/g
Dielectric Strength:≥75 kV per ASTM 877
Features:
1. A capability of reducing moisture content from 50ppm to 3ppm moisture and 12% gas content to less than 0.1% by volume. 98% of particulate matter will also be removed.
2. Double-Stage vacuum system,strong power of vacuum evacuating,ultimate vacuum value no more than 5Pa
3. Duplex-Stereo film evaporation technology,combined with unique and advanced dewatering,degassing components,can rapidly and effectively separate water, gas,from oil.
4. An advanced fully automatic temperature controlling system,liquid-level controlling system,defoaming controlling system,pressure protecting system and excellent configuration can ensure operation of the equipment with high performance
5. Online work,allowing separated operation of manual operators from machine with lamps indicating the condition for operation.
6. It is humanization design with low noise,deep purification and long time free maintenance to save cost from the running process.
