Mini Concrete Batching Plant

Flexible self-loading concrete mixer is combined by the concrete pump and the mixer together, have the  materials mixed on site so the mix is fresh and hasn`t begun setting up or rejected because of being late to a job site. Materials are thoroughly mixed through the volumetric process to produce quality concrete in the exact amount needed.

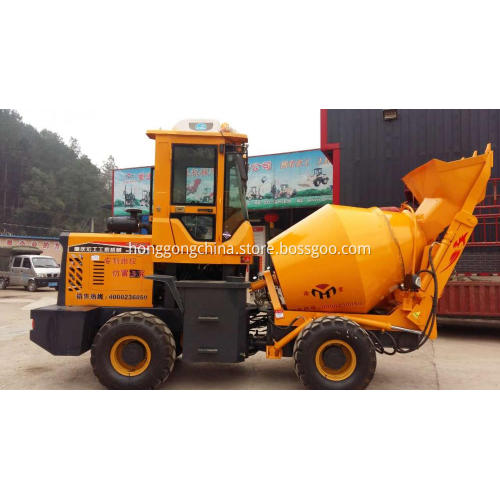

The mobile diesel concrete mixer just need one operator to drive, load, and mix raw material while moving it. It has a higher working efficiency, higher mixing effect. At the same time, it greatly reduces the labor cost and working time.

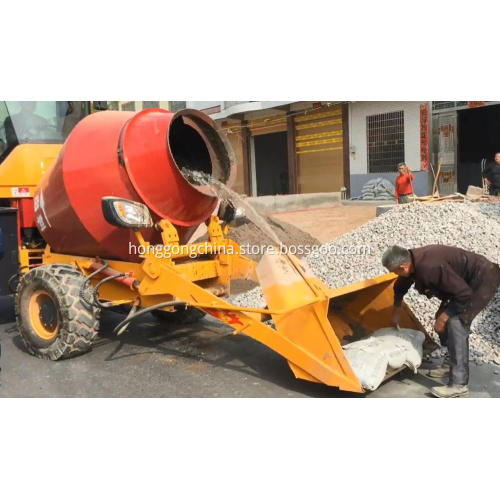

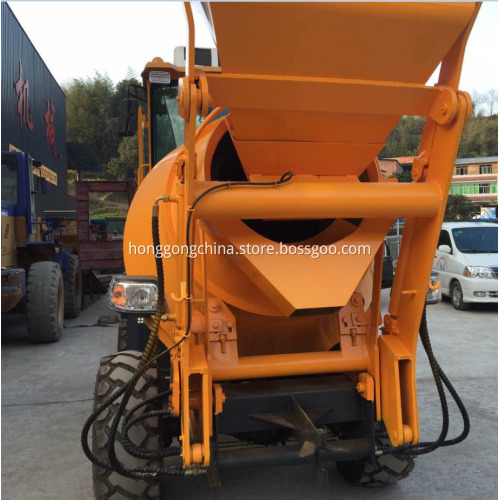

Loading: Because of hydraulic shovel, this mixer can load the material easily and accurately. Inside blade can tear the cement bag to avoid material waste.

Mixing : After the aggregate and cement are fed into the mixing barrel, they will be mixed with the pressed water from the double water tanks which are on the truck. The specially designed double screw to confirm the quality of concrete;

Transport: This mixer is fit for any working site because of its 4 wheel hydraulic drive system and favorable configuration. Also mixing during towing. It can crawl on the 35 degree slope at a full load situation;

Driving cab: There is a well appointed cab. The driver can operate almost all the actions through a handle shank.

Brake: Disc brake system for safe working.

Type: drum type concrete mixer is available for sale

Technical Parameter:

Engine Model: Quancai 490

Rated speed: 2400ram

Engine power: 38kw

Max output torque: 3600n/m

Hydraulic system flow: 42-63ml/r

Hydraulic rated pressure: 16mpa

Max turing radius: 20degree

Max working slope: 35 degree

Max towing speed: 20km/h

Max loaded volume: 1CBM

Feeding funnel raise time: ≤4sec

Feeding funnel fall time: ≤3sec

Mixer diameter: 1700mm

Mix full drum time: ≤ 2 min

discharge height: 800mm

Cab configuration: standard

Tire spec: 14/90-16

Brake configuration: disc brake

Guide chute: equipped

Total weight: 4200kgs

Dimension: 5000*1980*2750mm

Warranty: 1 year

OEM: Accepted

Pre-sales Service

* Inquiry and consulting support.

*Sample testing support.

*View our factory.

After-sales Service

*Training how to install the machine, how to use the machine.
