Drum Self-loading Beton Mixer
- Payment Type:
- T/T
- Incoterm:
- FOB, CIF
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 10 Days
- Transportation:
- Ocean, Land
- Port:
- ChongQing, ShangHai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | ChinaQing, China |
|---|---|
| Payment Type: | T/T |
| Incoterm: | FOB,CIF |
| Certificate: | ISO9001 |
| HS Code: | 8474310000 |
| Transportation: | Ocean,Land |
| Port: | ChongQing,ShangHai |

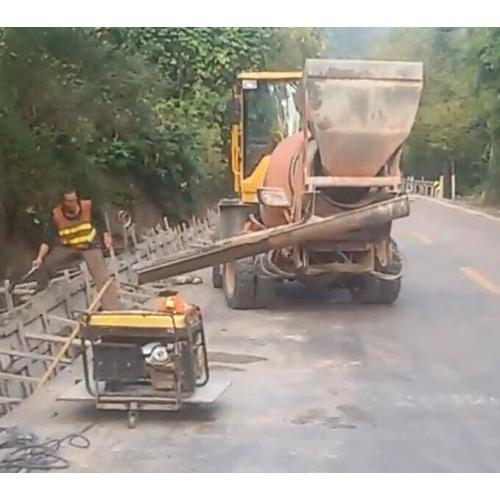

Mobile diesel concrete mixer, drum type mobile concrete mixer, because of hydraulic shovel, this mixer can load the material easily and accurately. There is a blade in the shovel so that the cement bag can be cut automatically to avoid waste of material.
The efficiency retating mixer just need one operator to drive, load, and mix raw material while moving it. It has a higher working efficiency, higher mixing effect. At the same time, it greatly reduces the labor cost and working time.

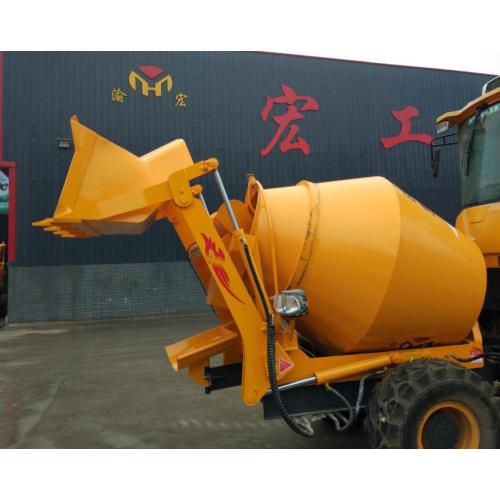

Loading: Because of hydraulic shovel, this mixer can load the material easily and accurately. Inside blade can tear the cement bag to avoid material waste.
Mixing : After the aggregate and cement are fed into the mixing barrel, they will be mixed with the pressed water from the double water tanks which are on the truck. The specially designed double screw to confirm the quality of concrete;
Transport: This mixer is fit for any working site because of its 4 wheel hydraulic drive system and favorable configuration. Also mixing during towing. It can crawl on the 35 degree slope at a full load situation;
Driving cab: There is a well appointed cab. The driver can operate almost all the actions through a handle shank.
Brake: Disc brake system for safe working.
Type: drum type concrete mixer is available for sale
Technical Parameter:
Engine Model: Quancai 490
Rated speed: 2400ram
Engine power: 38kw
Max output torque: 3600n/m
Hydraulic system flow: 42-63ml/r
Hydraulic rated pressure: 16mpa
Max turing radius: 20degree
Max working slope: 35 degree
Max towing speed: 20km/h
Max loaded volume: 1CBM
Feeding funnel raise time: ≤4sec
Feeding funnel fall time: ≤3sec
Mixer diameter: 1700mm
Mix full drum time: ≤ 2 min
discharge height: 800mm
Cab configuration: standard
Tire spec: 14/90-16
Brake configuration: disc brake
Guide chute: equipped
Total weight: 4200kgs
Dimension: 5000*1980*2750mm
Warranty: 1 year
OEM: Accepted
Pre-sales Service
* Inquiry and consulting support.
*Sample testing support.
*View our factory.
After-sales Service
*Training how to install the machine, how to use the machine.
