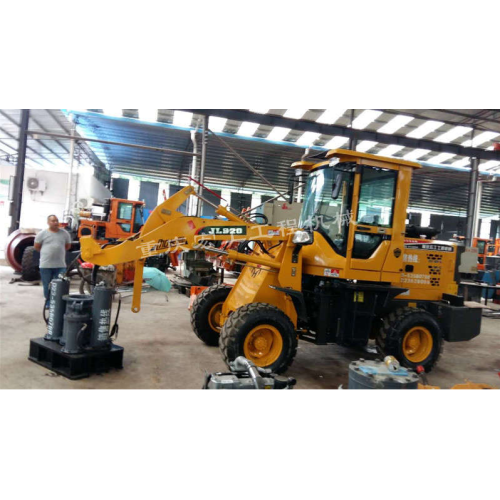

HG-BZ-80 type car-drawn pile machine

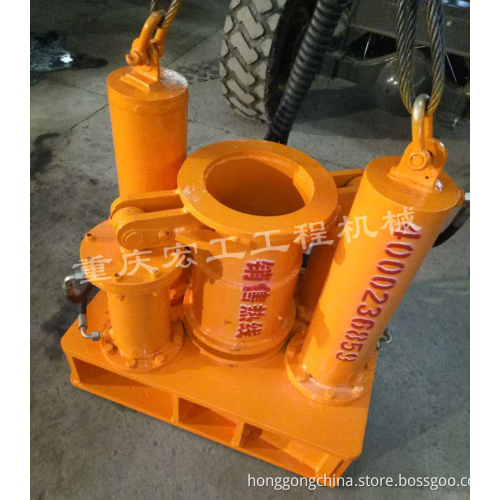

The utility model has a vehicle-mounted pile-pulling machine, including the walking mechanism with the carrier and the pile-pulling mechanism on the walking mechanism and the transverse transfer mechanism of the pile-pulling mechanism from the carrier platform to the outside of the carrier station, the pile-pulling mechanism comprises two piston down two pile-pulling cylinders and a bottom plate connecting the cylinder block of two pile-drawn cylinders together.

 The bottom plate is provided with a locking pile mechanism that locks the pile head, and the locking pile mechanism comprises a fixed sleeve fixed on the bottom plate and the same bushing is arranged outside the pile head and an active sleeve located in a fixed sleeve and the head of the pile is locked, and the bottom of the active sleeve is supported upward by the backplane or fixed sleeve.

 The structure of the fuselage is small, flexible operation, easy to travel suitable for highway anti-guardrail pile operation, and pull pile using full hydraulic operation, the road surface vibration is small, highway damage area is small.

• Pile drawing Speed (m/min) :1-1.5
• Power head output Maximum torque (n/m): None
• Air pressure (MPa) of empty Press
• Hydraulic system Flow (ML/R) :≤60
• System rated pressure (MPa) :16
• Dimensions (length * Width * height) (mm) :4150*2000*3000
• Machine quality (kg): 4200
