Off-road chassis Highway Guardrail Pile Driver
- Payment Type:
- T/T
- Incoterm:
- FOB, CIF
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Transportation:
- Ocean, Land
- Port:
- ChongQing, ShangHai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | ChongQing,China |
|---|---|
| Payment Type: | T/T |
| Incoterm: | FOB,CIF |
| Certificate: | ISO9001 |
| HS Code: | 8430100000 |
| Transportation: | Ocean,Land |
| Port: | ChongQing,ShangHai |

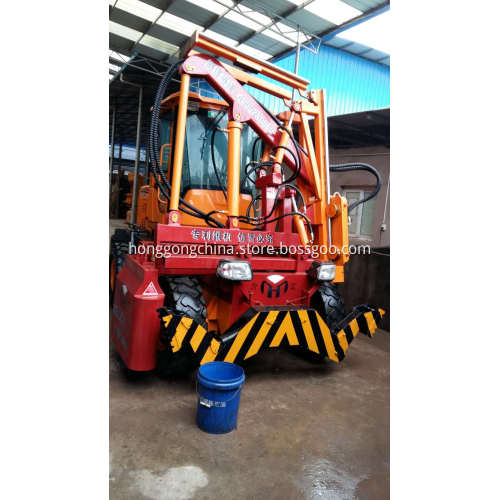

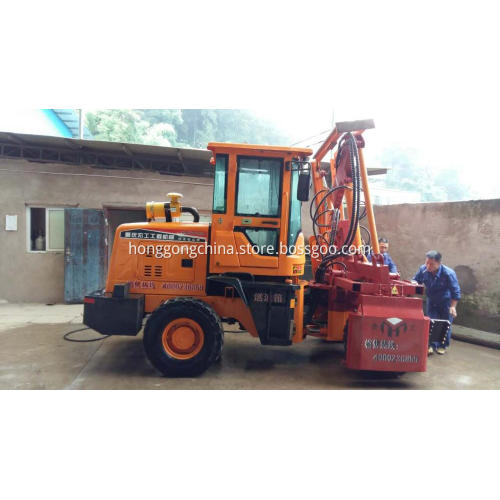

Off-road chassis base Highway Guardrail maintain machine installs the piling elements into ground. The hydraulically driven free-fall hammers of the H series are ideally suited for impact driving steel pipes, beams, sheet piles and precast concrete and timber piles. It also can be taken as a high-grade highway fence maintemance of special vehicles, highway crash barrier maintenance products.
Automatic pile driver machine Technical Parameter:
Engine model: Quancai490
Engine power: 38kw
Hydraulic system flow: 42-63ml/r
Max output torque: 3600n/m
Hydraulic rated pressure: 16Mpa
Max turing radius: 20degree
Max working slope: 35 degree
Tire spec: 20.5/70-16
Brake configuration: Disc brake
Hydraulic hammer weight: 220kgs
Hydraulic hammer working flow: 60-100 l/m
Hydraulic hammer working pressure: 13-16 Mpa
Hydraulic hammer impact frequency: 500-900Hz
Total weight: 3200kgs
Dimension(L*W*H): 4230*2480*2930mm
