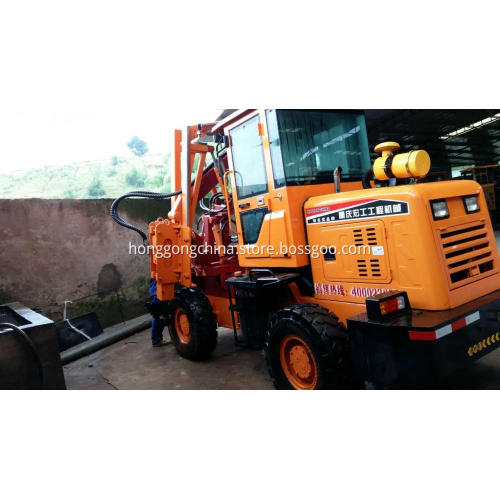

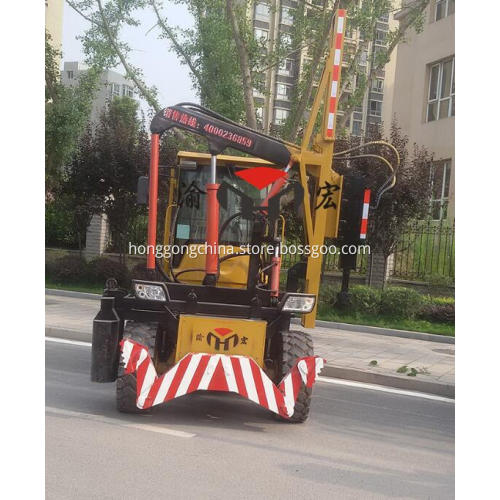

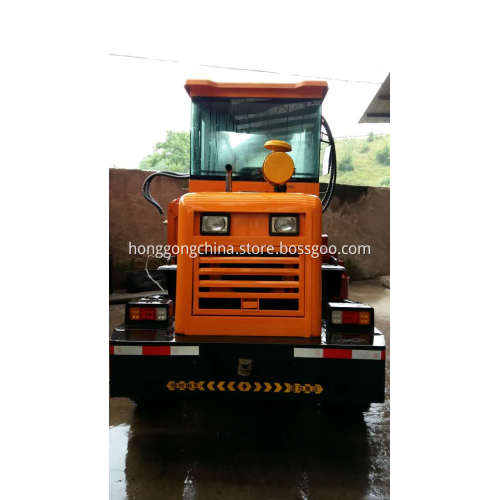

Hydraulic Pile Drive for Highway Guardrail
- Payment Type:
- T/T
- Incoterm:
- FOB, CIF
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Transportation:
- Ocean, Land
- Port:
- ChongQing, ShangHai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | ChongQing,China |
|---|---|
| Payment Type: | T/T |
| Incoterm: | FOB,CIF |
| Certificate: | ISO9001 |
| HS Code: | 8430100000 |
| Transportation: | Ocean,Land |
| Port: | ChongQing,ShangHai |
It is easy for people to learn how to drive hydraulic pile driver to provide support for highway, road, using heavy equipment with a pile driver head. The vehicle dynamic performance, low fuel consumption, braking performance and reliable. Piling position accuracy, speed, simple operation, easy maintenance, good hydraulic performance.
Hydraulic road guardrail piling machine Technical Parameter:
Engine model: Quancai490
Engine power: 38kw
Hydraulic system flow: 42-63ml/r
Max output torque: 3600n/m
Hydraulic rated pressure: 16Mpa
Max turing radius: 20degree
Max working slope: 35 degree
Tire spec: 20.5/70-16
Brake configuration: Disc brake
Hydraulic hammer weight: 220kgs
Hydraulic hammer working flow: 60-100 l/m
Hydraulic hammer working pressure: 13-16 Mpa
Hydraulic hammer impact frequency: 500-900Hz
Total weight: 3200kgs
Dimension(L*W*H): 4230*2480*2930mm
