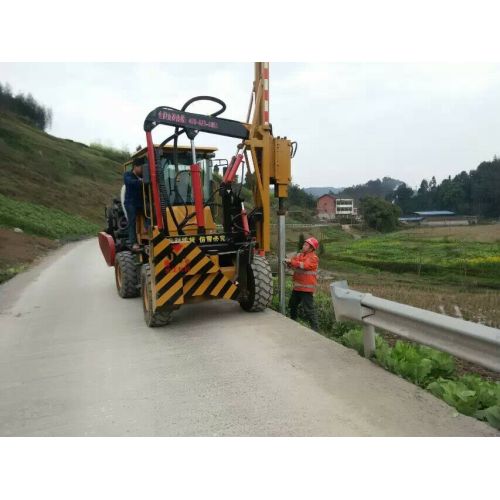

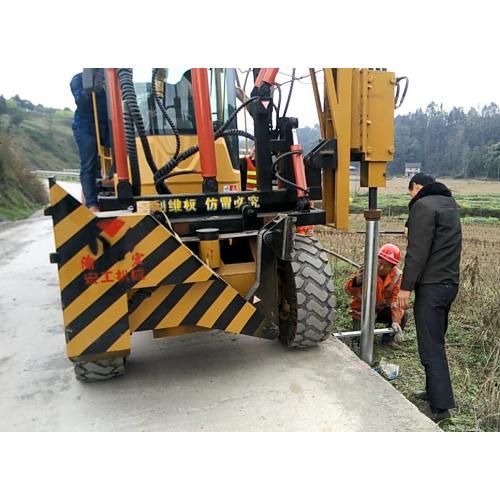

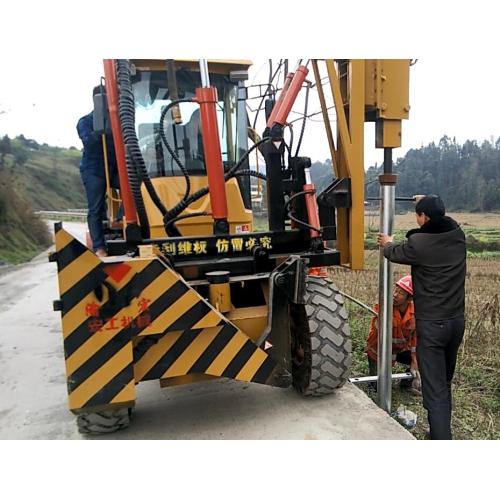

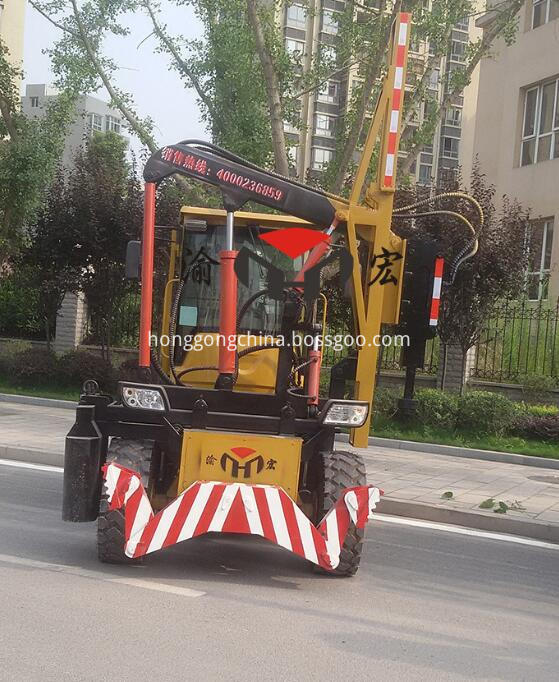

Mini Tractor-trailer Pile Driver

Mini tractor-trailer impact pile driver is widely used for new construction, or hydraulic pile driver for highway guardrail repairing, automatic Pile driver machine operators need to have the ability and physical coordination to operate complex machinery. These operators must be good communicators, because taking and giving direction is a major part of the job. Many surprises can occur on a construction site, so critical thinking skills and quick thinking are necessary for pile driver operators.

Hydraulic Pile Driver Technical Parameter:

Engine model: Quancai490

Engine power: 38kw

Hydraulic system flow: 42-63ml/r

Max output torque: 3600n/m

Hydraulic rated pressure: 16Mpa

Max turing radius: 20degree

Max working slope: 35 degree

Tire spec: 20.5/70-16

Brake configuration: Disc brake

Hydraulic hammer weight: 220kgs

Hydraulic hammer working flow: 60-100 l/m

Hydraulic hammer working pressure: 13-16 Mpa

Hydraulic hammer impact frequency: 500-900Hz

Total weight: 3200kgs

Dimension(L*W*H): 4230*2480*2930mm
