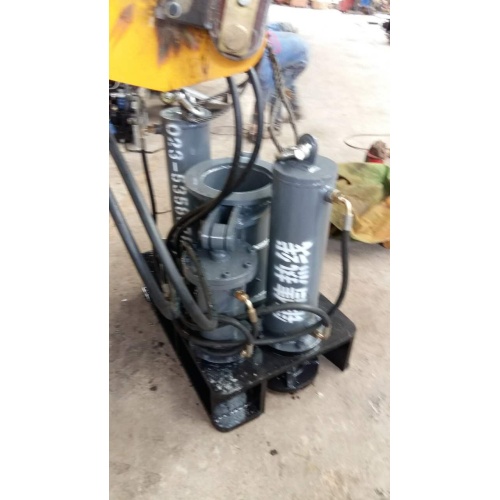

Closed Loop Pile Extractor

Whether you've installed tubes/temporary xasings, sheet piles, or timber piles, we have a range of piling equipment to assist in their extraction. HongGong Company's highway pile extractor can pull the pile of out the ground without cut/damage the piles and do not damage the road suface, the pulled piles could be re-used. The highway guardrail pile extractor helps saving material and repair cost for contractor or invester.

Hydraulic pile extractor Technical Parameter:

Engine model: Quancai490

Engine power: 38kw

Hydraulic system flow: 42-63ml/r

Max output torque: 3600n/m

Hydraulic rated pressure: 16Mpa

Max turing radius: 20degree

Max working slope: 35 degree

Tire spec: 20.5/70-16

Brake configuration: Disc brake

Hydraulic hammer weight: 220kgs

Hydraulic hammer working flow: 60-100 l/m

Hydraulic hammer working pressure: 13-16 Mpa

Hydraulic hammer impact frequency: 500-900Hz

Total weight: 3200kgs

Dimension(L*W*H): 4230*2480*2930mm
