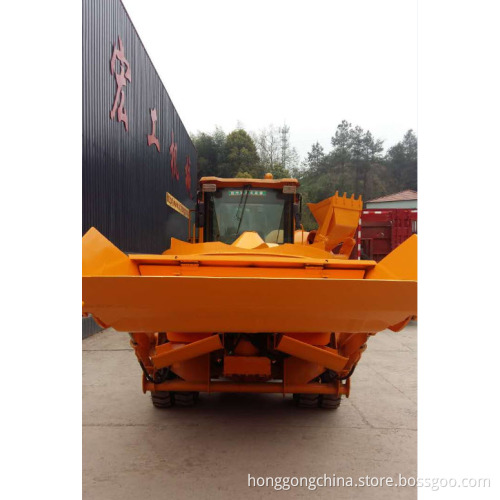

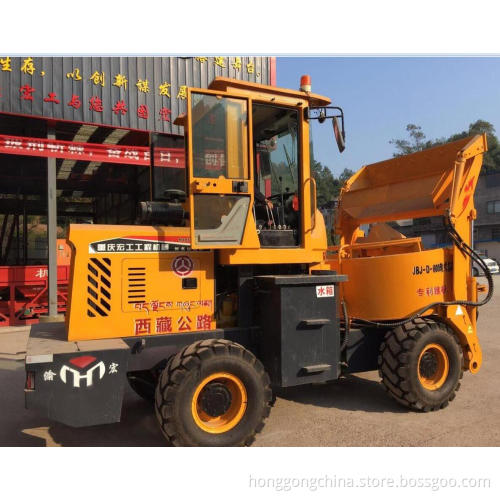

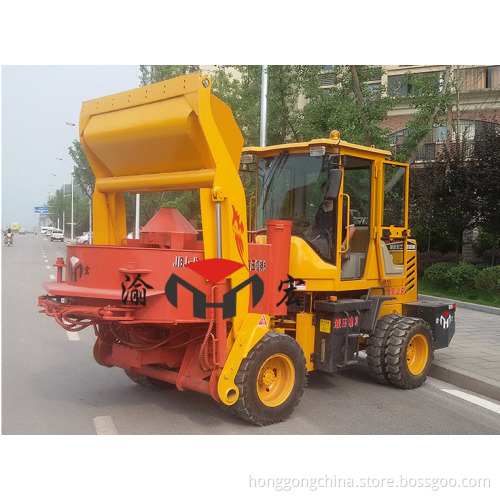

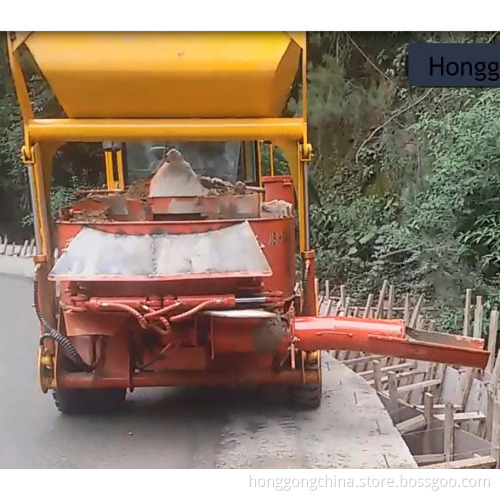

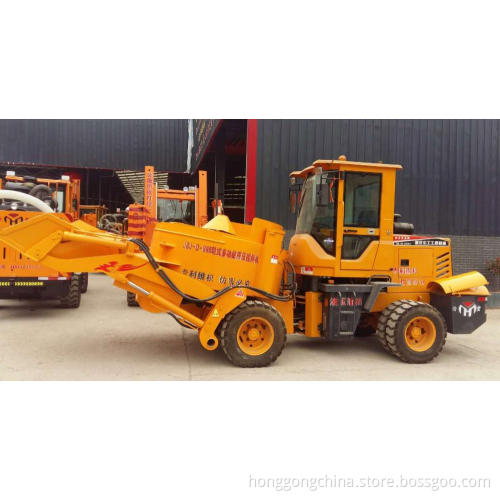

Hydraulic Mobile Concrete Mix Machine

On the construction site, to use Drum Type Mobile Concrete Mixer, which can increase profits by paying less of concrete, have better control over your schedule and employee time. Expand the type of concrete applications you can offer as part of your business with one mixer unit or do multiple jobs without having to come back to the plant between jobs. Besides drum type, our factory sell Portable Millstone Type Concrete Mixer too.

Loading: Because of hydraulic shovel, this mixer can load the material easily and accurately. Inside blade can tear the cement bag to avoid material waste.

Mixing : After the aggregate and cement are fed into the mixing barrel, they will be mixed with the pressed water from the double water tanks which are on the truck. The specially designed double screw to confirm the quality of concrete;

Transport: Mobile Concrete Mixer is fit for any working site because of its 4 wheel hydraulic drive system and favorable configuration. Also mixing during towing. It can crawl on the 35 degree slope at a full load situation;

Driving cab: There is a well appointed cab. The driver can operate almost all the actions through a handle shank.

Brake: Disc brake system for safe working.

Type: Portable Millstone Type Concrete Mixer is available for sale

Technical Parameter:

Engine Model: Quancai 490

Rated speed: 2400ram

Engine power: 38kw

Max output torque: 3600n/m

Hydraulic system flow: 42-63ml/r

Hydraulic rated pressure: 16mpa

Max turing radius: 20degree

Max working slope: 35 degree

Max towing speed: 20km/h

Max loaded volume: 0.7CBM

Feeding funnel raise time: ≤4sec

Feeding funnel fall time: ≤3sec

Mixer diameter: 1700mm

Mix full drum time: ≤ 3 min

discharge height: 800mm

Cab configuration: standard

Tire spec: 14/90-16

Brake configuration: disc brake

Guide chute: equipped

Total weight: 4200kgs

Dimension: 5000*1980*2750mm

Warranty: 1 year

Pre-sales Service

* Inquiry and consulting support.

*Sample testing support.

*View our factory.

After-sales Service

*Training how to install the machine, how to use the machine.

CHONGQING Honggong Construction MACHINERY Co.,ltd specializes in the design, production and sale of highway guardrail Pile extractor, Automatic Pile Driver, multi- Functional Highway Guardrail Pile Driver, Drum Type mobile Concrete Mixer, mobile Concrete Mixer and other series of equipment, at the lowest and most affordable price to sell, welcome to come to negotiate.
