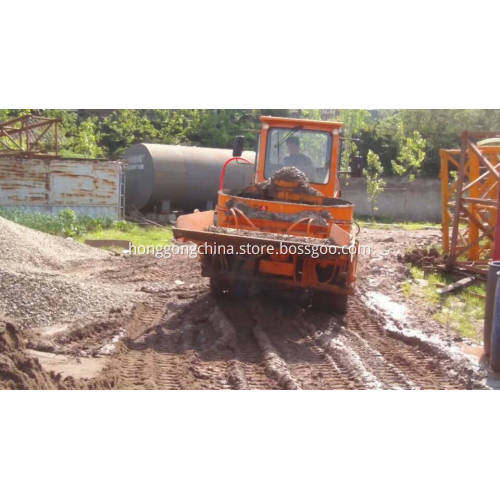

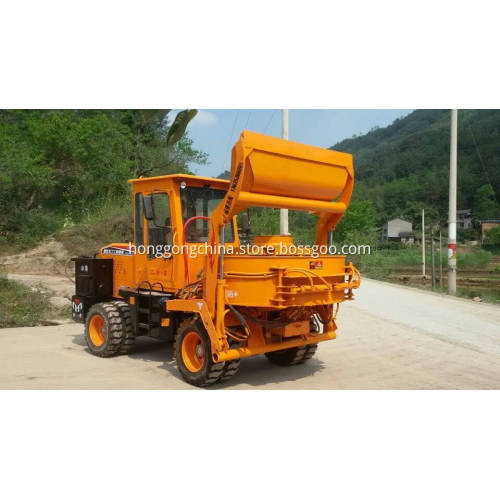

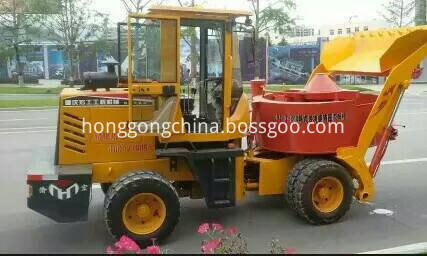

Millstone Type Concrete Tractor-mounted

A millstone type mobile concrete mixer offers you to option to own your personal concrete batch plant. When compared to traditional drum mixing, this type of solution sometimes can be the best cost-effective solution and time-saving equipment. If your concrete work is just a couple of cubic meters a week or a day, then this can be the right equipment for you to have. Instead of worrying about moving parts, equipment, conveying equipment, front-end loaders, and some other equipment, this solution brings everything under one single truck.Sometimes, instead of owning this equipment, you can even rent it out.

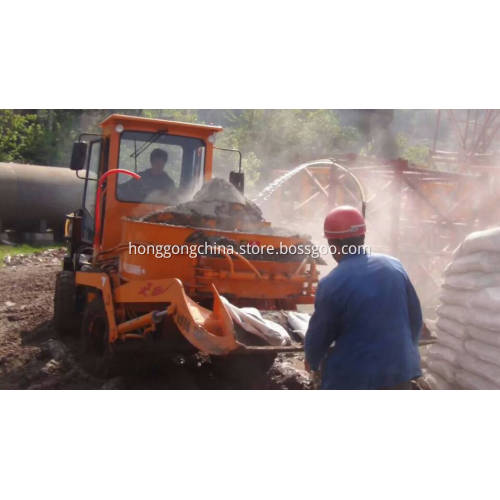

Loading: Because of hydraulic shovel, this mixer can load the material easily and accurately. Inside blade can tear the cement bag to avoid material waste.

Mixing : After the aggregate and cement are fed into the mixing barrel, they will be mixed with the pressed water from the double water tanks which are on the truck. The specially designed double screw to confirm the quality of concrete;

Transport: This mixer is fit for any working site because of its 4 wheel hydraulic drive system and favorable configuration. Also mixing during towing. It can crawl on the 35 degree slope at a full load situation;

Driving cab: There is a well appointed cab. The driver can operate almost all the actions through a handle shank.

Brake: Disc brake system for safe working.

Type: Millstone type concrete mixer is available for sale

Technical Parameter:

Engine Model: Quancai 490

Rated speed: 2400ram

Engine power: 38kw

Max output torque: 3600n/m

Hydraulic system flow: 42-63ml/r

Hydraulic rated pressure: 16mpa

Max turing radius: 20degree

Max working slope: 35 degree

Max towing speed: 20km/h

Max loaded volume: 0.7CBM

Feeding funnel raise time: ≤4sec

Feeding funnel fall time: ≤3sec

Mixer diameter: 1700mm

Mix full drum time: ≤ 3 min

discharge height: 800mm

Cab configuration: standard

Tire spec: 14/90-16

Brake configuration: disc brake

Guide chute: equipped

Total weight: 4200kgs

Dimension: 5000*1980*2750mm

Warranty: 1 year

Pre-sales Service

* Inquiry and consulting support.

*Sample testing support.

*View our factory.

After-sales Service

*Training how to install the machine, how to use the machine.
