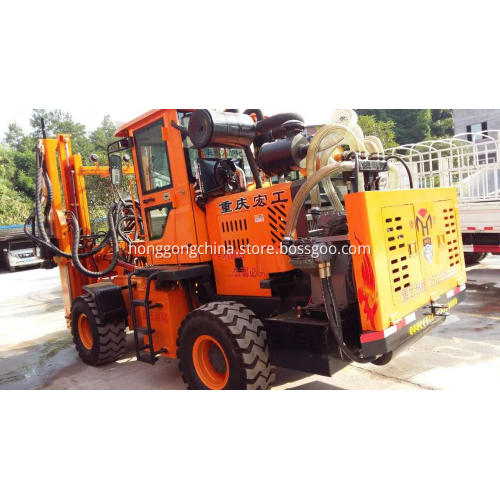

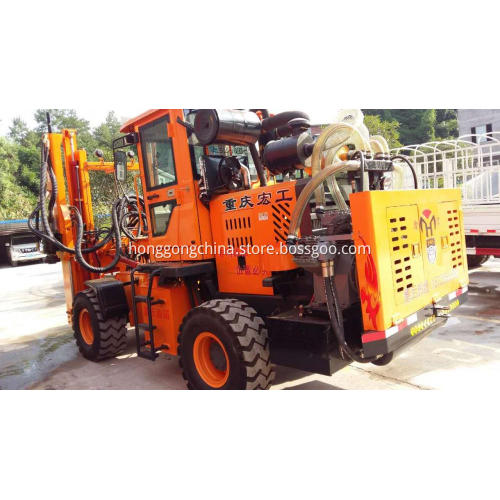

Highway Guardrail Wheel Pile Driver

Strictly speaking, a pile driver with piston iar-compressor is any device that drives poles/piles into the ground to add foundation support. The most basic version of a automatic pile driver machine is simply a guided weight placed on a pole, which is then raised into the air and driven down onto a pole. These devices have been used in the construction field for many years and many different models exist.

Our hydraulic Pile Driver is composed of  chassis, hydraulic system, hydraulic hammer, diesel engine, electrical, cooling and control system, pile extracting equipment and pile drilling equipment, dedusting system, portal frame. Its characteristics include quick and exact positioning, compact size, lightweight, self-propelled, agile, ergonomic design, easy operation, high efficiency and competitive price.

The dust free pile driver has a very famous quancai brand diesel engine with electric starting equipped, has stable performance, simple operation and maintenance and a very long service life.

Post Driving Function: Yuhong Series Pile Driver is designed to install and maintain highway anti-collision guard rails ,is especially applicable for driving the guardrail post in newly constructing highways.

Post Extracting Function: With the same hydraulic system for extracting poorly driven or incorrectly positioned posts in road maintenance work, it is a professional machine for the extraction of posts from any surface condition.

Post Drilling Function: This equipment can drill holes into concrete, rock, granite and any other very hard road materials, and then easily install the posts.

Dedusting system: the unique design on our machine is healthy for both human and nature enviroment

As the pile driving, extracting and drilling equipment all share one chassis, it is the most economical investment for getting all three functions. You can install any accessory onto the chassis according to your working need.

Technical Parameters:

Engine Model: QuanCai 4108

Engine rated power: 83Kw

Rated speed: 2400r/m

Max output torque:4200n/m

Hydraulic system flow: 40-65 ml/r

Hydraulic rated pressure: 16Mpa

Drive system: 4 wheel drive

Max turing radius: 5000mm

Drill bit sliding extra route: 380mm

Hydraulic hammer sliding extra route: 500mm

Dedusting system: suction system

Air compressor method : Piston type

Max working slope: 35 degree

Cab configuration: standard

Tire spec: 20.5/70-16

Brake configuration: Disc + automatically air-cut brake

Drilling diameter: 80-200mm

Drilling depth: 0-2100mm

Drilling capacity: 320 holes/day

Hydraulic hammer weight: 220kg

Hydraulic hammer impact frequency: 500-900Hz

Hydraulic hammer working flow : 60-100 l/min

Working pressure of hydraulic hammer : 13-16 Mpa

Max forward angular of frame: 12 degree

Max backwards angular of frame: 16 degree

Astern display: equipped

Emission standard: China III

Total Weight: 5000kgs

Dimension(L*W*H): 4910* 2350*3000mm

Warranty: 1 year

Pre-sales Service

* Inquiry and consulting support.

*Sample testing support.

*View our factory.

After-sales Service

*Training how to install the machine, how to use the machine.
