Product Description
Product Description

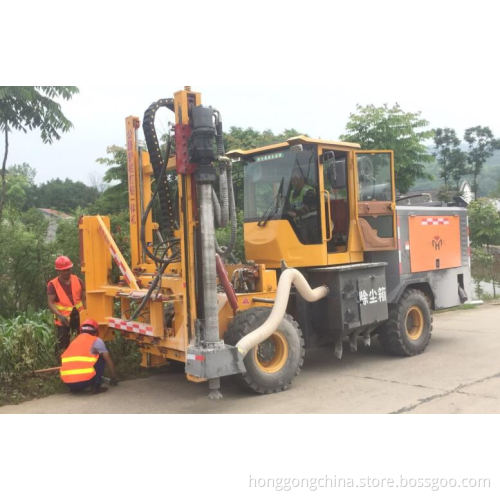

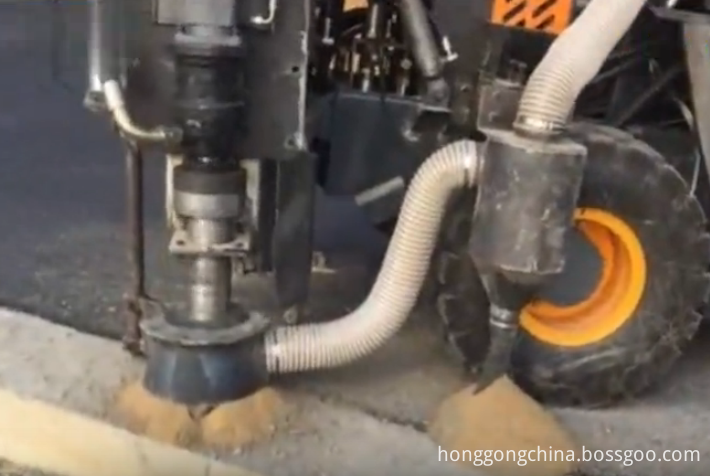

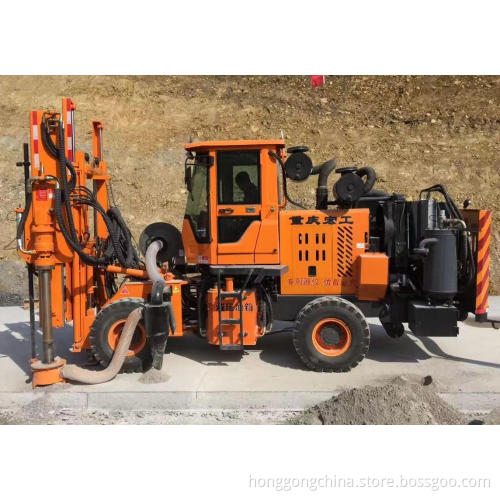

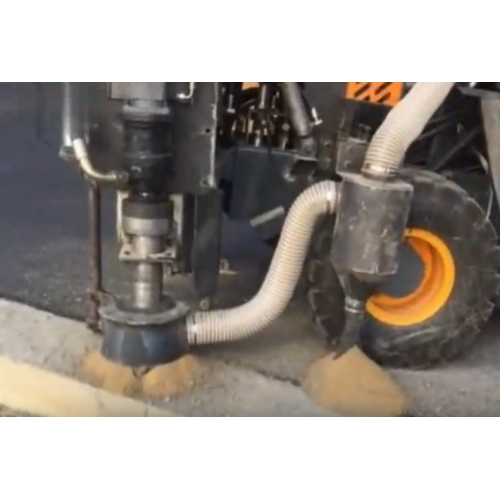

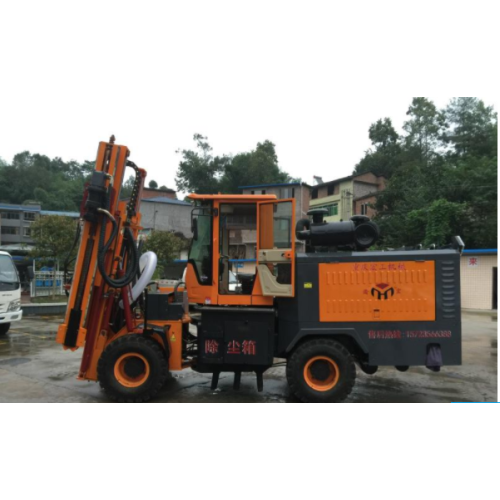

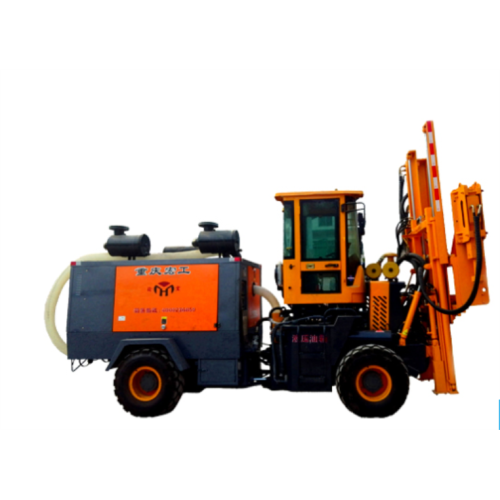

Drilling and dedusting All-in-one machine, side drilling, Edge dust, protect the ecological environment, everyone has Responsibility.
Engine power 140+59kw
Rated engine speed 2300r/m
Power head output Maximum torque 4500n/m
Hydraulic system Flow 120ML/R
System rated pressure 16MPA
Drive Unit 4 Drive
Maximum turning radius 6300mm
Screw compressor air pressure 1.3MPA
Air consumption 15m³/min of screw compressors
Drill Hole Extension Value 380mm
Pile Hammer Work Extension value 500mm
Air Compressor Model 15-13
Maximum slope 35degree
Brake configuration disc brake + expired brake
Bore diameter 0-200mm
Drilling depth 0-2100mm
Weight of hydraulic hammer 220kg
Hydraulic Hammer Shock Frequency 500-900hz
Hydraulic Hammer working Flow 60-100 l/min
Hydraulic Hammer Working Pressure 13-16mpa
Max forward Tilt Angle 12degree
Max Tilt Angle 16degree
Overall weight 5700kg Overall dimensions 5450*2340*2700mm
