Tyre Moving Pile Driver

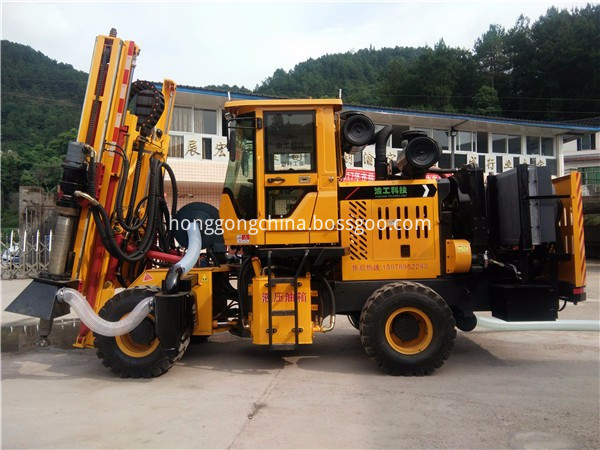

. This portal frame designed with screw air-compressor highway guardrail pile driver is available in a maximum drilling  depth of 2100mm, a drilling diameter of 200mm . Our engineers could add or remove any other functional part according to your demand.

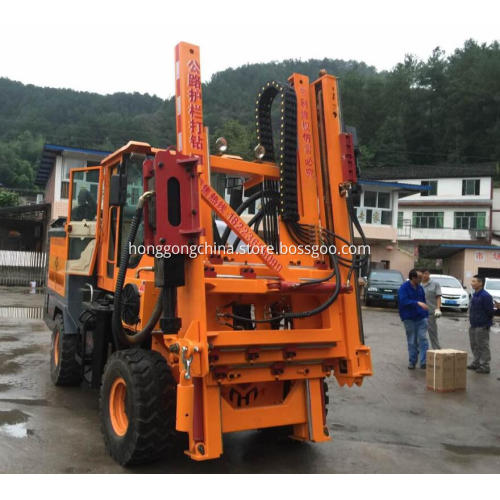

 Yuhong Series hydraulic pile driver is composed of the chassis, guide rail, hydraulic system, hydraulic hammer, diesel engine, electrical, cooling and control system, pile extracting equipment and pile drilling equipment, dedusting system, portal frame. Its characteristics include quick and exact positioning, compact size, lightweight, self-propelled, agile, ergonomic design, easy operation, high efficiency and competitive price.

Our hydraulic oil impacting pile driver has a very famous weicai brand diesel engine with electric starting equipped, has stable performance, simple operation and maintenance and a very long service life.

The road drilling machine, drilling motor is hydraulically operated and the drill is pneumatically operated with an air compressor. The drilling equipment comprises of a hydraulic motor, connecting device, connecting rod, pneumatic percussion hammer and a drill bit.

Post Driving Function: Yuhong Series Pile Driver is designed to install and maintain highway anti-collision guard rails ,is especially applicable for driving the guardrail post in newly constructing highways.

Post Extracting Function: With the same hydraulic system for extracting poorly driven or incorrectly positioned posts in road maintenance work, it is a professional machine for the extraction of posts from any surface condition.

Post Drilling Function: This equipment can drill holes into concrete, rock, granite and any other very hard road materials, and then easily install the posts.

Dedusting system: the unique design on our machine is healthy for both human and nature enviroment.

As the pile driving, extracting and drilling equipment all share one chassis, it is the most economical investment for getting all three functions. You can install any accessory onto the chassis according to your working need.

Technical Parameters:

Engine Model: Weicai 6105

Engine rated power: 92Kw

Rated speed: 2300r/m

Max output torque:4500n/m

Hydraulic system flow: 40-65 ml/r

Hydraulic rated pressure: 16 Mpa

Drive system: 4 wheel drive

Max turing radius: 5000mm

Screw type air pressure: 0.8Mpa

Screw type air comsuption: 8 m3/min

Drill bit sliding extra route: 380mm

Hydraulic hammer sliding extra route: 500mm

Dedusting system: suction type

Air compressor method: screw type

Air compressor model: 8-10 upgrade

Max working slope: 35 degree

Cab configuration: luxury

Tire spec: 20.5/70-16

Brake configuration: Disc + automatically air-cut brake

Drilling diameter: 120-200mm

Drilling depth: 0-2100mm

Drilling Capacity: 320holes/day

Hydraulic hammper weight: 220kg

Hydraulic hammer impact frequency: 500-900Hz

Hydraulic hammer working flow: 60-100 l/min

Working pressure of hydraulic hammer : 13-16Mpa

Max forward angular of frame: 12 degree

Max backwards angular of frame: 16 degree

Astern display: equipped

Emission standard: China III

Total weight: 5200kgs

Dimension(L*W*H): 5050*2310*3180mm

Guard rail: equipped

Add cover for enginee and cooling system

Warranty: 1 year

Pre-sales Service

* Inquiry and consulting support.

*Sample testing support.

*View our factory.

After-sales Service

*Training how to install the machine, how to use the machine.
