Hydraulic Vibrating Pile Driver

Hydraulic road guardrail piling machine work is very physical and involves climbing, kneeling, lifting and squatting. Work is done inside and outside, depending on the construction. Travel is often required. Pile drivers work where it is warm and dry, cold and wet, and at depths of 100feet below or above ground. We offer a wide range of new equipment online and customize our offer to your specific wishes.

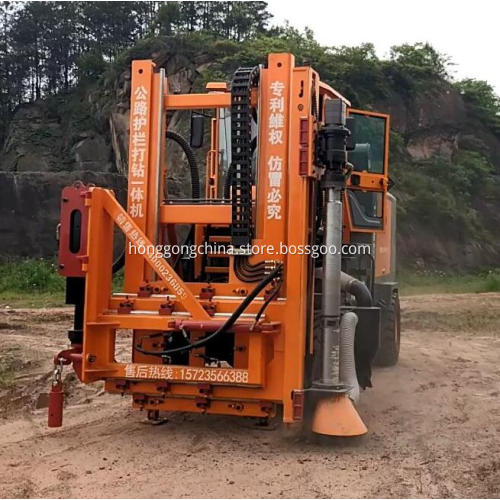

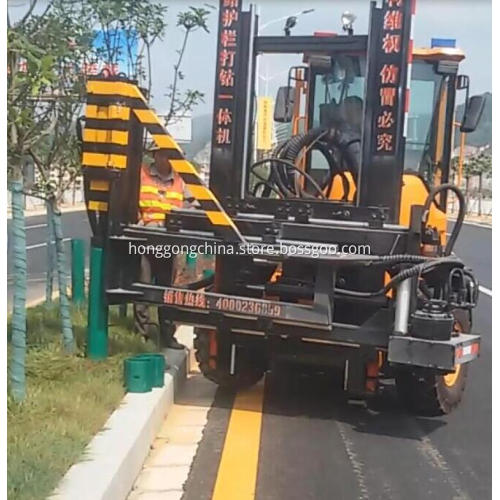

Post Driving Function: Yuhong Series multi-functional highway guardrail pile driver is designed to install and maintain highway anti-collision guard rails ,is especially applicable for driving the guardrail post in newly constructing highways.

Post Extracting Function: With the same hydraulic system for extracting poorly driven or incorrectly positioned posts in road maintenance work, it is a professional machine for the extraction of posts from any surface condition.

Post Drilling Function: This equipment can drill holes into concrete, rock, granite and any other very hard road materials, and then easily install the posts.

Dedusting system: the unique design on our machine is healthy for both human and nature enviroment.

As the pile driving, extracting and drilling equipment all share one chassis, it is the most economical investment for getting all three functions. You can install any accessory onto the chassis according to your working need.

Technical Parameters:

 Engine model: Yucai 6108+ yunnei 4100

Engine rated power: (140+59)kw

Rated speed: 2300r/m

Max output torque: 4500n/m

Hydraulic system flow: 120ml/r

Hydraulic rated pressure: 16Mpa

Drive system: 4wheel drive

Max turing radius: 6300mm

Screw tpe air pressure: 1.3Mpa

Screw type air consumption: 15 m3/min

Drill bit sliding extra route: 380mm

Hydraulic hammer sliding extra route : 500mm

Dedusting system: suction type

Air compressor method: screw type

Air compressor model: 15-13

Max working slope: 35 degree

Cab configuration: luxury

Tire spec: 20.5/70-16

brake configuration: Disc + automatically air-cut brake
Drilling diameter: 0-200mm

Drilling depth: 0-2100mm

Drilling capacity: 320holes/day

Hydraulic hammer weight: 220kgs

Hydraulic hammer impact frequency: 500-900Hz

Hydraulic hammer working flow: 60-100 l/min

Working pressure of hydraulic hammer: 13-16 Mpa

Max forward angular of frame: 12 degree

Max backwards angular of frame: 16 degree

Astern display: yes

Emission standard: China III

Total weight: 5700kgs

Dimension (L*W*H):5450*2340*2700mm

Warranty: 1 year

Pre-sales Service

* Inquiry and consulting support.

*Sample testing support.

*View our factory.

After-sales Service

*Training how to install the machine, how to use the machine.
