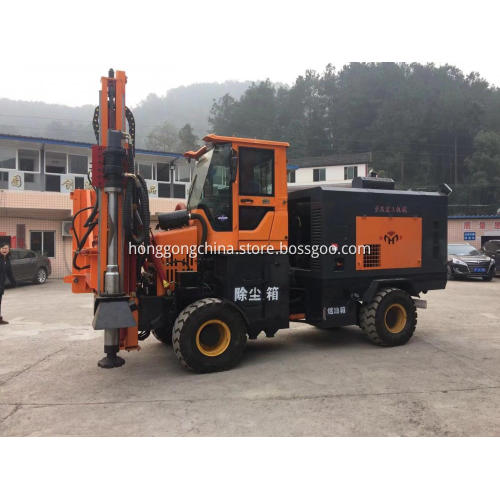

Wheeled Pile Driver for Guardrail Installation

Wheeled hydraulic pile driver for guardrail installation, enjoys the common features of pile driver such as high efficiency, energy saving, environmental-friendly etc, Besides, unique design of clamping mechanism for each jaw to be adjusted with the shaft bearing surface to ensure the largest contact area with the pile avoid damaging the pile.

Yuhong Series automatic pile driver machine is composed of the chassis, guide rail, hydraulic system, hydraulic hammer, diesel engine, electrical, cooling and control system, pile extracting equipment and pile drilling equipment, dedusting system, portal frame. Its characteristics include quick and exact positioning, compact size, lightweight, self-propelled, agile, ergonomic design, easy operation, high efficiency and competitive price.

Hydraulic oil impacting pile driver has a very famous yucai brand diesel engine with electric starting equipped, has stable performance, simple operation and maintenance and a very long service life.

The road drilling machine, drilling motor is hydraulically operated and the drill is pneumatically operated with an air compressor. The drilling equipment comprises of a hydraulic motor, connecting device, connecting rod, pneumatic percussion hammer and a drill bit.

Post Driving Function: Yuhong Series Pile Driver is designed to install and maintain highway anti-collision guard rails ,is especially applicable for driving the guardrail post in newly constructing highways.

Post Extracting Function: With the same hydraulic system for extracting poorly driven or incorrectly positioned posts in road maintenance work, it is a professional machine for the extraction of posts from any surface condition.

Post Drilling Function: This equipment can drill holes into concrete, rock, granite and any other very hard road materials, and then easily install the posts.

Dedusting system:  the unique design on our machine is healthy for both human and nature enviroment.

As the pile driving, extracting and drilling equipment all share one chassis, it is the most economical investment for getting all three functions. You can install any accessory onto the chassis according to your working need.

Technical Parameters:

Engine model: YC6A180Z/T21+yunnei4100

Engine rated power: (140+59)kw

Rated speed: 2300r/m

Max output torque: 4200n/m

Hydraulic system flow:120ml/r

Hydraulic rated pressure: 16Mpa

Drive system: 4 wheel drive

Max turing radius: 6300mm

Screw type air compressor pressure: 1.0Mpa

Screw type air consumption: 12m3/min

Drill bit sliding extra route: 350mm

Hydraulic hammer sliding extra route: 500mm

Stop block:100-200mm

Dedusting system: suction type

Air compressor method: screw type

Air compressor model: 15-13

Max working slope: 25-30 degree

Cab configuration: luxury

Tyre spec: 20.5/70-16

Tyre pressure: <3.5Mpa

Brake configuration: Disc+automatically air-cut brake

Drilling diameter: 0-300mm

Drilling speed:1000-1500mm/min

Drilling depth: 0-1500mm

Hydraulic hammer weight: 220kg

Hydraulic hammer impact frequency: 500-900Hz

Hydraulic hammer working flow: 60-100 l/min

Working pressure of hydraulic hammer: 13-16 Mpa

Max forward angular of frame: 30 degree

Max backwards angular of frame: 30 degree

Astern display: yes

Emission Standard: China III

Total weight: 5500kgs

Dimension(L*W*H):565*2000*3000mm

Warranty: 1 year

Pre-sales Service

* Inquiry and consulting support.

*Sample testing support.

*View our factory.

After-sales Service

*Training how to install the machine, how to use the machine.
