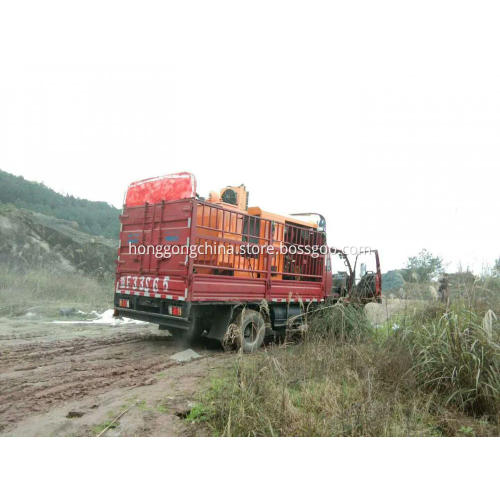

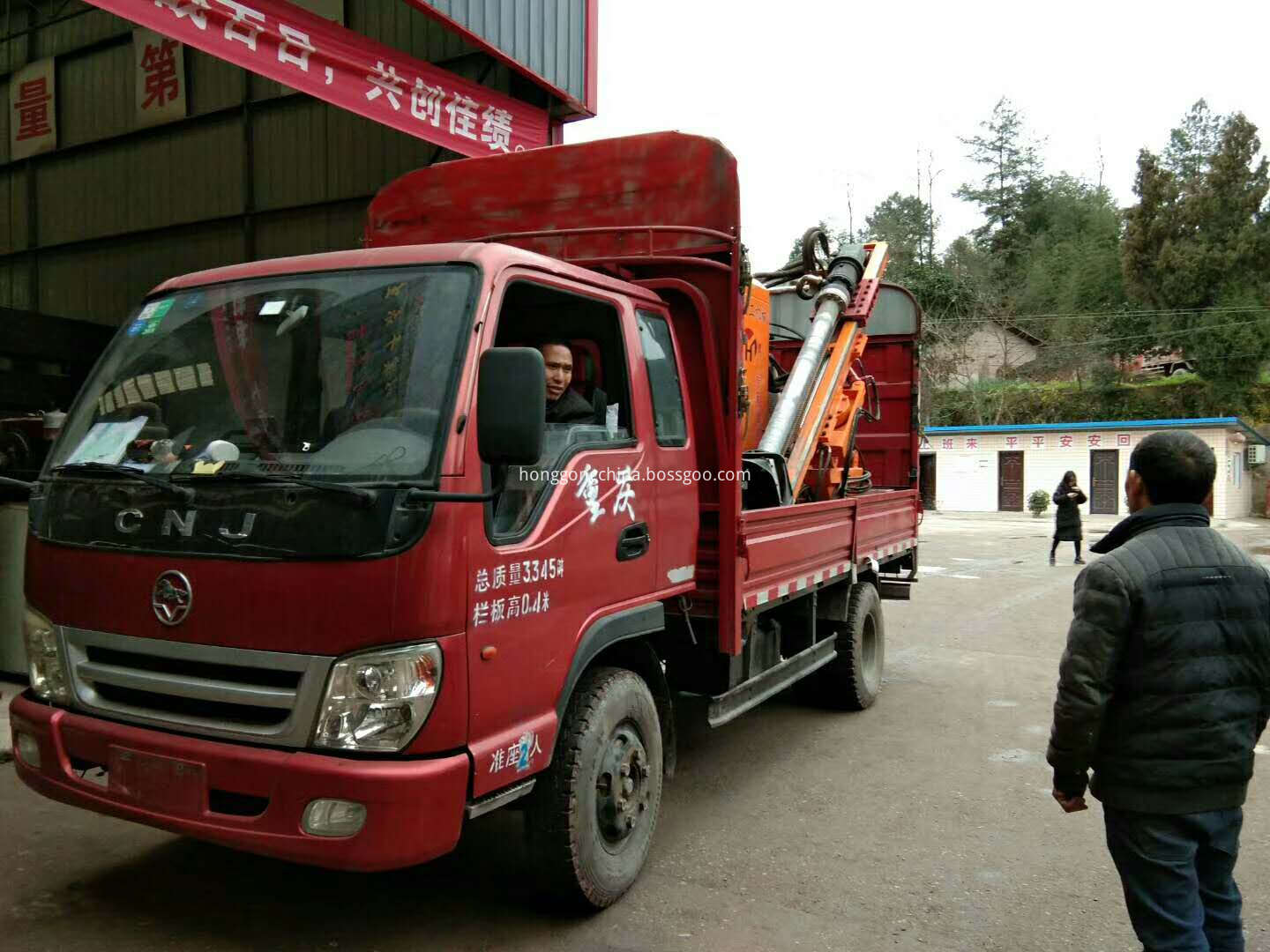

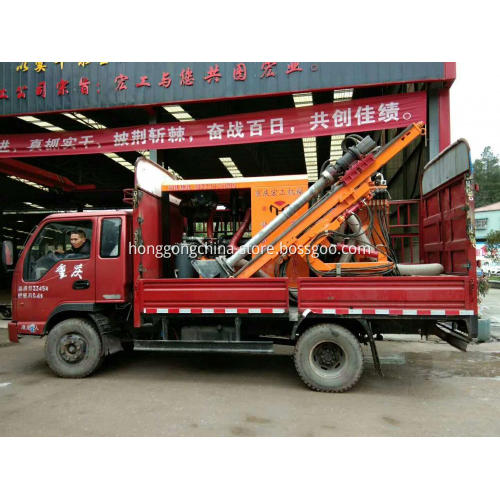

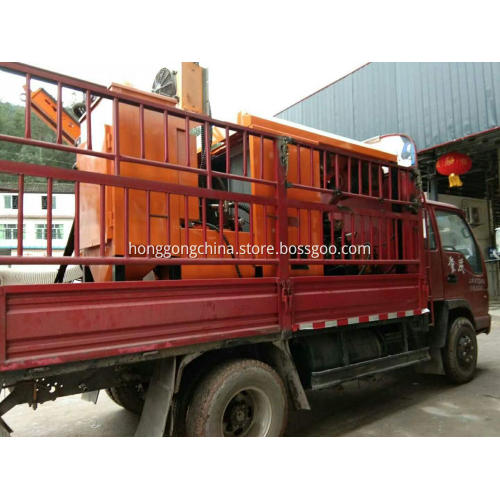

Truck-mounted Hydraulic Pile Driver

To install highway guardrail to protect lives, need well drilled holes to save time and increase efficient. China HongGong producted truck-mounted hydraulic drilling machine,hydraulic road guardrail piling machine with high enginee power, smoothly and vertically hole drilling capacity helped contractors' projects, make them easier to get more new projects.

Yuhong Series truck-mounted pile driver with piston air-compressor is composed of truck(could be supplied by customer), hydraulic system, hydraulic hammer, cooling and control system, pile drilling equipment, dedusting system,  Its characteristics include quick and exact positioning, compact size, lightweight, self-propelled, agile, ergonomic design, easy operation, high efficiency and competitive price.

Truck mounted highway guardrail drilling machine has stable performance, simple operation and maintenance and a very long service life.

Post Drilling Function: This equipment can drill holes into concrete, rock, granite and any other very hard road materials, and then easily install the posts.

Dedusting system: the unique design on our machine is healthy for both human and nature enviroment.

Engine model: Yucai6105+Yunnei 4100

Engine rated power: (110+59) kw

Rated speed: 2300 r/m

Max output torque: 4500n/m

Hydraulic system flow: 120ml/r

Hydraulic rated pressure: 16Mpa

Drive system: 4 wheel drive

Max turing radius: 6300mm

Screw type air pressure: 1 Mpa

Screw type air consumption: 12 m3/min

Drill bit sliding extra route: 380mm

Hydraulic hammer sliding extra route : 500mm

Dedusting system: suction type

Air compressor method: screw type

Air compressor model: 12-10

Max working slope: 35 degree

Cab configuration: luxury

Tire spec: 20.5/70-16

Brake configuration: Disc + automatically air-cut brake

Drilling diameter: 0-200mm

Drilling depth: 0-2100mm

Drilling Capacity: 320holes/day

Hydraulic hammer weight: 220 kgs

Hydraulic hammer impact frequency: 500-900Hz

Hydraulic working flow: 60-100 l/min

Working pressure of hydraulic hammer: 13-16 Mpa

Max forward angular of frame: 12 degree

Max backwards angular of frame: 16 degree

Astern display: yes

Emission standard: China III

Total weight: 5500 kgs

Dimension(L*W*H): 5450*2340*2700mm

Warranty: 1 year.

Pre-sales Service

* Inquiry and consulting support.

*Sample testing support.

*View our factory.

After-sales Service

*Training how to install the machine, how to use the machine.
