Highway guardrail Play rig

Get Latest Price

Payment Type:: T/T

Incoterm:: FOB, CIF

Delivery Time:: 10 Days

Transportation:: Ocean, Land

Port:: ChongQing, Shanghai Port

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	ChongQing, China
Payment Type:	T/T
Incoterm:	FOB,CIF
Certificate:	ISO9001
HS Code:	84310100000
Transportation:	Ocean,Land
Port:	ChongQing,Shanghai Port

Product Description

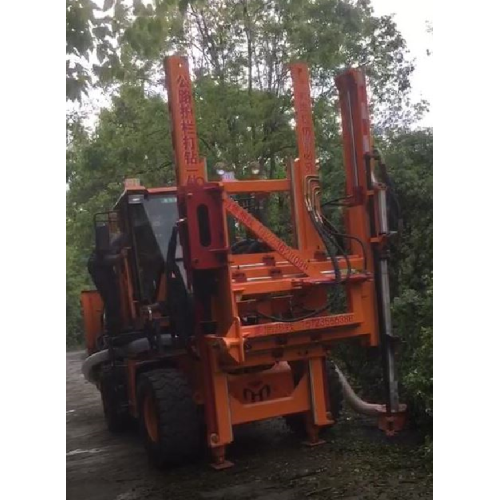

Highway guardrail drilling, piling and pile extracting

Highway field construction

Excellent structure, high strength, good stability

High positioning accuracy and fast piling speed

Simple operation, easy maintenance

Automatically walk,

Built with quality components from reputable, recognized brands, the range of machines are the best machines on the market. To ensure your machine is of the highest quality, each component is assessed. Choose Post Driver for a completely customizable and reliable guardrail machine.

Special features which will benefit the owner of pile drivers:

Custom built to suit the client`s requirements

Durable –pile drivers will easily last 10–15 years, installing thousands of piles, year after year.

Powerful – Machine uses Powerful Engine, hammer power is important in ensuring the pile is driven to the correct depth. .

Low running costs – you will get approximately 3 days` work to fill the fuel tank, with occasional oil changes and replacement of post heads. These are bigger, powerful, much quieter and more suited for continues running than other post drivers with air cooled engines. engines have lower servicing and low maintenance costs.

High functionality –machines have the best functionality of all pile drivers on the market, with the largest selection of attachments –concrete core drill attachments. These machines can be fitted with customised hammers to suit the ground conditions and pile type.

Highway guardrail Play rig

Accurate – the masts on these machines have a hydraulic side shift; this is a necessity to correctly place piles in place. Note, other machines don`t normally offer this feature.

Engine model: Weicai 6105

Engine rated power 92KW

Rated Speed:2300r/m

Max output torque:4500n/m

Hydraulic system flow:40-65ml/r

Hydraulic rated pressure: 16Mpa

Drive system: 4 wheel drive

Max turing radius: 5000mm

Screw type air pressure: 0.8Mpa

Screw type air comsuption: 10m3/min

Drill bit sliding extra route: 380mm

Hydraulic hammer sliding extra route: 500mm
