Yuhong portable pile driver

Get Latest Price

Payment Type:: T/T

Incoterm:: FOB, CFR

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 10 Days

Transportation:: Ocean, Land

Port:: Shanghai Port, Chongqing Port

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Chongqing,China
Supply Ability:	Strong supply capacity
Payment Type:	T/T
Incoterm:	FOB,CFR
Certificate:	ISD9001
HS Code:	8474310000
Transportation:	Ocean,Land
Port:	Shanghai Port,Chongqing Port

Product Description

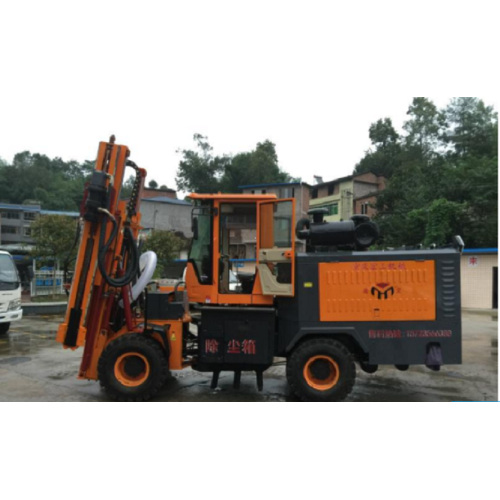

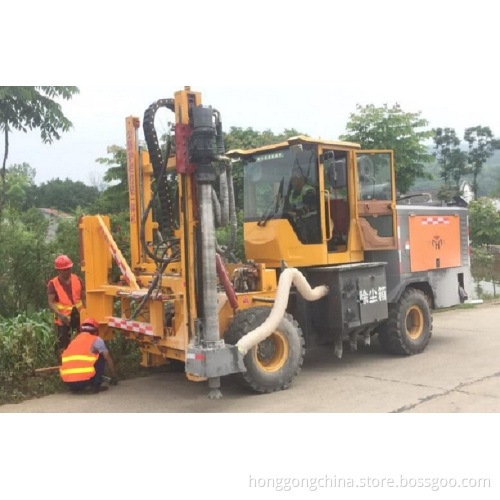

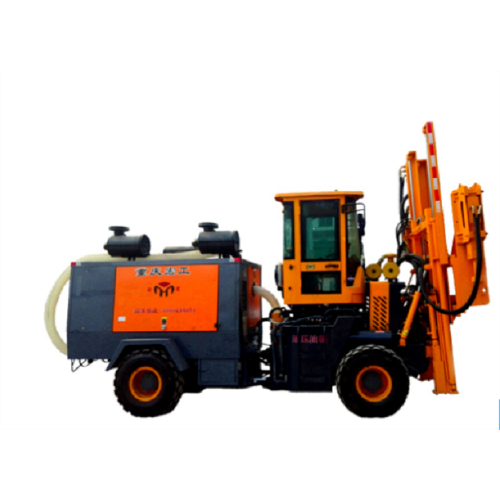

Multi-functional Highway Guardrail Pile Driver

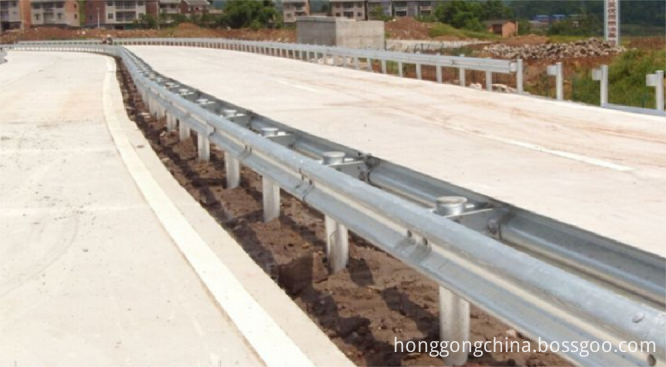

Highway hydraulic Pile driver in the completion of various types of complex strata of the highway guardrail installation operations, fully reflects its high quality, high efficiency, energy saving, high life and other characteristics.

The following is a description of the advantages of highway automatic Pile Driver machine: Hydraulic Pile driver is to use the impact of the pile into the formation as the main driving force, the use of diesel to provide power, hydraulic sensing to drive the mechanical work, the machine high efficiency, precision punching quality, small energy consumption, according to the formation hardness to adjust the punching strength and punching drill bit, In order to make better use of its work efficiency. The use of water-cooled heat dissipation, safer and more environmentally friendly, and has a stable temperature control, small failure rate. The fuselage design is reasonable, the perfect folding sliding rod better interprets the design idea of saving space and convenient transportation.
can also be configured according to the site needs for drilling machine, drilling all-in-one machine and so on. Highway hydraulic Pile driver with piling positioning, fast movement, high precision, long life, fuel-saving environmental protection, is a new type of expressway anti-guardrail equipment. We are committed to providing customers with high-quality product quality and service attitude, customer satisfaction is our goal.

Hydraulic Pile Driver

Engine model: Weicai 6105

Engine rated power 92KW

Rated Speed:2300r/m

Max output torque:4500n/m

Hydraulic system flow:40-65ml/r

Hydraulic rated pressure: 16Mpa

Drive system: 4 wheel drive

Max turing radius: 5000mm

Screw type air pressure: 0.8Mpa

Screw type air comsuption: 10m3/min

Drill bit sliding extra route: 380mm

Hydraulic hammer sliding extra route: 500mm

Dedusting system: suction type

Air compressor method: screw type

Air compressor model: 8-10

Max working slope: 35 degree

Cab configuration: luxury

Tire Spec: 20.5/70-16

Brake configuration: Disc + automatically air-cut brake

Drilling diameter: 120-200mm

Drilling depth:0-2100mm

Drilling capacity: 320holes/day

Hydraulic hammer weight: 220kg

Hydraulic hammer impact frequency: 500-900Hz

Hydraulic hammer working flow:60-100l/min

Working pressure of hydraulic hammer: 13-16Mpa

Max forward angular of frame: 12 degree

Max backwards angular of frame: 16 degree

Astern display: equipped

Emission Standard: China III

Total weight: 5200kgs

Dimension(L*W*H): 5050*2310*3180mm Warranty: 1 year

Pre-sales Service

* Inquiry and consulting support.

*Sample testing support.

*View our factory.

*Training how to install the machine, how to use the machine.

CHONGQING Honggong Construction MACHINERY Co.,ltd specializes in the design, production and sale of highway guardrail Pile extractor, Automatic Pile Driver, multi- Functional Highway Guardrail Pile Driver, Drum Type mobile Concrete Mixer, mobile Concrete Mixer,Wheel Loader and other series of equipment, at the lowest and most affordable price to sell, welcome to come to negotiate.
