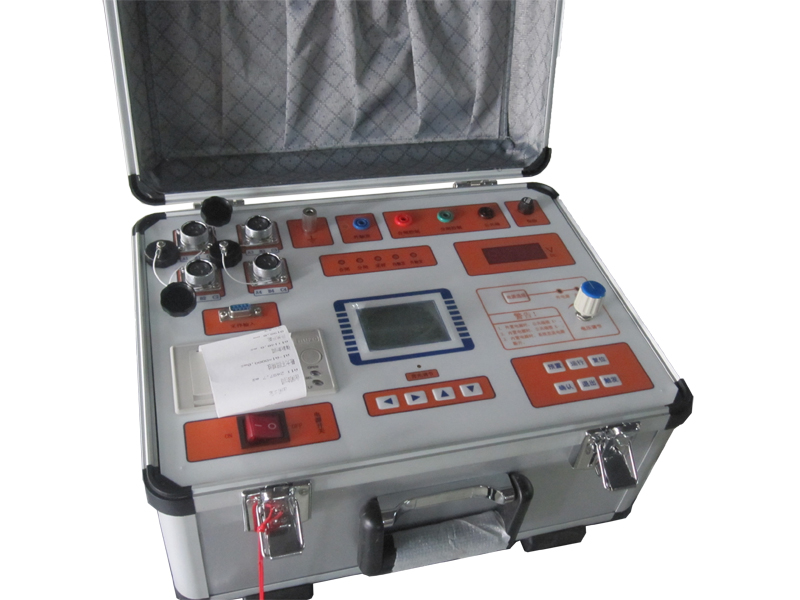

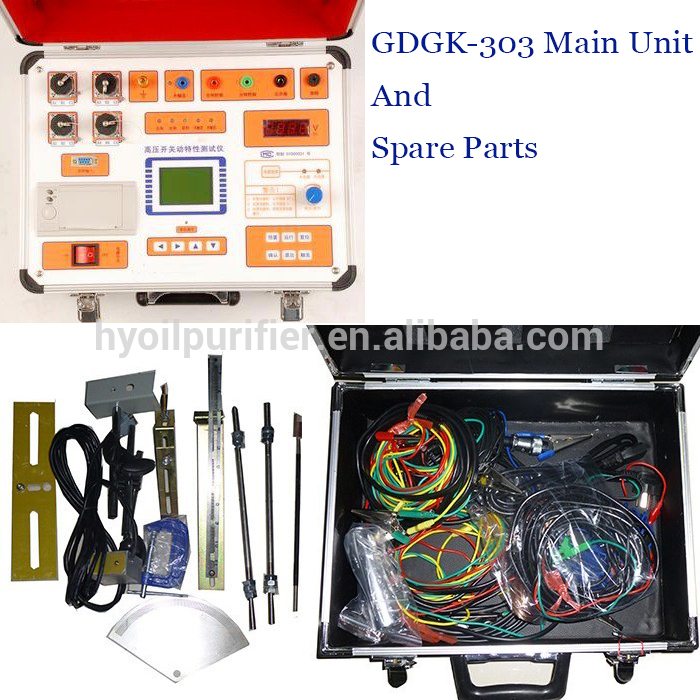

GDGK-303 High Voltage Vacuum Circuit Breaker Testing Equipment
Introduction:
GDGK-303High Voltage Vacuum Circuit Breaker Testing Equipment is designed to meet the need of testing high voltage switches.
It takes the micro controller unit(MCU) for core to sample, process and then output;
It
has many advantages such as intelligence, muti-function, accurate data,
strong anti-jamming, easy operation, small size, beautiful appearance,
etc;
It can test the switches as follows:indoors or outdoors
switches with less oil or more oil,vacuum switches, SF6 switches and so
on.
Features:
1, Closing and opening time measurement of 12 channels
2, Max difference of closing or opening time measurement of three phases
3, Bounce time and frequency measurement of breaker closing
4, Circuit breaker closing and opening speed measurement
5, Travel-time, Coil current-time curve of circuit breaker operation measurement
6, Clearance of circuit breaker measurement
7, Variable DC circuit breaker operation power supply
8, Print test results by internal micro printers
Technical index:
1, Time measurement range: 6000ms, resolution 0.1ms
2, Time measurement error: <1%RDG+0.2ms
3, Speed measurement:
4, Range 2m/s resolution 0.01m/s max error<0.1m/s
5, Range 20m/s resolution 0.01m/s max error<0.2m/s
6, Travel measurement: Range 250.0mmresolution 1mmmax error 1mm
7, DC Power out: DC30V~250V/10A (instantaneous)
8, Travel sensors configuration: grating and angle
9, Test standard: IEC62271
10,LCD: 128*64
11,Power supply: AC220V±10% 50Hz/60Hz
12,Temperature: 0~50°C humidity: <85%
