Transformer Insulating Oil Breakdown Voltage BDV Tester

In power system,railway system and large petrochemical factories and mines,enterprises have a lot  of electrical equipment,its internal insulation are mostly oil filled insulation type,dielectric strength of the insulating oil is a routine test shall be measured.

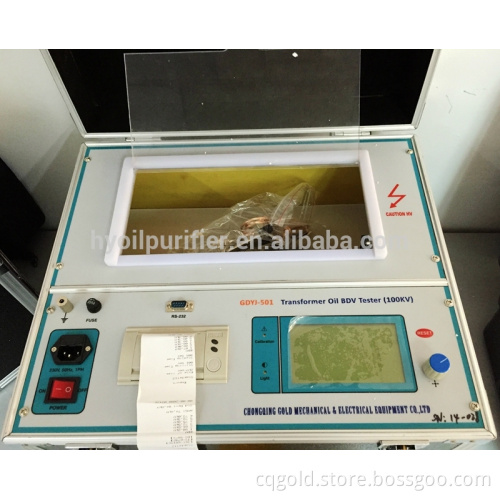

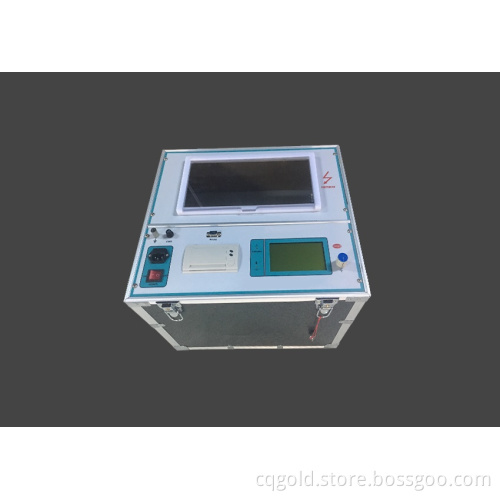

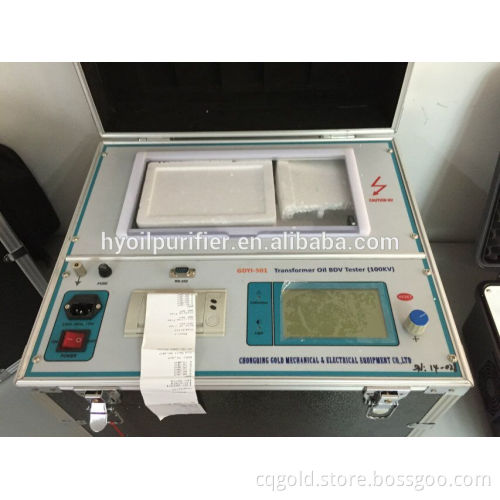

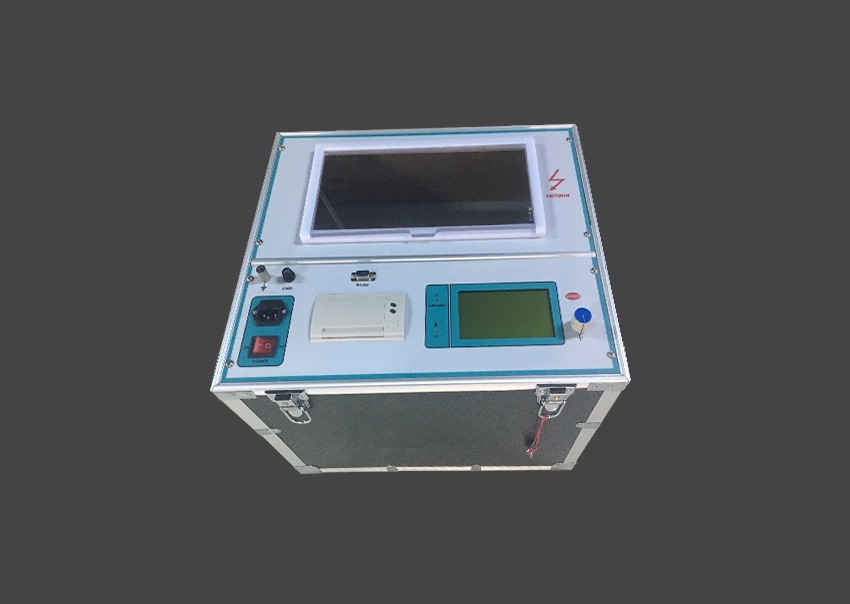

GDYJ-501Transformer Insulating Oil Breakdown Voltage  BDV Tester is mainly test the Breakdown Voltage of those insulating oil.

Standard: IEC60156

 Transformer oil dielectric strength tester functions:

1 .Breakdown test of user-defined
2 .Proof test
3 .Calibration interface for customers
4 .Uploading data to PC and making word report automatically.
5 .Result print

1. Output voltage: AC 0~80KV
2 .Rate of voltage rise: 2KV/s±10%
3 .Measuring precision: 3%RDG+0.3%FS
4 .Test times setting: 1-9
5 .Mixing time setting: 0~99 second

    Waiting time setting: 0-9 minute 59second
6 .Maximum storage capacity: 100 groups of test data
7 .Display: 256*128 LCD
8 .Rated power supply: AC 220V±10% 50Hz/60Hz
9 .Environment temperatures: 0-50°C

10.Relative humidity ≤80%RH
