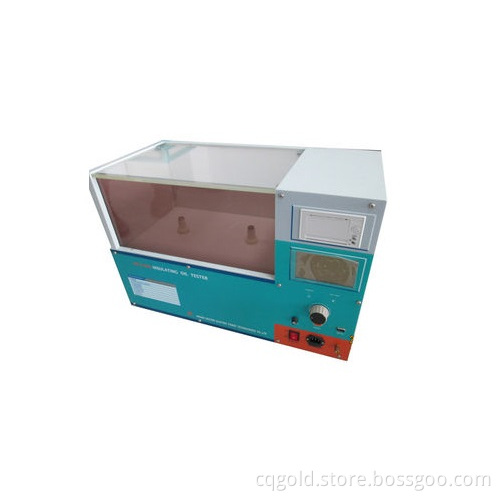

Transformer Insulating Oil Dielectric Strength BDV Tester

Introduction:

1.It is developed according to the national standard GB86 Insulating Oil Dielectric Strength Testing Method.

2.LCD screen can display test procedure and test result.

3.All the human interaction operations complete by the rotating mouse .

4.It is very easy for customers to measure the breakdown voltage of all kinds of oil by GDYJ-502 Oil Breakdown Voltage Tester.

5.You can print the test result by the micro printer internal the tester and upload the test data to PC from RS232 for data analyzing.

6.The special circuit design makes the tester has a good performance at stability and anti-noise.

Features:

1. Breakdown test of user-defined

2. Proof test

3. IEC156/IS6792/BS5874/ ASTM D1816 /ASTM D877 standard test

4. 5 minutes standard test

5. Manual test

6. Calibration interface for customers

7. Unloading data to PC and making word report automatically

8. Result print

Technical index:

    1. AC220V input

    2. Output voltage: AC 0V~100KV

    3. Rate of voltage rise: 0.5kv/s± 5%, 2kv/s± 5%, 3kv/s± 5%, 5kv/s± 5%

    4. Max test times: 9

    5.Stir time: 0~999s

    6. Wait time: 0~999s

    7. Test error: 3% max in the range of 10kv~100kv

    8. Weight: 41kg

    9. Size: 630 mm*400mm*330mm

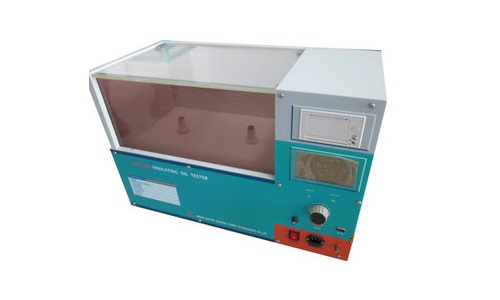

Real Picture

Our company has become one of the leading manufacturer of petroleum testing instrument and electrical testing instrument since 2009s`.

We have developed sales channels in many countries such as Malaysia,India,Germany,USA,Mexico,Saudi Arabia,South Africa and other countries worldwide. and we have gained great advantage and high reputation in international market.

We are making effort to develop together with customers from both domestic and abroad on the basis of reciprocity.Client,quality and service are our supreme target.

Pre-sale Service:

• Inquiry will be replied within 24 hours.
• Welcome to visit our factory.
• Technical datas and operation manual sent for evaluation.


After-sale Service:

• Training how to instal the machine, training how to use the machine at our factory;
• Engineers available to service machinery overseas at customers' cost
