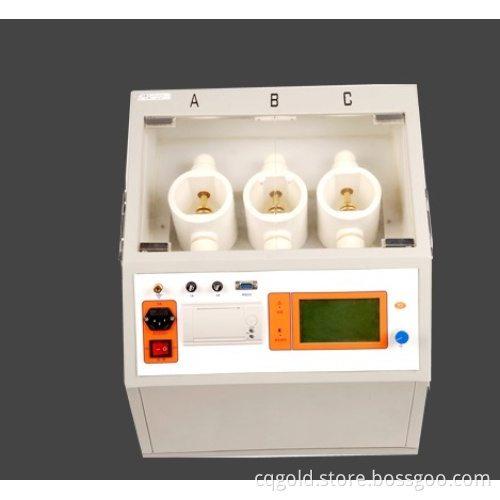

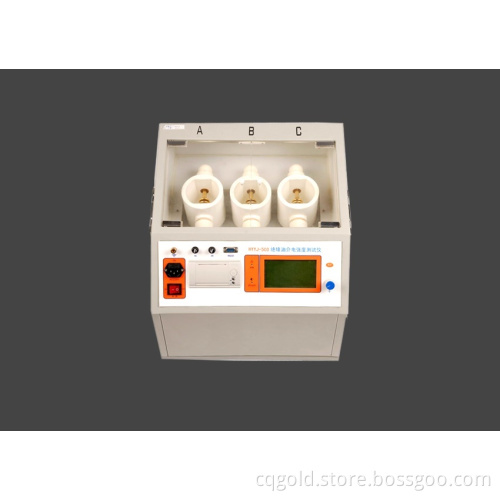

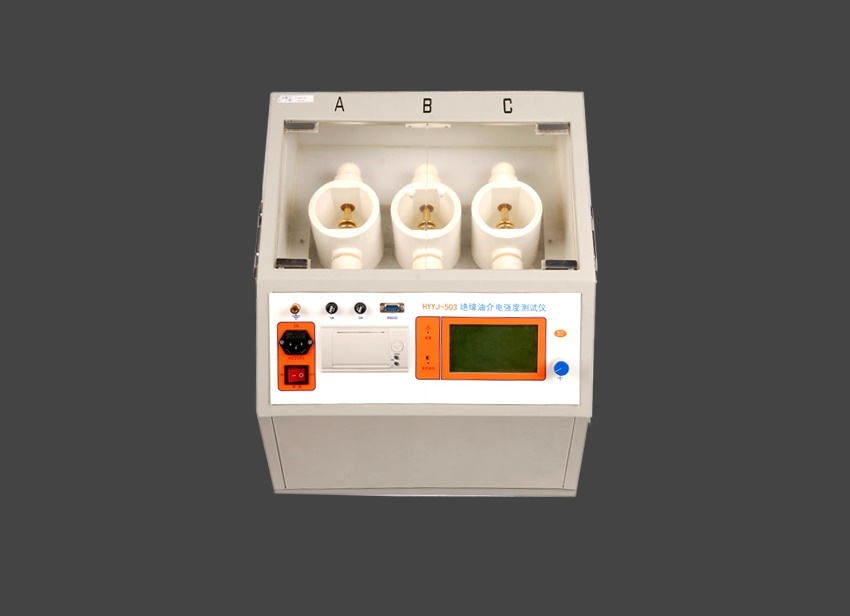

GDYJ-503 Automatic 3-cup Transformer Insulating Oil Dielectric Strength Breakdown Voltage Tester

Introduction:

GDYJ-503 Automatic 3-cup Insulating Oil Dielectric Strength Breakdown Voltage Tester can test three cups of oil at the same time.LCD screen can display test procedure and test result. All the human interaction operations complete by the rotating mouse .
GDYJ-503 Automatic 3-cup Insulating Oil Dielectric Strength Breakdown Voltage Tester is very easy for customers to measure the breakdown voltage of all kinds of oil. You can print the test result by the micro printer internal the tester. Of course, you can upload the test data to PC from RS232 for data analyzing. The special circuit design makes the tester has a good performance at stability and anti-noise.

Functions:

1	Breakdown test of user-defined
2	Proof test
3	Calibration interface for customers
4	Uploading data to PC and making word report automatically.
5	Result print

Index:

1	Output voltage	AC 0~80KV
2	Feature	Three vessels test at the same time
3	Rate of voltage rise	2KV/s±10%
4	Test error	3%RDG+0.3%FS
5	Test times setting	1-6
6	Mixing time setting	0~99 second
7	Waiting time setting	0-9 minute 59second
8	Maximum storage capacity	50 groups of test data
9	Test standards	IEC60156
10	Display	256*128 LCD
11	Input voltage	AC 220V±10% 50Hz/60Hz
12	Environment temperature	0-50°C
13	Relative humidity	≤80%RH
14	Size	420mm×380mm×410mm
15	Weight	28kg

More Insulating Oil Dielectric Strength Breakdown Voltage Testers

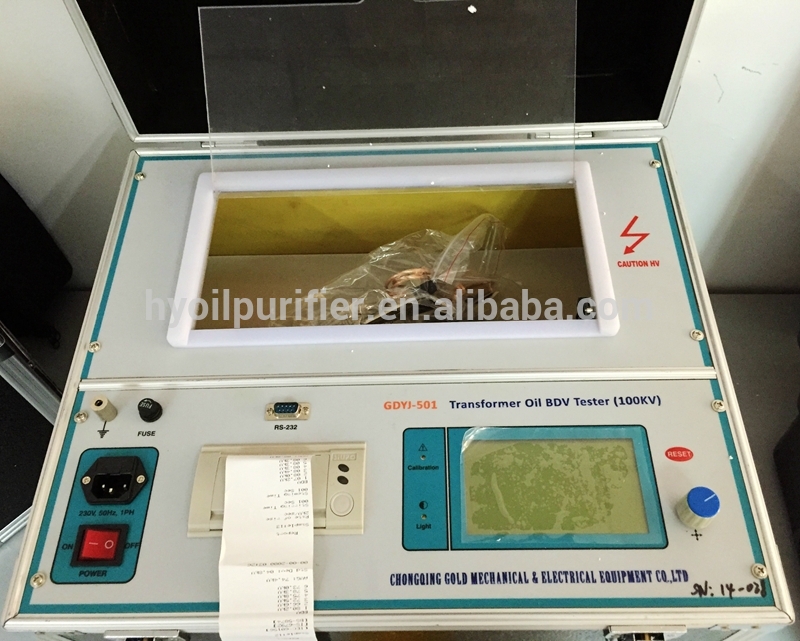

GDYJ-501 Insulating Oil Dielectric Strength Breakdown Voltage Tester
