High-Vacuum Turbine Oil Filtration Equipment Lube Oil Purifier
- Payment Type:
- L/C, T/T, D/P, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CFR, CIF, FCA, CPT
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 20-40 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Chongqing, Shanghai, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Chongqing China |
|---|---|
| Payment Type: | L/C,T/T,D/P,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CFR,CIF,FCA,CPT |
| Certificate: | CE ISO |
| Transportation: | Ocean,Land,Air |
| Port: | Chongqing,Shanghai,Shenzhen |

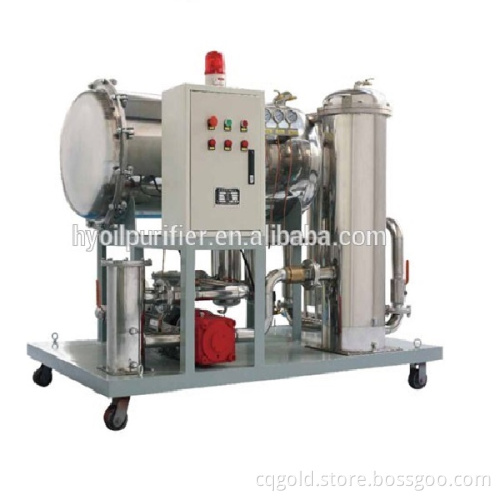

JT High-Vacuum Turbine Oil Filtration Equipment Lube Oil Purifier
Product introduction:
- JT High Vacuum Turbine Oil Filtering Machine Lube Oil Purifier is made of a hydrophilic coalescing element and a hydrophobic dehydration element which are configured and optimized in a certain proportion.
- According to the different physical effects of the water in the oil, the free water drops with big diameters when passing the coalescing element.
- The dehydration element will then separate the water drops, which will be automatically drained out after sinking in the water holder. The oil and water will thus be separated.
- Combining automatic emulsion splitting, high-efficiency dehydration and precise filtering, the filter can effectively filter out the water and impurities in the oil.
- The product is suitable for the online automatic operation of various light oil system, turbine oil systems and lubricating systems.
- It has obvious effects on the online operation of leakage sets.
Features :
JT High Vacuum Turbine Oil Filtering Machine Lube Oil Purifier
6. Multilayer filtration including coarse filter,protecting filter,nice filer are all imported from Europe and U.S.A. The effect of control impurities is excellent.
Parameters :
JT High Vacuum Turbine Oil Filtering Machine Lube Oil Purifier
|
Item |
Parameter |
Type Unit |
JT-50 |
JT-100 |
JT-150 |
JT-200 |
|
|
Technical Parameter |
Flow Rate |
L/MIN |
50 |
100 |
150 |
200 |
|
|
Working Pressure |
Mpa |
≤0.5 |
|||||
|
Temperature Range |
°C |
45-65 |
|||||
|
Power Supply |
50Hz 380V 3-Phase 4-Wire (or as requested) |
||||||
|
Total Power |
KW |
1.5 |
3 |
||||
|
Inlet/Outlet Diameter |
mm |
32 |
38 |
45 |
50 |
||
|
Size |
Length |
mm |
1500 |
1500 |
1600 |
1650 |
|
|
Width |
mm |
1000 |
1050 |
1200 |
1250 |
||
|
Height |
mm |
1400 |
1400 |
1500 |
1600 |
||
|
Weight |
Kg |
450 |
500 |
600 |
700 |
||
|
Oil Treatment Index |
Water Content |
ppm |
≤100 |
||||
|
Kinematic Viscosity |
mm2/s |
≤20% in comparison to the original bias value of new oil |
|||||
|
Demulsibility |
min |
≤15 |
|||||
|
Filtering Accuracy |
µm |
≤5 |
|||||
|
Cleanness |
NAS |
Grade 5-8 |
|||||
|
Oil Appearance |
Transparence |
||||||
Packing and Shipping:
Our Services:
1. The warranty period is 12 months.
2. We supply repairing parts for product's life time long and technical instruction.( free within the warranty period and charge beyond warranty period).
3.All our products have been run well and have been adjusted to good state before go to market. Operator only need to do as the instruction manual by pulling the buttons and add right amount of additives. If some parts broken, operator just need to remove bolts and change new. Please note: the operation and repair is very simple.
4. When the machine send to your company . You can arrange your engineer to our company to learn operate the machine . We will arrange our engineer to teach your company engineer to operate the whole machine . You only need to pay your engineer to China the air tickets fee , hotel fee and food , It is ok !
5. We also can arrange our engineer to your country. You need to pay the air tickets fee , hotel fee ,food.
