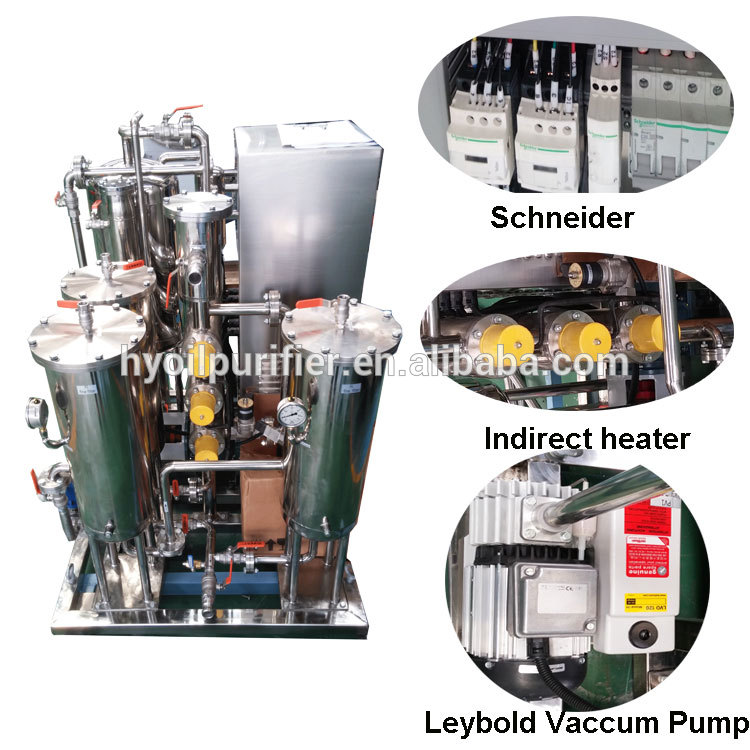

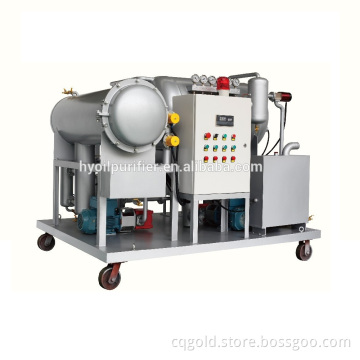

KYJ Vacuum Dehydration Type Fire-Resistant Oil Purifier
Product introduction:
KYJ Vacuum Dehydration Type Fire-Resistant Oil Purifier is especially designed for fire-resistant oil with suitable material for vacuum dehydration, particles-removal and acid-reduction. For customer choice, we also have a simple type to purify fire-resistant oil: KYJ-I high precision oil filtration. It has simple structure with multi-stage filters to remove particles to NAS grade 5. This machine almost could not remove water. It is suitable for customer who cares about cleanness but does not care about water content.
Features:
1. The tank and pipelines where fire-resistant oil going through are all made of stainless steel.
2. Dehydrate by vacuum distillation, water content less than 100ppm.
3. Oil-input and oil-output keep balance by photoelectric switch which is sensitive and accurate to monitor oil level in the tank, stop inputting oil when level marked high and keep inputting oil when low. Therefore, all series of YUNENG brand oil filtration machines never spray oil.
4. We use filters which designed only for fire-resistant oil to remove particles. Cleanness up to NAS grade 5.
5. There is system with absorbent to solve acid problem.
6. After treatment, the important index-resistivity up to ≥ 6 x 109.
7. Good appearance, compact structure and easy operation.
Parameters :
| Item | Parameter |
Type Unit |
KYJ-10 | KYJ-20 | KYJ-30 | KYJ-50 | |
|
Technical Parameter |
Flow Rate | L/MIN | 10 | 20 | 30 | 50 | |
| Working Vacuity | Mpa | -0.07~-0.09 | |||||
| Working pressure | Mpa | ≤0.5 | |||||
| Temperature Range | °C | 45-65 | |||||
| Power Supply | 50Hz 380V 3-Phase 4-Wire (or as requested) | ||||||
| Total Power | KW | 10 | 12 | 13.5 | 33 | ||
| Inlet/Outlet Diameter | mm | 20/20 | 25/25 | 32/32 | 48/48 | ||
| Size | Length | mm | 1300 | 1300 | 1300 | 1600 | |
| Width | mm | 900 | 900 | 900 | 1200 | ||
| Height | mm | 1500 | 1500 | 1500 | 2000 | ||
| Weight | Kg | 370 | 385 | 395 | 500 | ||
|
Oil Treatment Index |
Water Content | ppm | ≤50 | ||||
| Filtering Accuracy | µm | ≤1 | |||||
| Cleanness | NAS | Grade 5 | |||||
| Acid Value | Mg KOH/g | ≤0.03 | |||||
| Resistivity | ohm.cm | ≥5x109 | |||||

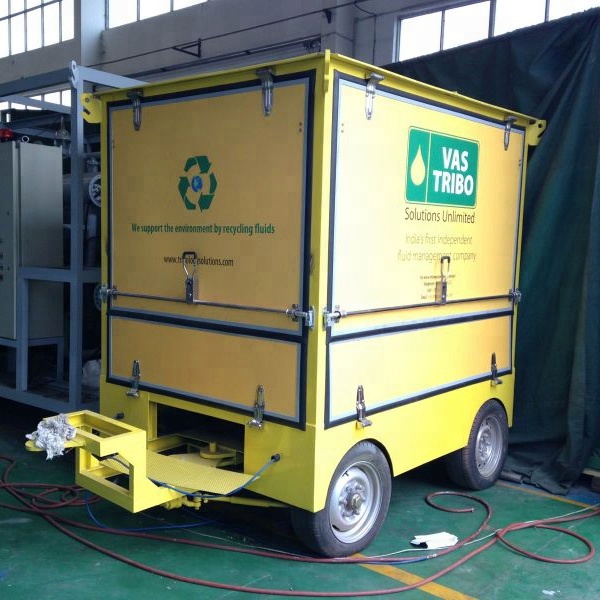

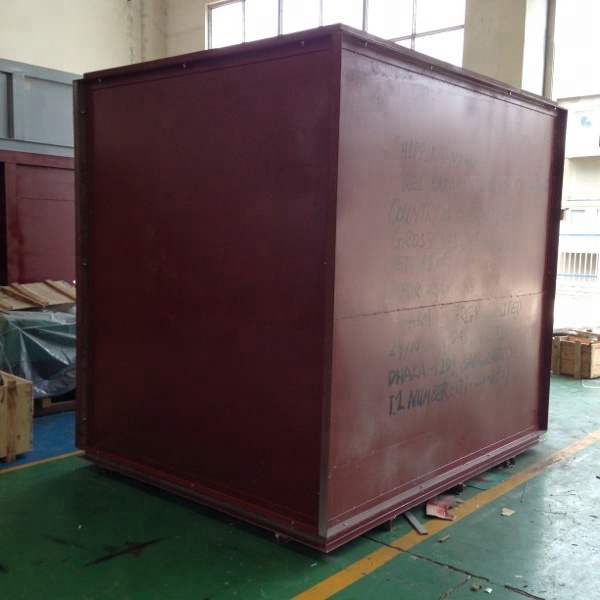

Packing and Shipping:
Our Services:
1. The warranty period is 12 months.
2. We supply repairing parts for product's life time long and technical instruction.( free within the warranty period and charge beyond warranty period).
3.All our products have been run well and have been adjusted to good state before go to market. Operator only need to do as the instruction manual by pulling the buttons and add right amount of additives. If some parts broken, operator just need to remove bolts and change new. Please note: the operation and repair is very simple.
4. When the machine send to your company . You can arrange your engineer to our company to learn operate the machine . We will arrange our engineer to teach your company engineer to operate the whole machine . You only need to pay your engineer to China the air tickets fee , hotel fee and food , It is ok !
5. We also can arrange our engineer to your country. You need to pay the air tickets fee , hotel fee ,food.
Related Keywords
-

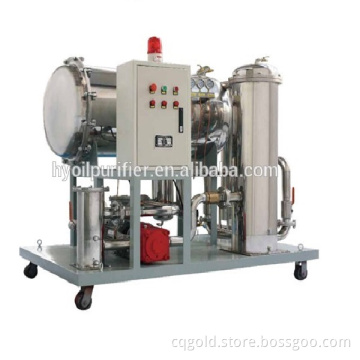

High-Vacuum Turbine Oil Filtration Equipment Lube Oil Purifier
Double-stage High Vacuum used Transformer Oil Filtration Machine

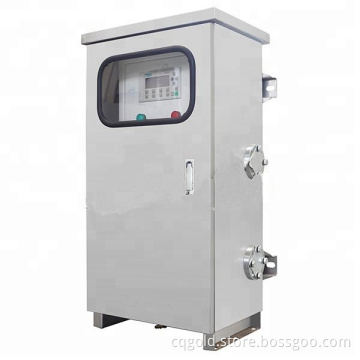

Online Transformer On-Load Tap-Changer OLTC Oil Purifier

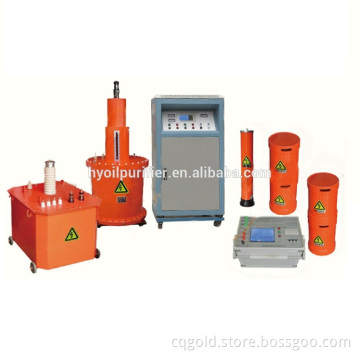

Frequency Adjustable AC Generator Resonance Test System

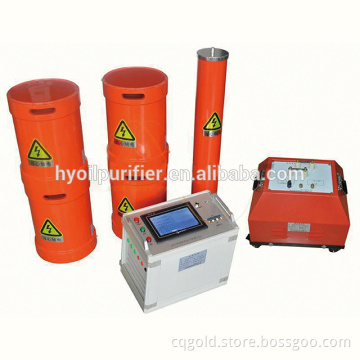

Voltage Adjustable AC Resonance Test system for Cables
