High Current Generator Instrument Primary Injection Test set

High Current Generator Instrument Primary Injection Test set

Get Latest Price

Payment Type:: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Incoterm:: FOB

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 10 Days

Transportation:: Ocean, Land, Air

Port:: Chongqing, Shanghai, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Chongqing China
Payment Type:	L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm:	FOB
Certificate:	CE ISO
HS Code:	9030849000
Transportation:	Ocean,Land,Air
Port:	Chongqing,Shanghai,Shenzhen

Product Description

Product Application

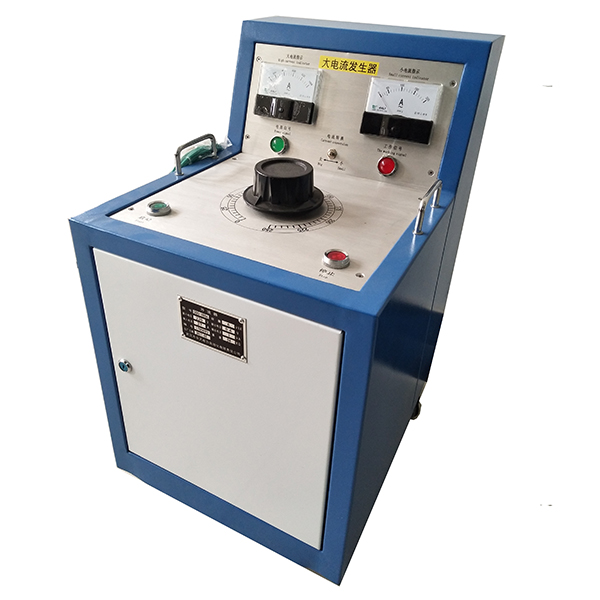

SLQ series 5kA to 25kA Large Current Generator for Testing Switch and Transformer is a sort of special equipment designed and manufactured for experimentation of electrics of power business as well as industrial and mining enterprises, and which is applicable to testing on current load and temperature increase of various switches, current transformers and other electric equipment.
Separated/integral structure is adopted for this series of converter in light of different volume and weight, in addition, it`s characterized as polar-less adjustment of output current, stable increase of current, large scope of load variation,reliable function, easy and safe operation and etc.
Thus, it`s ideal to adopt as current source equipment for current/temperature increase of industrial and mining equipment.

Slq Series 500a To 10ka Primary Current Injection Tester 02

Parameters

Environment temperature: 0~50°C
Humidity: ≤85%RH
The capacity and maximum current output could be customized according to the requirements of customer if you can not find the right one in this table.

Type	Rating capacity		Rating input of converter		Rating output of converter		Impedance voltage	Idle current
Type	Booster	Converter	Current	Voltage	Current	Voltage	Impedance voltage	Idle current
SLQ-3/500	3KVA	3KVA	13.6A	220V	0.5KA	6V	＞8%	>6%
SLQ -5/1000	5KVA	5KVA	22.7A	220V	1KA	5V		>6%
SLQ -15/1000	15KVA	15KVA	68.2	220V	1KA	15V	＞8%	>6%
SLQ-10/2000	10KVA	10KVA	45.5	220V	2KA	5V	＞8%	>6%
SLQ -15/3000	15KVA	15KVA	68.2	220V	3KA	5V	>8%	>6%
SLQ -20/4000	20KVA	20KVA	50	400V	4KA	5V	＞8%	>6%
SLQ -30/5000	30KVA	30KVA	75	400V	5KA	6V	＞8%	>6%
SLQ -28/7000	28KVA	28KVA	70	400V	7KA	4V	＞8%	>6%
SLQ -150/25000	150KVA	150KVA	375	400V	25KA	6V	＞8%	>6%

Packing & Delivery

Packing (SLQ -5/1000)
Size	430420630mm
Weight	52kg
Packing details	The normal package is standard wooden boxes(size:430420630). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
