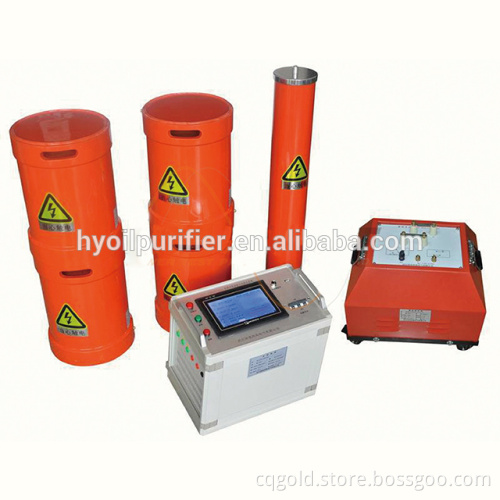

GDTF-HVC Voltage Adjustable Series AC Resonance Test System for Cables
GDTF-HVC AC Resonant Test System for Cables are composed of frequency/voltage adjustment power,exciting transformers, reactors, capacitive divider. The power frequency can be adjustable,which make the reactor and tested capacitor resonance.
AC Resonant Test System for Cables
1. Rated output voltage: 0 - 66kV(effective value) or below.
2. Output frequency: 20 -300Hz.
3. Resonant voltage waveform: sine wave, THD ≤ 1%.
4. Full load working time: continuous working time 60mins.
5. Quality factor: max. load ≥ 20.
6. Frequency adjustment: fineness 0.1Hz, instability ≤ 0.01%.
7. Power supply: 220V or 380V single-phase.
AC Resonant Test System for Cables
| GDTF-44/22 | GDTF-132/22 | ||
| Input voltage (V) | 380 | Input voltage (V) | 380 |
| Output voltage (kV) | 0-22 | Output voltage (kV) | 0-60 |
| Capacity (kVA) | 44 | Capacity (kVA) | 132 |
| Application scope | 10kV cable ≤ 1km(300 mm² ) | Application scope | 10kV (300 mm² ) cable 3km |
| Main configurations | 2.5kW Variable frequency source 1 set | 35kV (300 mm² ) cable 1km | |
| 2.5kVA Exciting transformer 1 set | Main configurations | 6kW Variable frequency source 1 set | |
| Reactors 22kV/1A 2 sets | 6kVA Exciting transformer 1 set | ||
| Capacitive divider 25 kV | Reactors 22kV/2A 3 sets | ||
| GDTF- 176/22 | Capacitive divider 60kV | ||
| Input voltage (V) | 380 | GDTF-264/22 | |
| Output voltage (kV) | 0-60 | Input voltage (V) | 380 |
| Capacity (kVA) | 176 | Output voltage (kV) | 0-60 |
| Application scope | 10kV (300 mm² ) cable 4km | Capacity (kVA) | 264 |
| 35kV (300 mm² ) cable 1km | Application scope | 10kV (300 mm² ) cable 6km | |
| Main configurations | 7.5 kW Variable frequency source 1 set | 35kV (300 mm² ) cable 2km | |
| 7.5 kVA Exciting transformer 1 set | Main configurations | 10kW Variable frequency source 1 set | |
| Reactors 22kV/2A 4sets | 10kVA Exciting transformer 1 set | ||
| Capacitive divider 60kV | Reactor 22kV/2A 6 sets | ||
| GDTF-330/22 | Capacitive divider 60kV | ||
| Input voltage (V) | 380 | GDTF-1950/130 | |
| Output voltage (kV) | 0-60 | Input voltage (V) | 380 |
| Capacity (kVA) | 330 | Output voltage (kV) | 0-520 |
| Application scope | 10kV (300 mm² ) cable 8 km | Capacity (kVA) | 1950 |
| 35kV (300 mm² ) cable 2.5 km | Application scope | 110kV cable ≤ 2.5km | |
| 10-35kV switchgear, transformers | 220kv GIS | ||
| Main configurations | 15kW Variable frequency source 1 set | 110kV switchgear,transformers | |
| 15kVA Exciting transformer 1 set | Main configurations | 100kW Variable frequency source 1 set | |
| Reactor 22kV/2.5A 6 sets | 100kVA Exciting transformer 1 set | ||
| Capacitive divider 60kV | Reactor 130kV/3.75A 4sets | ||
| GDTF-1280/ 32 | Capacitive divider 520kV | ||
| Input voltage (V) | 380 | GDTF-3250/130 | |
| Output voltage (kV) | 0-130 | Input voltage (V) | 380 |
| Capacity (kVA) | 1280 | Output voltage (kV) | 0-520 |
| Application scope | 10kV (300 mm² ) cable 20 km | Capacity (kVA) | 3250 |
| 35kv (300 mm² ) cable 8km | Application scope | 110kV cable ≤ 5km | |
| 110kV cable ≤ 2km(400 mm ² ) | 110kV/220kV switchgear | ||
| 35- 110kV GIS | GIS,transformers | ||
| Main configurations | 50kW Variable frequency source 1 set | Main configurations | 150kW Variable frequency source 1 set |
| 50kVA Exciting transformer 1 set | 150kVA Exciting transformer 1 set | ||
| Reactor 32kV/5A 8 sets | Reactor 130kV/6.25A 4sets | ||
| Capacitive divider 130kV | Capacitive divider 520kV | ||
