SF6 Gas Purity and Dew Point Multi-function Tester

SF6 Gas Purity and Dew Point Multi-function Tester

Get Latest Price

Payment Type:: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Incoterm:: FOB

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 10 Days

Transportation:: Ocean, Land, Air

Port:: Chongqing, Shanghai, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Chongqing China
Payment Type:	L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm:	FOB
Certificate:	CE ISO
HS Code:	9030849000
Transportation:	Ocean,Land,Air
Port:	Chongqing,Shanghai,Shenzhen

Product Description

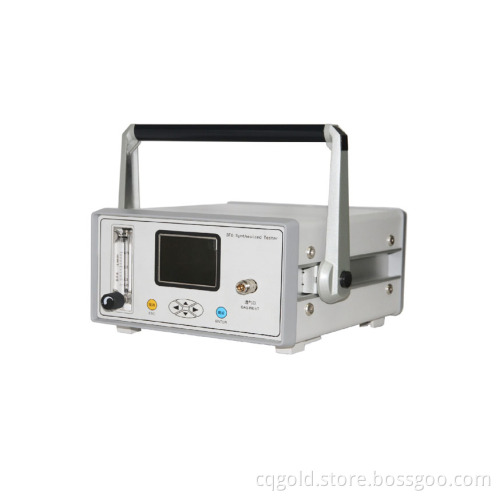

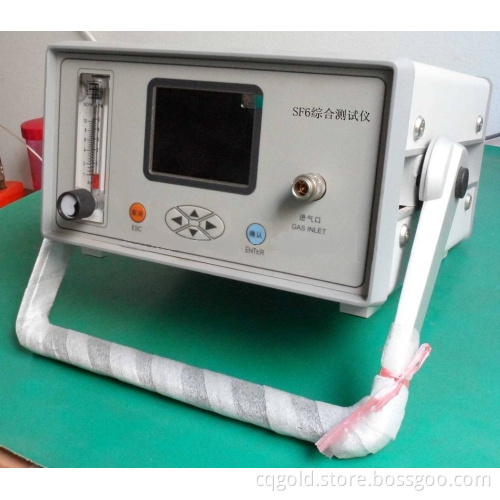

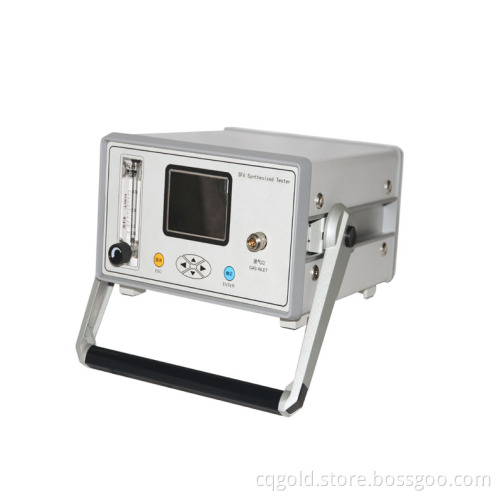

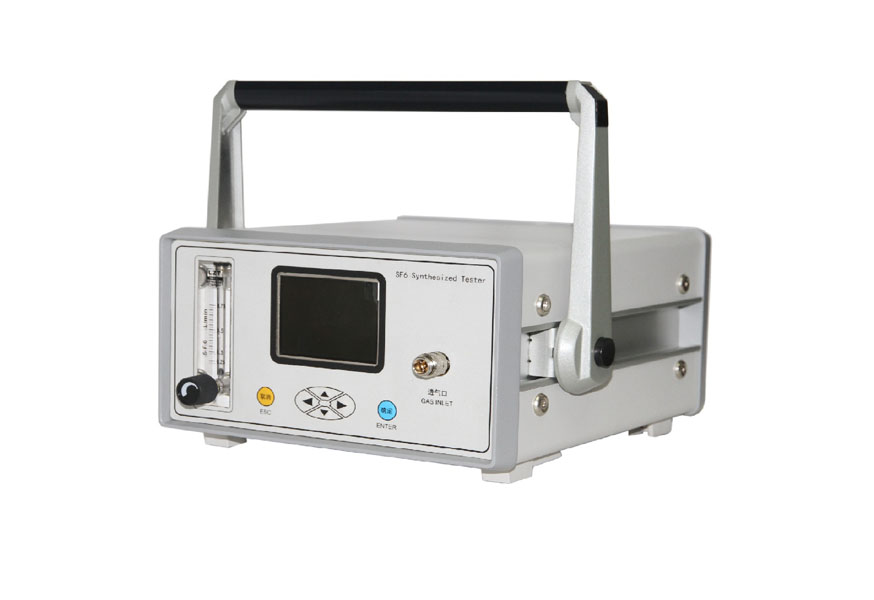

GDZH-2H SF6 Gas Purity and Dew Point Multi-function Tester

Introductions

SF6 Gas tester integrates SF6 micro- water detector, SF6 purity tester, and SF6 decomposition analyzer as one. One time field measurement can complete the three detections, greatly save the gas in the device, which can save 2/3 of gas usage, while reduce the user's workload and improve work efficiency.

Sf6 600

Features

1. Fast and save gas: after startup into the measuring state, the measuring time of dew point is about 5min; the measuring time of SF6 purity and SF6 decomposer is about 2min;
2. Self-lock joint: use the self-lock joint imported from German, safe and reliable, without gas leakage.
3. Data storage: high capacity, can store 200 groups test results at the most.
4. Curve function: Large-screen curve display the process of dewpoint measurement
5. Clearly display: the dew point, micro-water (ppm), SF6 purity, SO2, H2S, CO and HF content, and temperature, humidity, time and date, etc, are displayed by LCD.
6. Built-in power supply: built-in 4Ah chargeable lithium battery, filled one time, can work for 10 hours.

Parameters

Purity	Measuring range:0%~100%
	Accuracy:±0.5%
	Measuring time:< 2min
Dew point	Measuring range:-80℃~+20℃
	Accuracy:±0.5℃(-80℃~-60℃)
	Response time(+20℃)	63% need 5S, 90% need 45S (-60℃~+20℃)
		63% need 10S,90% need 240S (+20℃~-60℃)
H2S	Measuring range:0~200ppm
	The minimum detectable amount:≤0.1ppm
	Accuracy:±0.5%
	Stability:0~200ppm
	Repeatability:≤2%
SO2	Measuring range:0~200ppm
	The minimum detectable amount:≤0.1ppm
	Accuracy:±0.5%
	Stability:0~200ppm
	Repeatability:≤2%
HF(optional)	Measuring range:0~20ppm
	The minimum detectable amount:≤0.01ppm
	Accuracy:±0.5%
	Stability:0~20ppm
	Repeatability:≤2%
CO(optional)	Measuring range:0~1000ppm
	The minimum detectable amount:≤1ppm
	Accuracy:±0.5%
	Stability:0~1000ppm
	Repeatability:≤2%
Temperature	-40℃~+60℃
Humidity	0~100%RH
Power supply	AC 220V
	Built-in rechargeable battery
Battery performance	Charging time : 20 hours ; can work for 10 hours
Weight	5kg
Dimension	250×150×300mm3
Working temperature	-40℃~+80℃

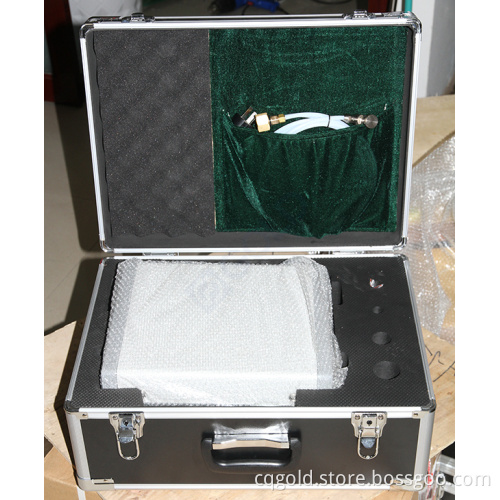

Packing & Delivery
