Secondary Current Injection Relay Protection tester

Secondary Current Injection Relay Protection tester

Get Latest Price

Payment Type:: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Incoterm:: FOB

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 10 Days

Transportation:: Ocean, Land, Air

Port:: Chongqing, Shanghai, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Chongqing China
Payment Type:	L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm:	FOB
Certificate:	CE ISO
HS Code:	9030849000
Transportation:	Ocean,Land,Air
Port:	Chongqing,Shanghai,Shenzhen

Product Description

Introduction:

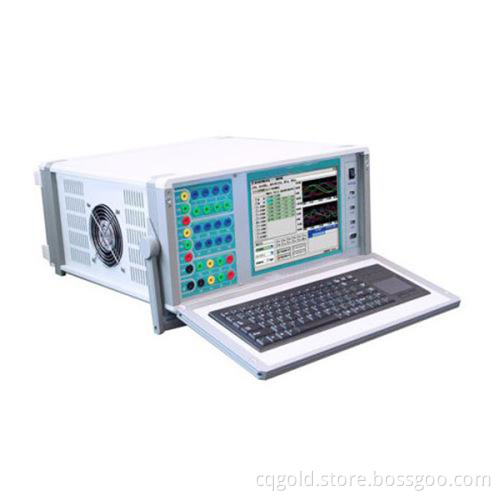

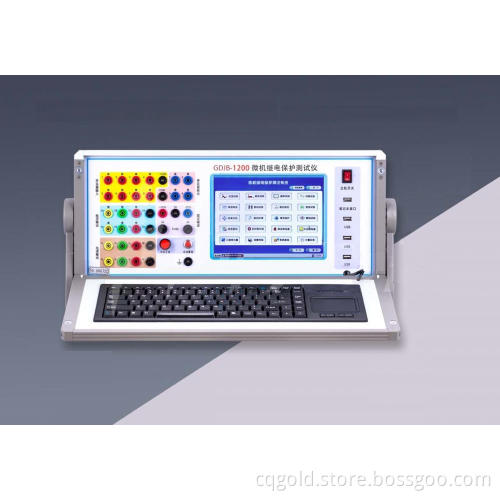

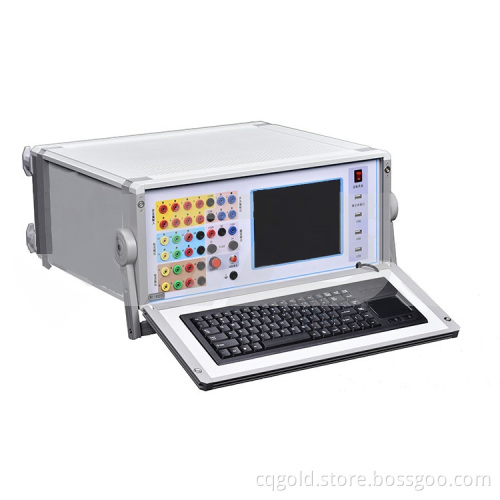

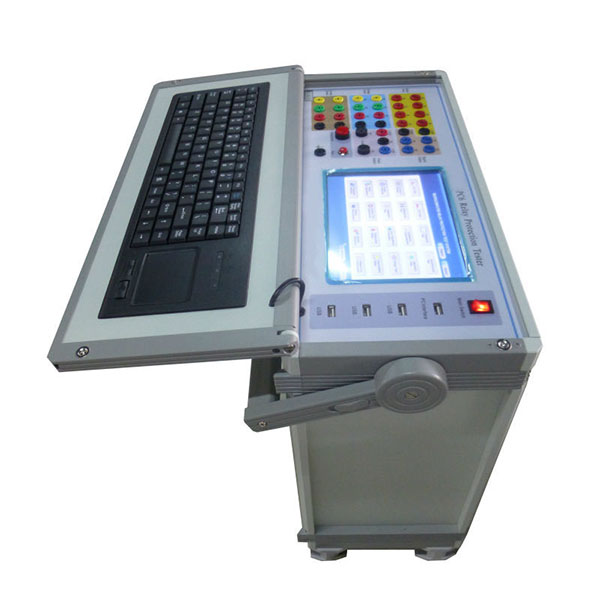

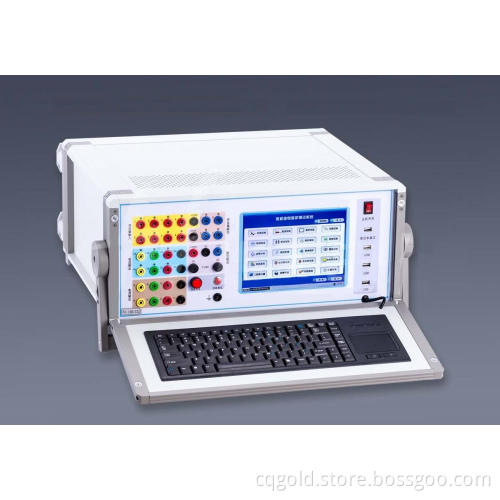

Relay Protection microcomputer test device play a key role in operating electricity power systems reliably and safely.It is the testing device used in professional field of microcomputer protection,relay protection,excitation measurement,fault recorder. Gdjb Pc6 Six Phase Secondary Injection Test Set 01

Features:

1.Embedded host machine, equipped with big programmed CPLD(Complex Programmable Logic Device);
2.12channels D/A output simultaneously in a single machine;
3.High precise linear power amplifier,6 voltage outputs and 6 current outputs.
4.8inch LCD screen display.Provide with keyboard/mouse connecting port,also 2USB port,2 RS232 port,to communicate with PC and other communication devices;
5.Easy to carry,suitable for flexible testing and wild working;
6.Intelligent self-protection;
7.8channels switching value input and 4channels switching value output.Input contact is idle contact and 0-250V potential contact for selectable,intelligent identification;
8.Plentiful Binary and powerful software function;
9.Two groups of DC power supply, 110VDC/1.0A&220VDC/0.6A,no need to set and adjust by software(Optional).

Technical Parameters:

Rated output	Frequency error <±0.01Hz Phase error <±0. 2° Waveform distortion <±0.3% (fundamental wave) Time error <40µs Output frequency 0~1050Hz
Power voltage	Allowable range AC220V±10%, 50Hz±10%
Ambient temperature	Use range 0~45℃ Storage range -25~70℃
Time measurement	Test range 0.1ms~999999.999s
Cabinet dimension	360mm(L)×195mm(W) ×375mm(H)
Cabinet weight	Host machine 16.6kg
