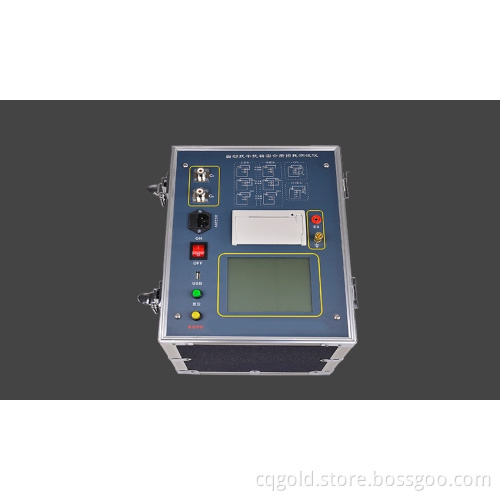

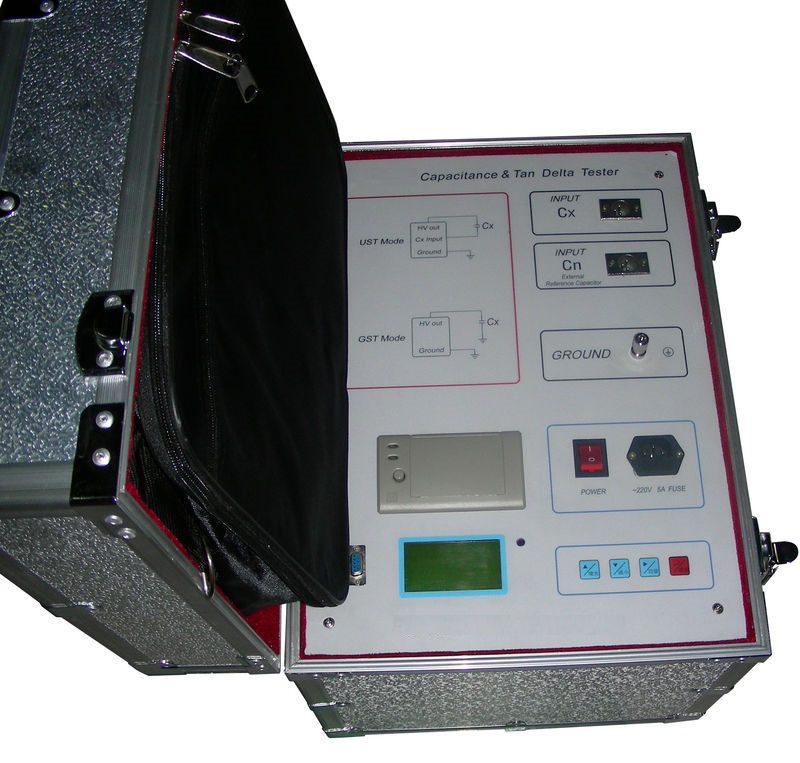

GDGS Transformer Tan Delta and Power Factor Tester

GDGS Automatic 10KV Transformer Tangent Delta Tester is applied to measure the dissipation factor (PF) of insulating materials in heavy interference site such as power plants or power substations. It can also be applied in laboratory for high accurate capacitance and dissipation measurement.
GDGS Automatic 10KV Transformer Tangent Delta Tester is integrated,including precision digital bridge, power unit, internal reference capacitor (CN), booster transformer and other electronic circuits. When started, it's running automatically and then display the results on LCD. Micro printer could be used to prints the results automatically.
Gdgs
Application

The typical application of GDGS Automatic 10KV Transformer Tangent Delta Tester is as follow:
1) Measure capacitance & dissipation for power transformer
2) Measure capacitance & dissipation for high voltage motors
3) Measure capacitance & dissipation for current transformer and voltage transformer
4) Measure capacitance & dissipation for high voltage circuit breakers
5) Measure capacitance & dissipation for insulation bushes

Specifications

Technical Specifications of GDGS Automatic 10KV Transformer Tangent Delta Tester
Standard	IEC60247
Accuracy	Capacitor value measurement:Cx±(reading*1%+1pF) Dielectric dissipation factor:PF±(reading×1%+0.00040)
Interference Ratio	Interference current is no more than 2 times of the test current
Capacitance Range	Internal HV 3pF~60000pF/10kV,60pF~1uF/0.5kV
External HV	3pF~1.5μF/10kV 60pF~30μF/0.5kV
Resolution	0.0001pF, 4 digitals
Input current range	10μA~5A
Internal HV	0.5~10kV/200mA (max),12kV can be customized
CVT low voltage output	3~50V, current 3~30A
HV Adjust	Rise or fall smoothly
HV Accuracy	±(reading×1%+10V) Resolving 100V
Frequency select	50Hz single point, locked 45Hz/55Hz double point, locked
Test Time	40s typical
Power Supply	180V~270V 50Hz/60Hz auto
Operating Temperature	-10ºC~50ºC
Storage Temperature	-20ºC~60ºC
Humidity	<90%
Weight	30kg
