Product Introduction:

GDBC-901 Single Phase Transformer Turns Ratio TTR Tester is designed according IEC76-1 and IEC60044.

GDBC-901 Single Phase Transformer Turns Ratio TTR Tester could be applied to test the turns ratio and group vector of single or three phase transformer.

Also the connection group of three phase transformer could be calculated with the ratio. All parameters are measured in one test for three phase transformer.

Specifications of GDBC-901 Single Phase Transformer Turns Ratio TTR Tester
	Ratio measurement range	1-10000
	Group measurement	1-12
	Phase measurement error	1 degree
	Ratio measurement error	1-2000 ± 0.2%RDG 2000-10000 ± 0.5%RDG
	Test voltage	0~80V, frequency 50Hz
	Power supply	AC220V ± 10%, 50Hz/60Hz
	Environment temperature	0-50°C
	Humidity	≤85%RH
	Size	400mm350mm200 mm
	Weight	7kg

Main Functions:

1) Turns ratio testing: single phase power transformer, three phase power transformer, CT, PT;

2) Phase angle testing:single phase power transformer, three phase power transformer, CT,PT;
3) Polarity testing: single phase power transformer, three phase power transformer, CT, PT;

4) Vector group testing: three phase power transformer;

Detailed Images

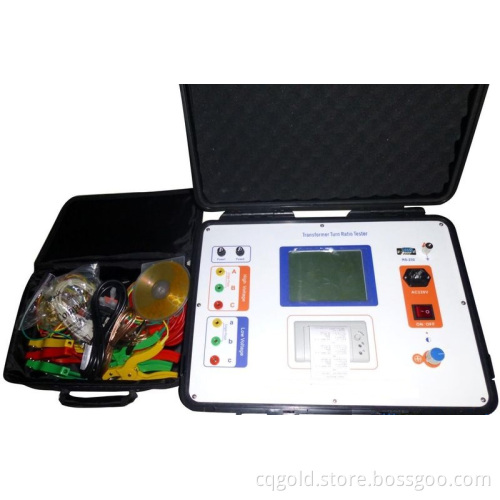

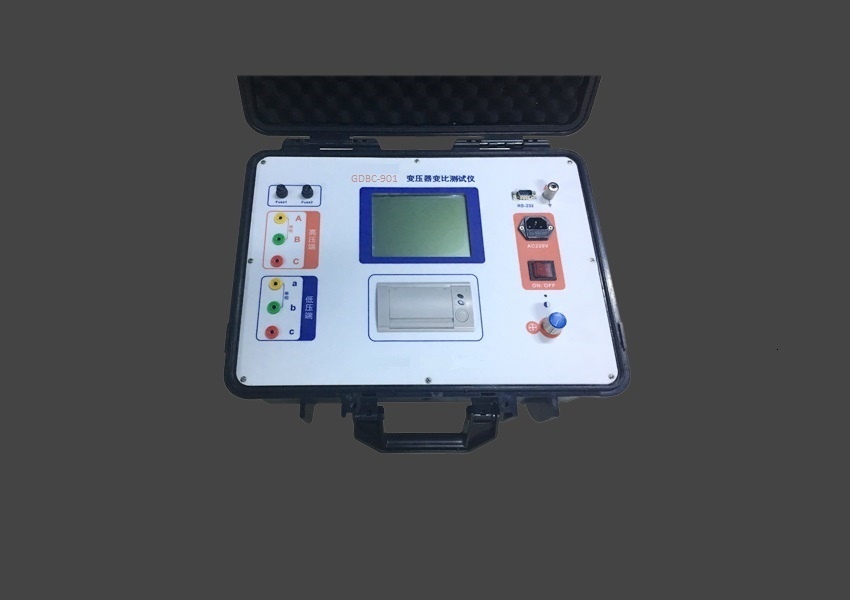

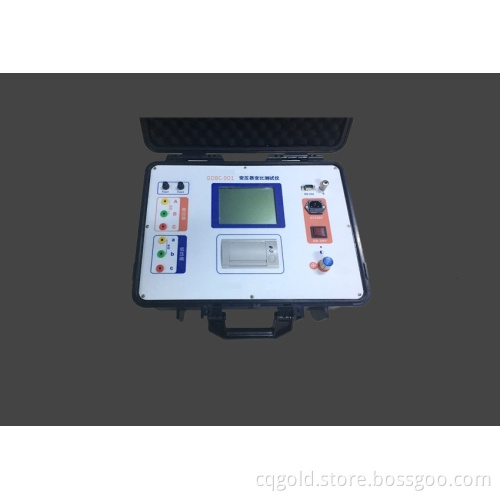

Panel of GDBC-901 TTR Tester

With large LCD display screen;
With printer;
With RS232 interface which can upload test datas to computer;
Easy operation and connection;

Parameters Setting

You only need to input transformer type(CT or PT), Transformer connection method, Tap ratio step and press "start", then test result will come out automatically.

Test result

It shows Ratio, Vector, Tap, Error and Current on the test results.

Accessories of GDBC-901 TTR Tester

The accessories include: high voltage connection cables, low voltage connection cables, grounding cable, power supply cable, software, RS232 cable
