Z Type 3 Phase Transformer Turns Ratio Meter Tester
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Transportation:
- Ocean, Land, Air
- Port:
- Chongqing, Shanghai, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Chongqing China |
|---|---|
| Certificate: | CE ISO |
| Transportation: | Ocean,Land,Air |
| Port: | Chongqing,Shanghai,Shenzhen |

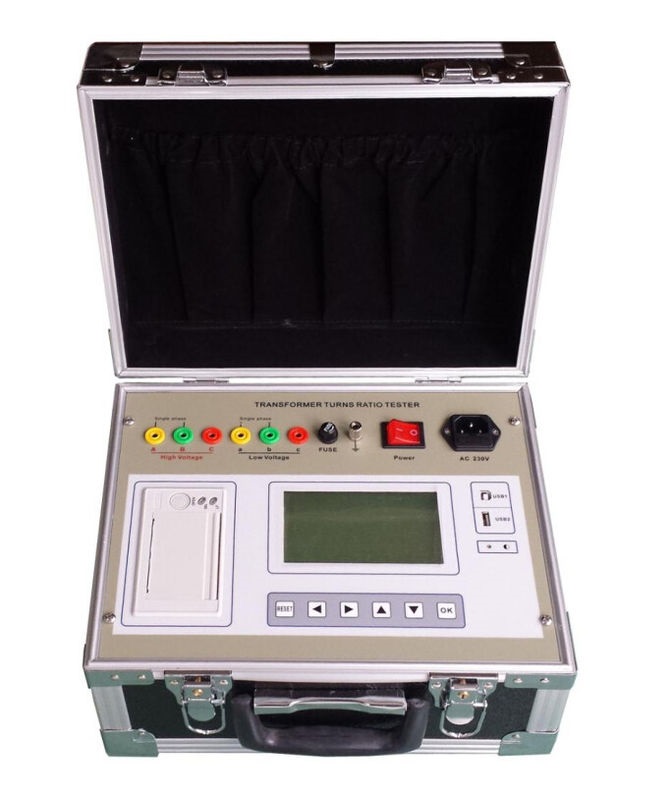

GDB-D Z Type Transformer Turns Ratio Measuring Meter
1.The Tester Has Wide Testing Range, Fast Testing Speed, Favorable Repeatability.
2.Flexible Data Processing, Convenient Connection, Complete Protection.
3.Easy Learning And Convenient Operation
4.Applicable to transformers connected in Z type.
5.Two output voltages are optional and applicable to transformer whose zero-load current is relatively high.
6.Wide testing range and the highest transformation ratio may reach 10000.
7.Automatically calculate tap position.
8.Fast speed, which is only 18 seconds for three-phase.
9.Favorable repeatability.
10.Automatically save 99 data at most.
11.Flexible data processing, including retrieval, print, transfer to U-disk, delete and upload to PC computer for testing.
12.Functions of transformer short-circuit protection and interturn short-circuit.
13.Protection functions. If there is short circuit, relevant information will be displayed on the LCD screen.
14.Small size and light weight.
|
Item Name
|
GDB-D Z Type Transformer Turns Ratio Measuring Meter
|
|
Turns ratio range
|
0.8-10000
|
|
Group testing range
|
1-12
|
|
Turns ratio accuracy
|
0.2% (180V: 0.8~1000)
0.5% (180V: 1000~10000) 0.2%( 0.8~200) |
|
Turns ratio resolution
|
0.0001
|
|
Power input
|
220V±10% 50HZ±1Hz
|
|
Working temperature
|
-20℃~40℃
|
|
Relative humidity
|
≤85% no condensation
|
Exhibition.
Every
year we participate in the various countries of the exhibition, will
recommend our products to the needs of customers around the world.We
have developed sales channels in many countries such as UAE, Saudi
Arabia, Iran, Malaysia, Thailand, Pakistan, India, Germany, Belgium,
USA, Mexico, Kenya, Nigeria, South Africa and other countries worldwide.
And we have gained strong advantage and high reputation in international market..
Company.
Chongqing Gold Mechanical & Electrical Equipment Co.,Ltd is a high-tech enterprise for researching, designing, developing and producing scientific and measuring instruments. With its continuous drawing of lessonas, unremitting innovation and borrowing of advanced technology from both at home and abroad, our company is now becoming a professional manufacture of oil tester,electric tester,laboratory instrument,road building instrument and geophysical equipment.
Service.
2. after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
